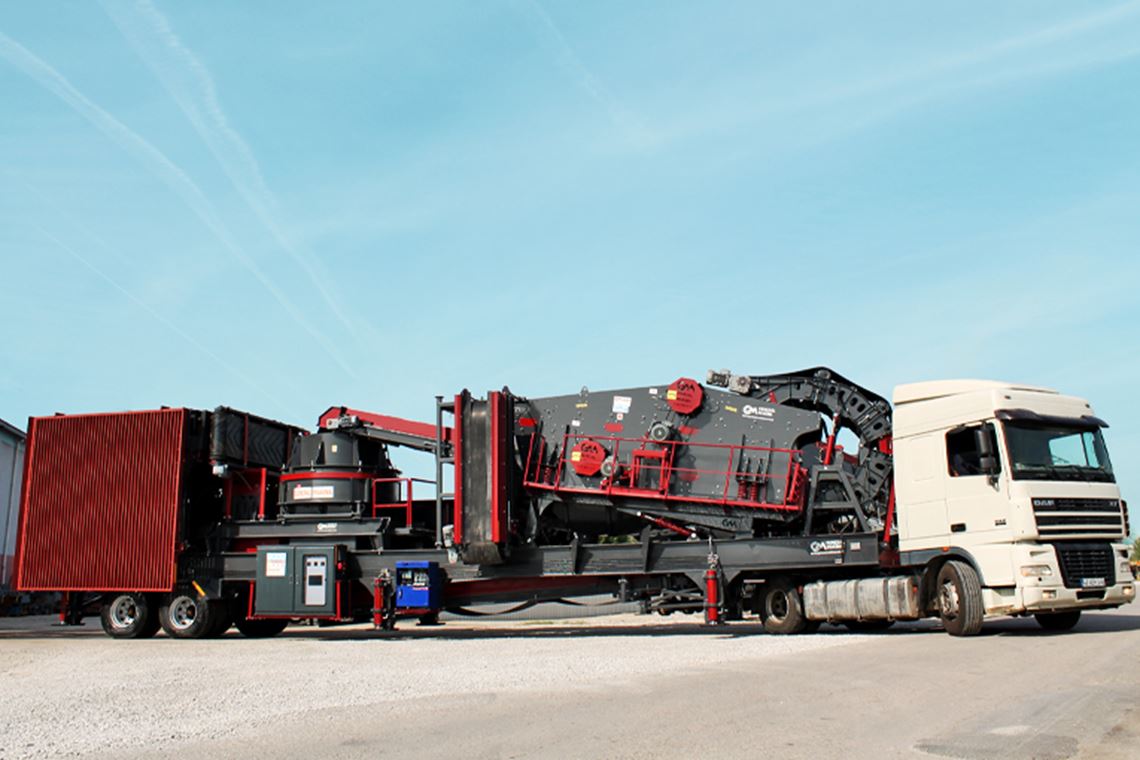

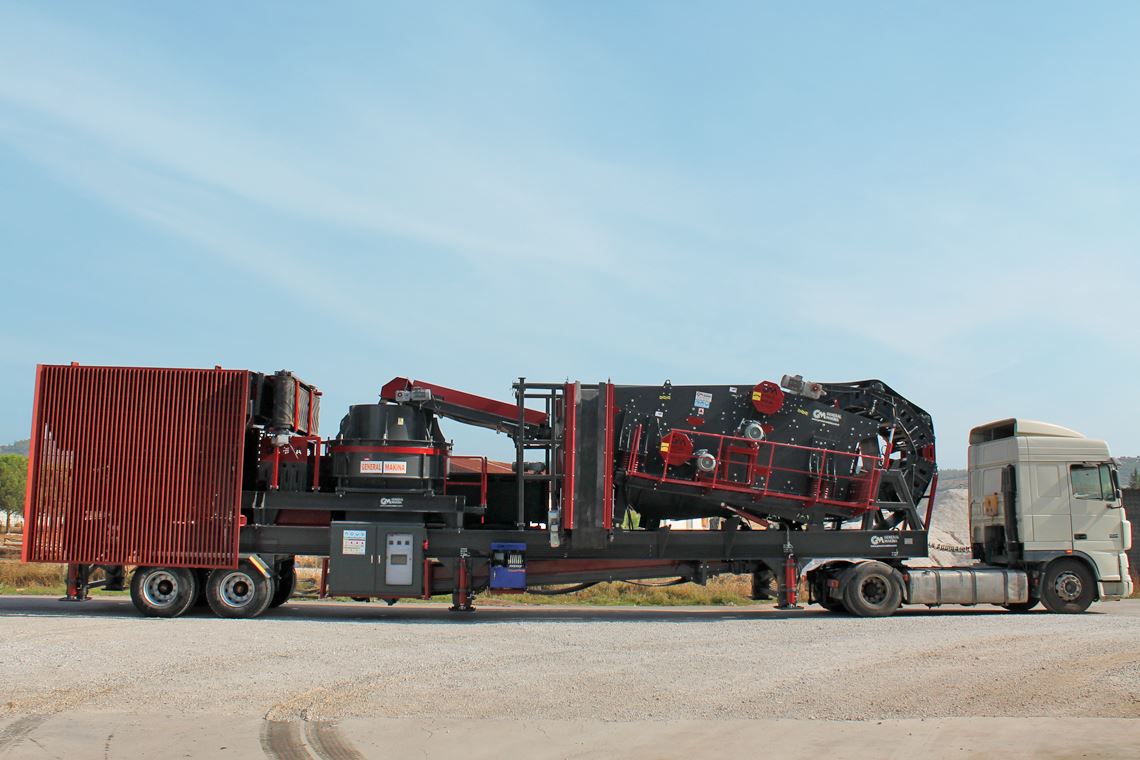

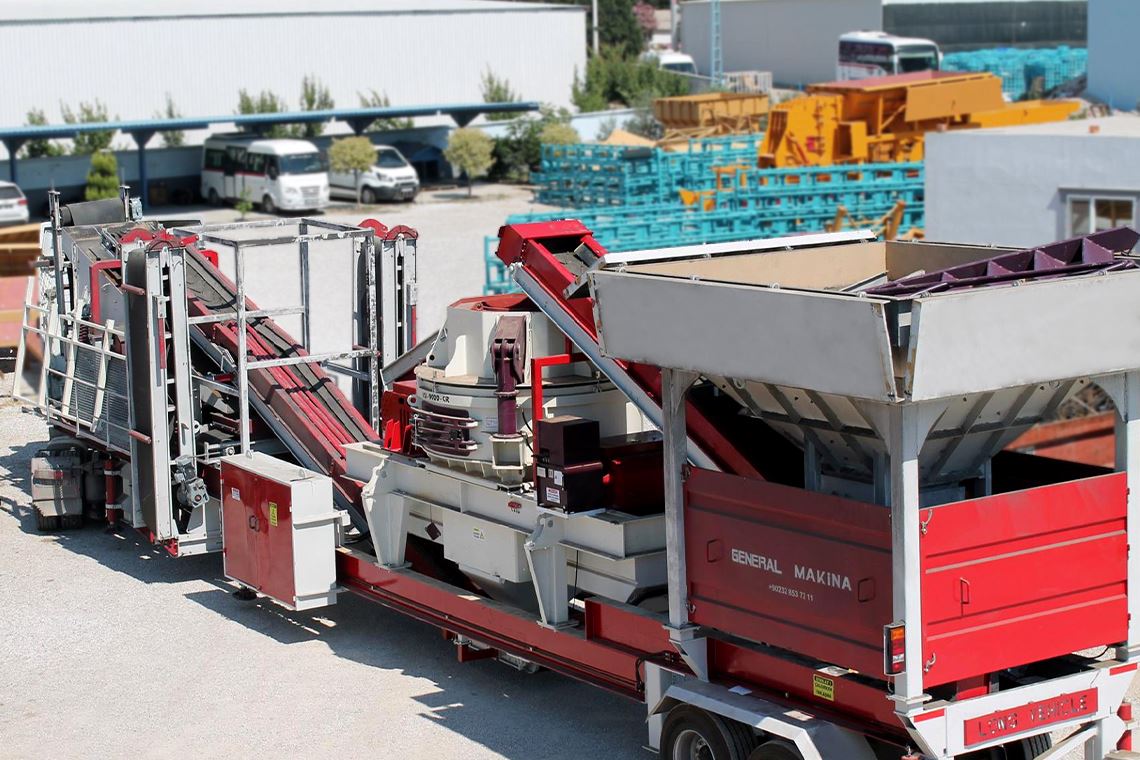

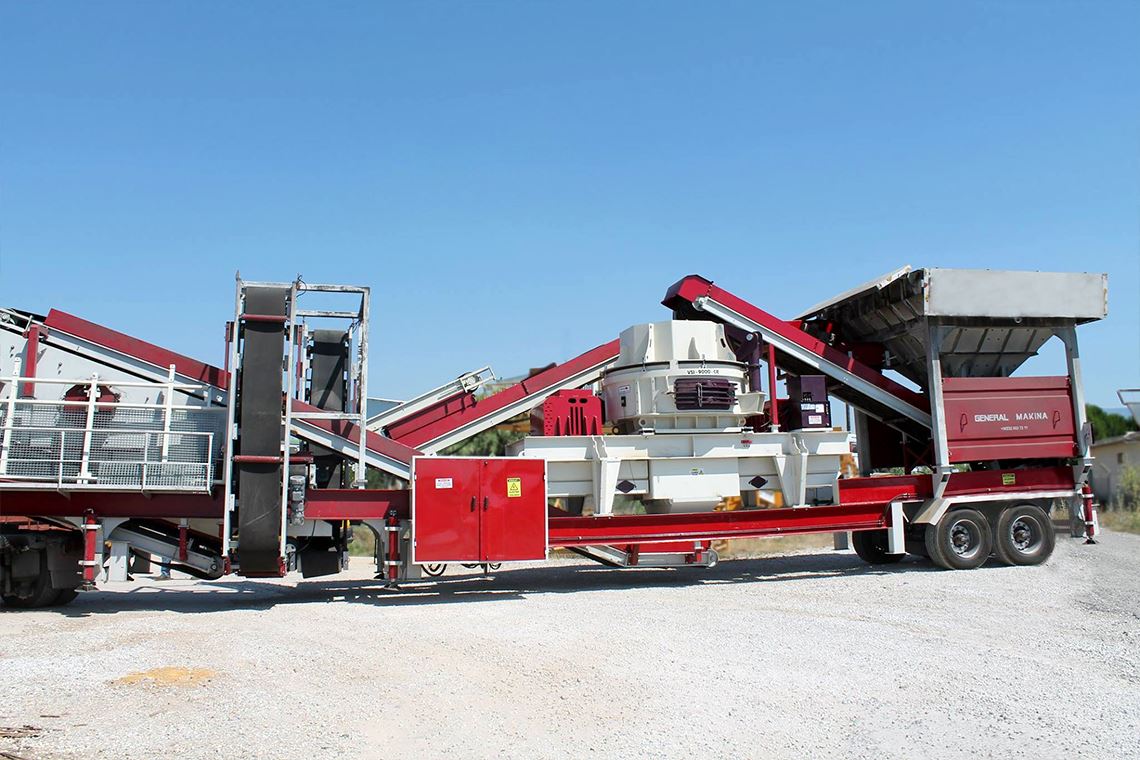

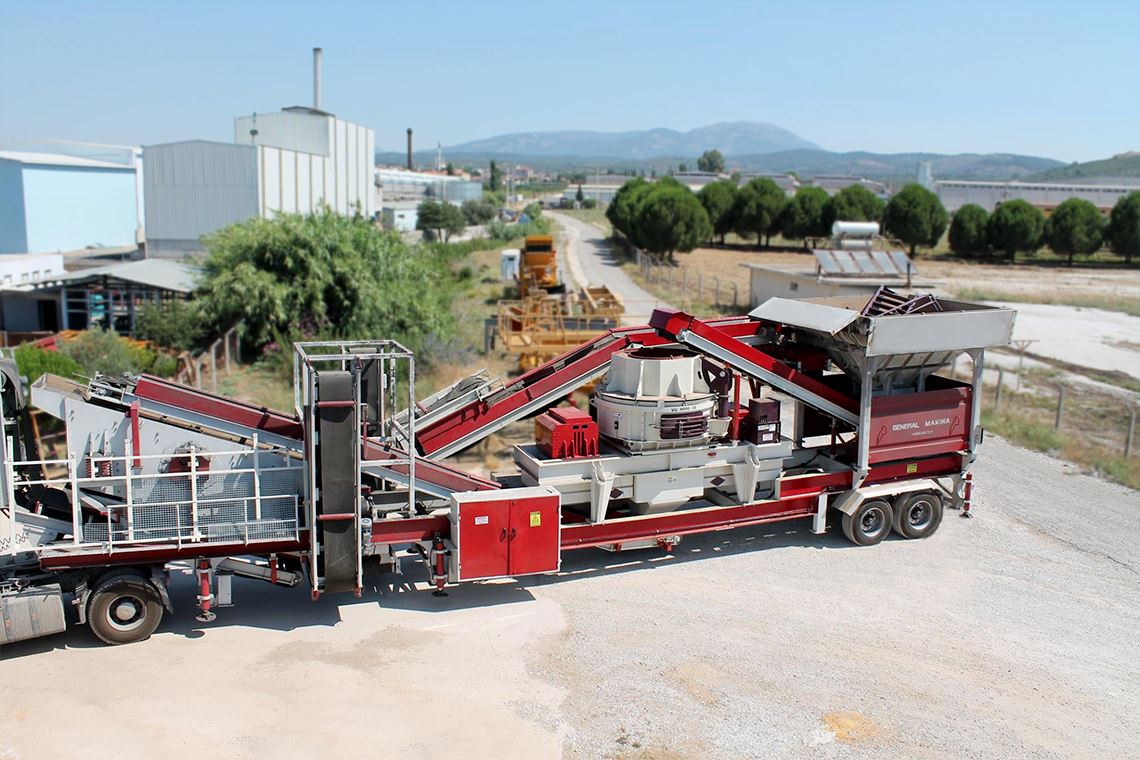

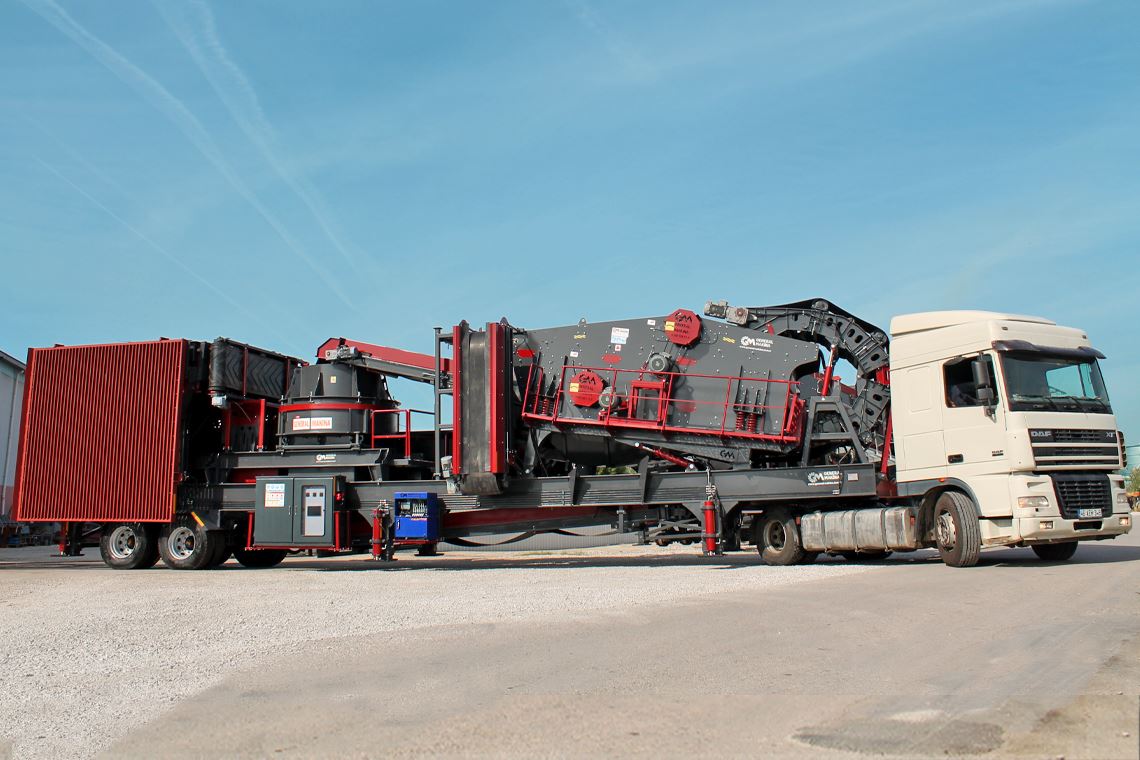

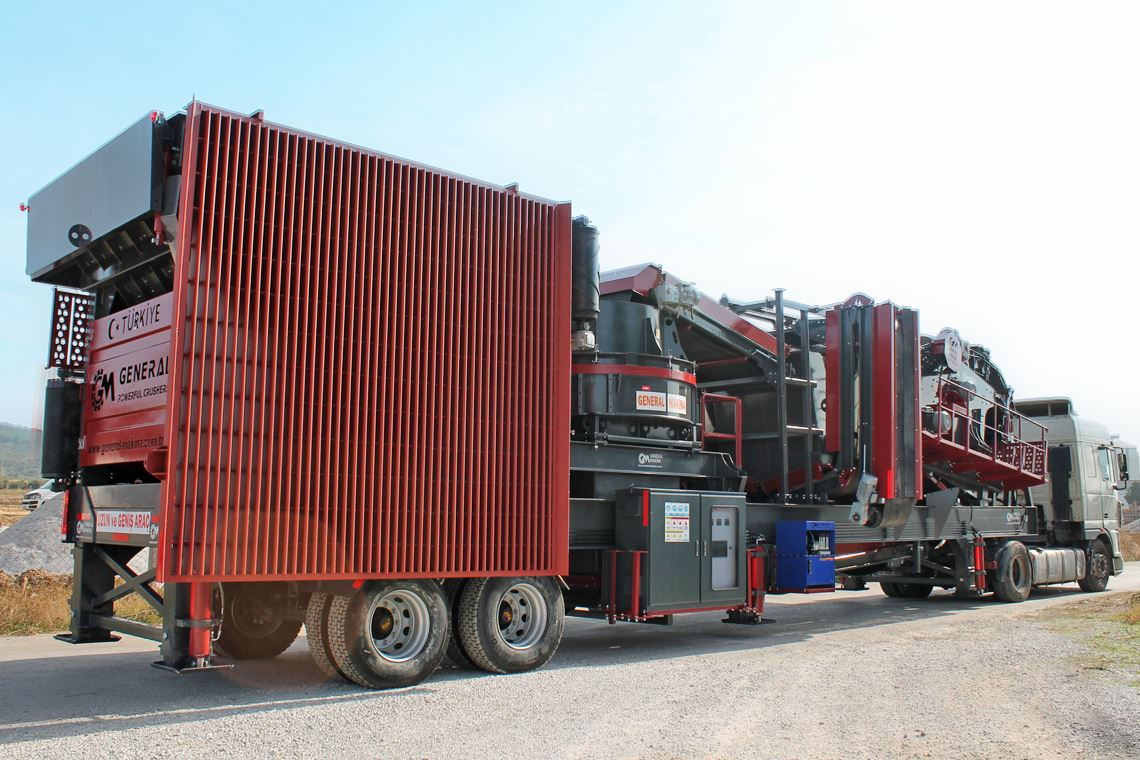

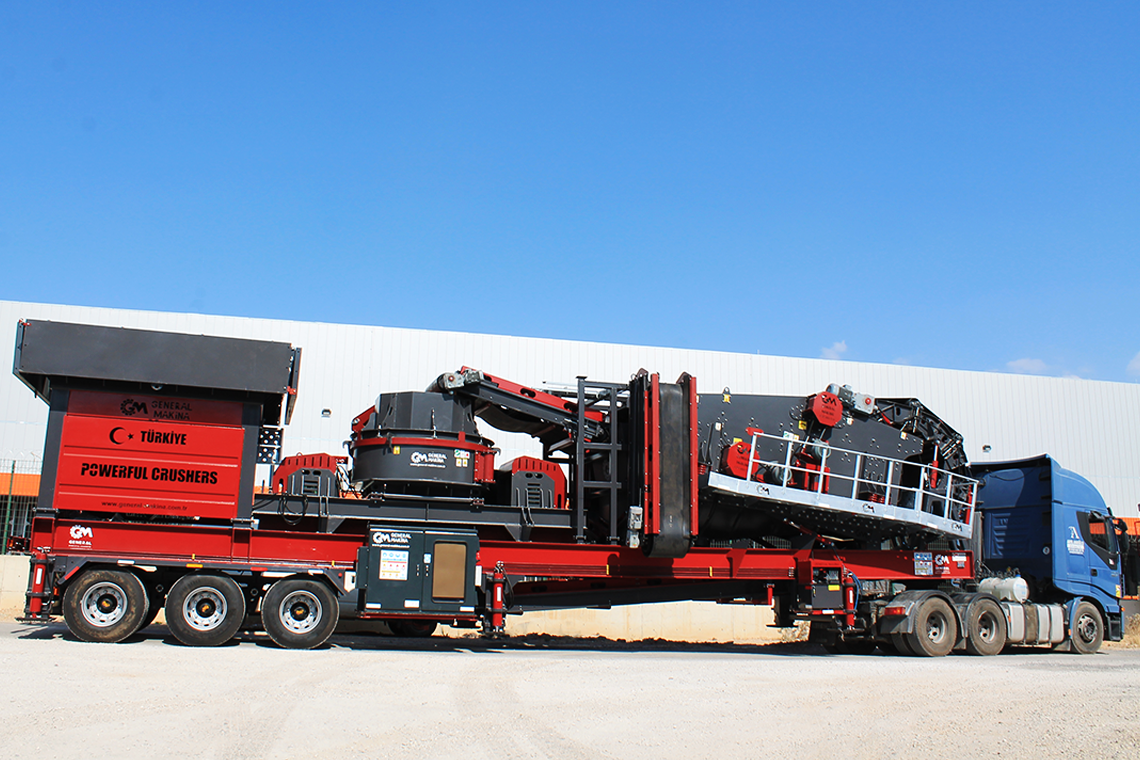

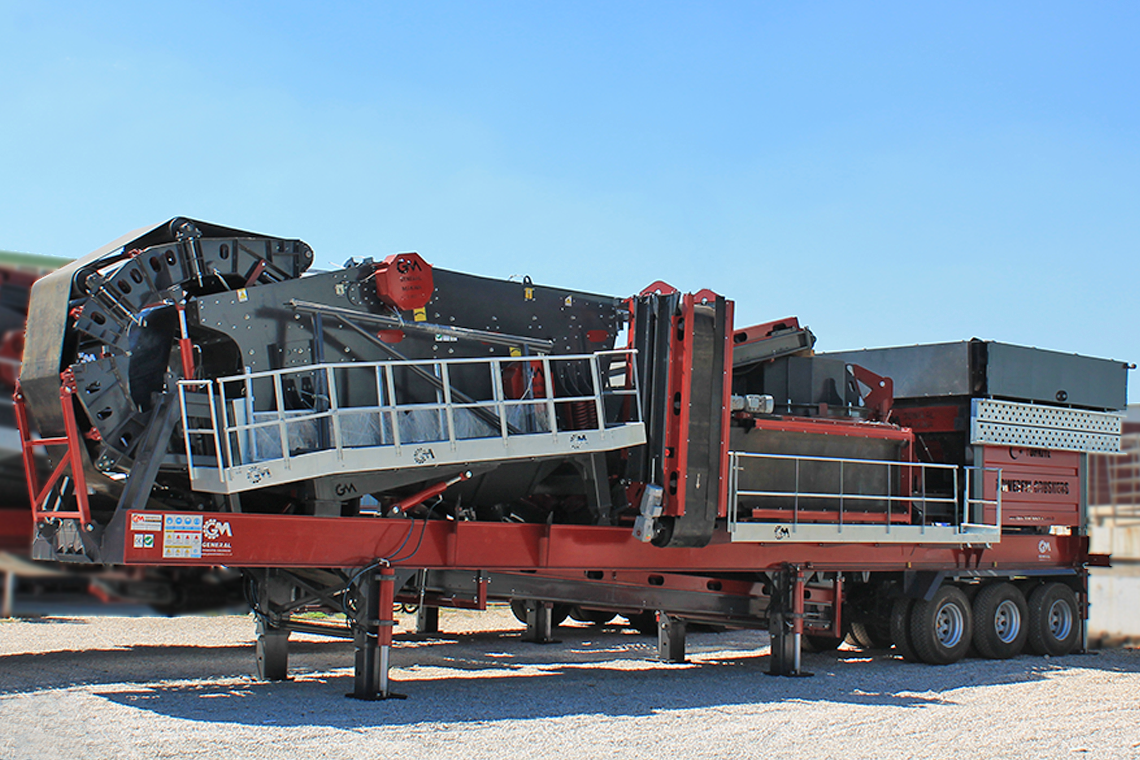

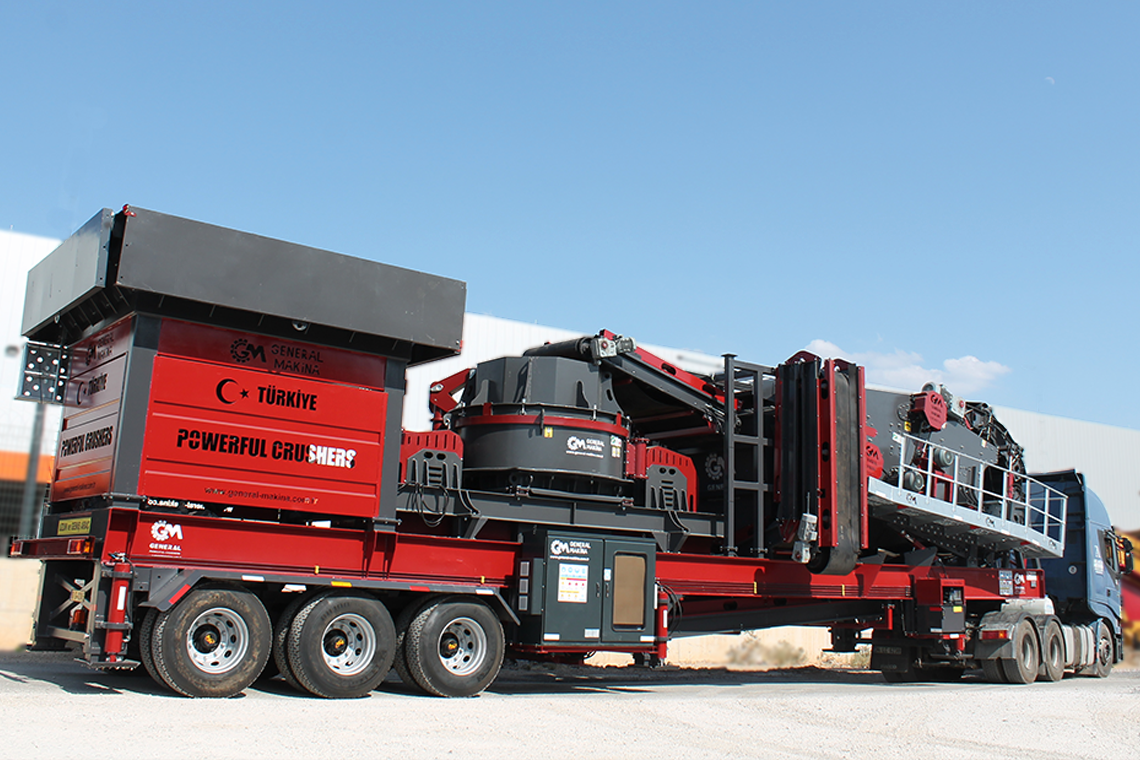

GNR MVSI 900 Mobile Vertical Shaft Impact Crusher

General Machinery the GNR-mvsi 900 mobile vertical shaft crusher has the same working and production capacity as fixed vertical shaft crushers as the working principle. The use of mobile vertical shaft crusher eliminates space limitation for your business. We can say that it is very easy to use in all terrain conditions. Mounting like a fixed vertical shaft crusher does not require a long time. It's pretty easy to provide.
Thanks to our excellent pre-and post-sale service, spare parts support and our quick returns related to all your problems, we continue our research and development with the enthusiasm of the first day for 45 years with the trust of our valued customers.

Your can contact our company for our mobile vertical shaft crusher product, which ensures the use for many years with high performance even in the most difficult conditions of nature, you can get information about the product details and the advantages of special price.
The equipment includes a feed hopper, a vertical shaft crusher, a sieve for the product, a conveyor belt, a mobile chassis and a control panel.

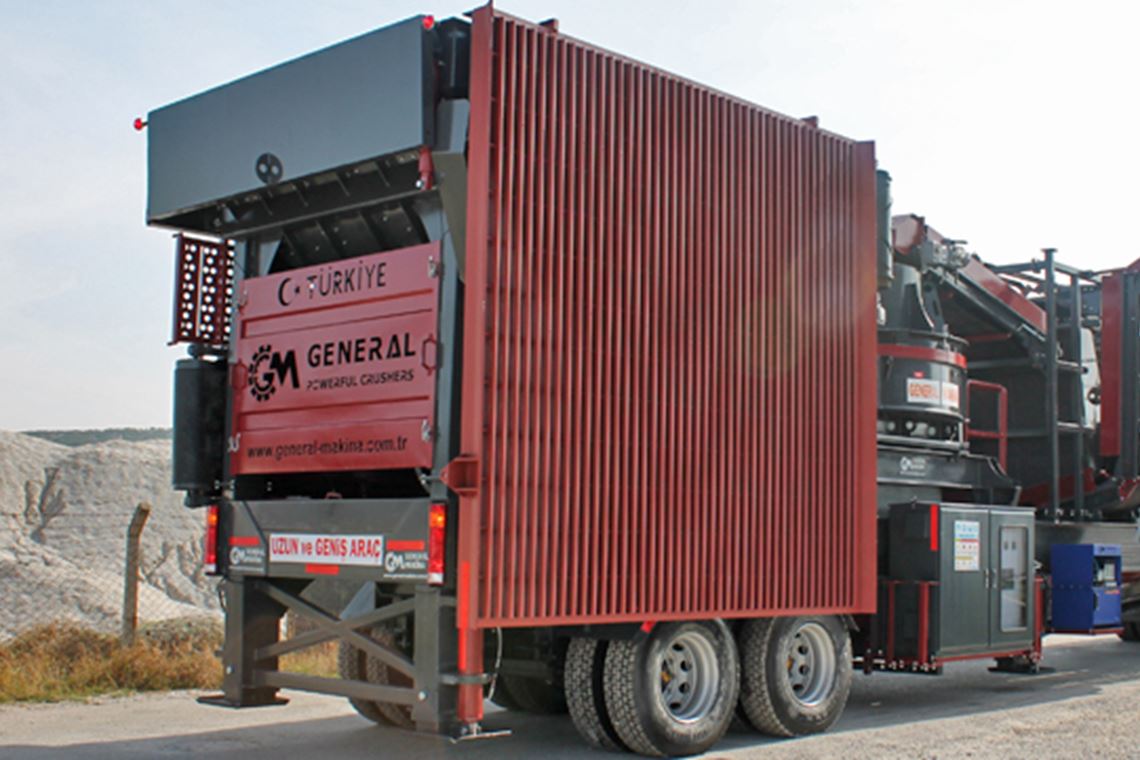

Feeder System

Thanks to its new design adapted to the mobile system, it is effortless to install and use. Moreover, it has the same characteristic as fixed feeders in terms of resistance to harsh construction site conditions. It can separate the soil in the run-of-the-mill with the by-pass scalping screen.
It is used to feed all mineral–stone materials and recycle materials of different hardness to the crusher.

Side covers can be selected as classic hinged or hydraulic.
Body armors are wear-resistant and replaceable.
Heavy-duty springs adapted to the mobile system.
The drive system can be made with single or twin Vibro motors.
Material feeding speed can be adjusted with the Vibro drive control system.
Automatic lubrication system can be selected for ease of maintenance.
Ease of sieving with single and double-stage bypass grid system

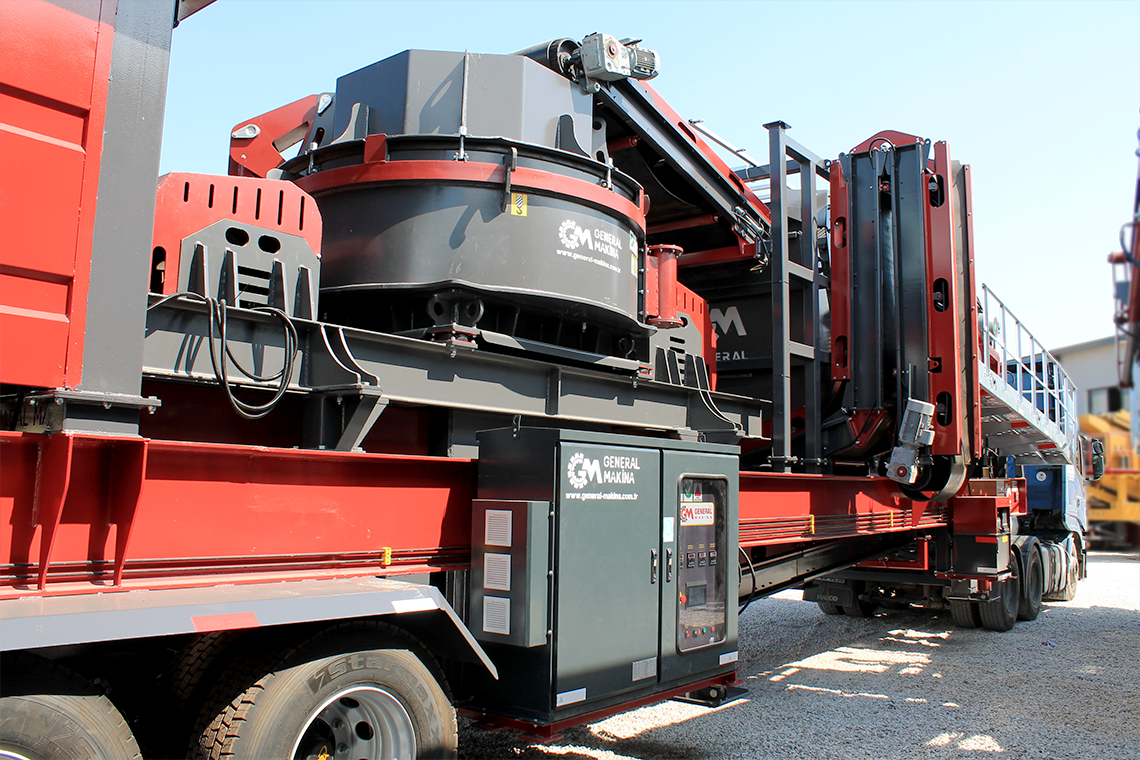

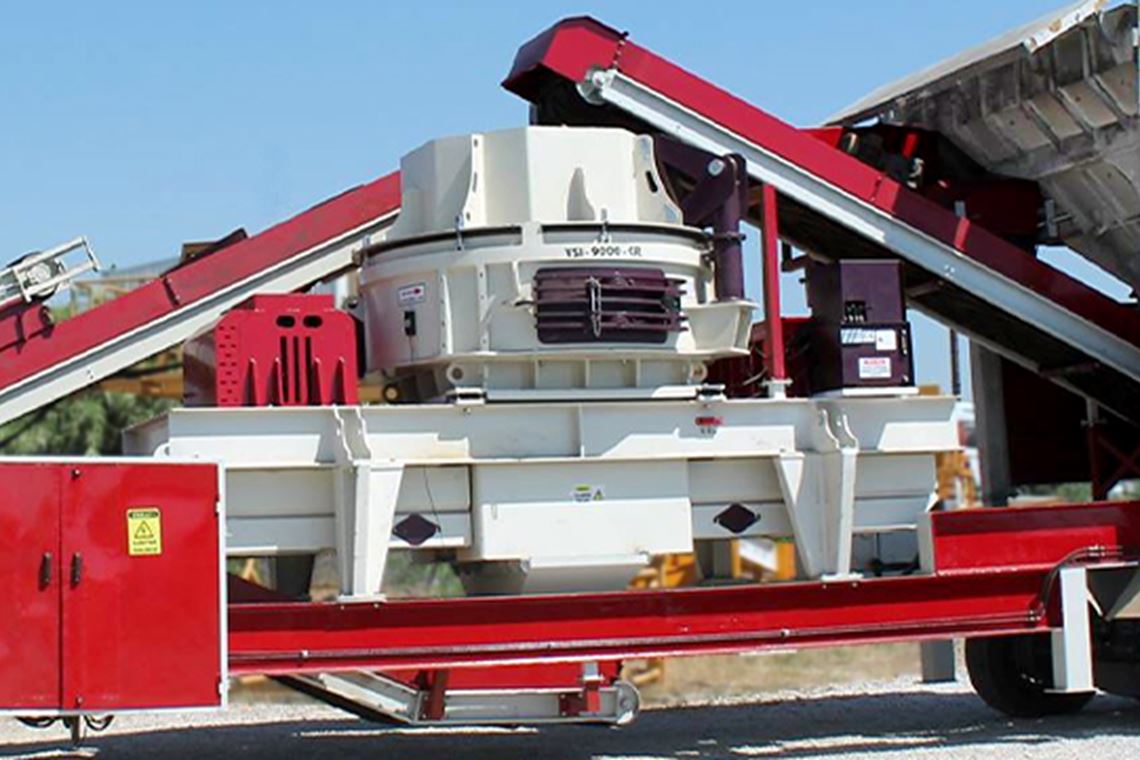

Crushing System

A redesigned mobile crusher system from the ground up with a focus on maximum efficiency and minimum cost that powers the plant.
Mobile Vertical Shaft Crusher has been developed to be in a portable structure without affecting the capacity.
Best for crushing hard and abrasive materials to produce gravel or sand.

The main features of the Mobile Vertical Shaft Crusher are :

Superior performance in hard and abrasive material.
It produces quality aggregates, especially for asphalt construction and concrete construction sites.
The operating cost is cheap as it hits and breaks the stones thanks to its working principle.
Low energy consumption can be achieved with the Soft Starter option.
Spare parts replacement and maintenance are accessible easily with the hydraulic unit.
Vibration detection sensor and excessive heat sensor can be added for automatic intervention in dangerous situations.
Automatic lubrication system can be included in the system.

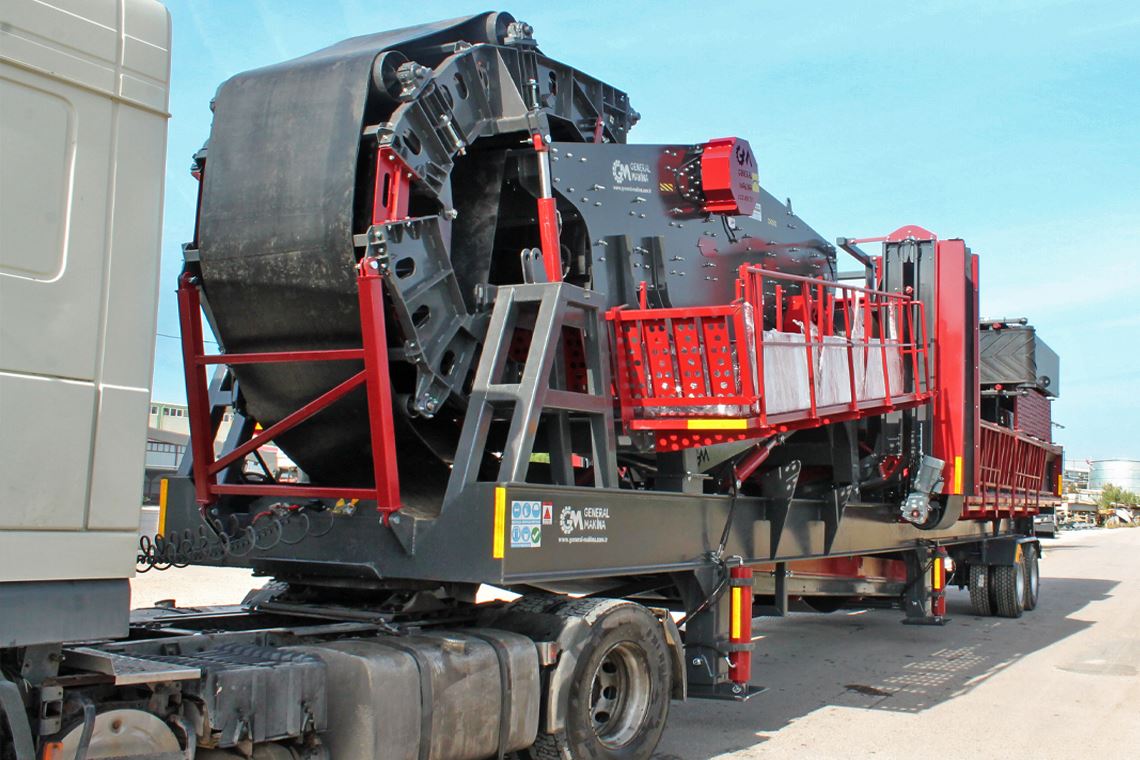

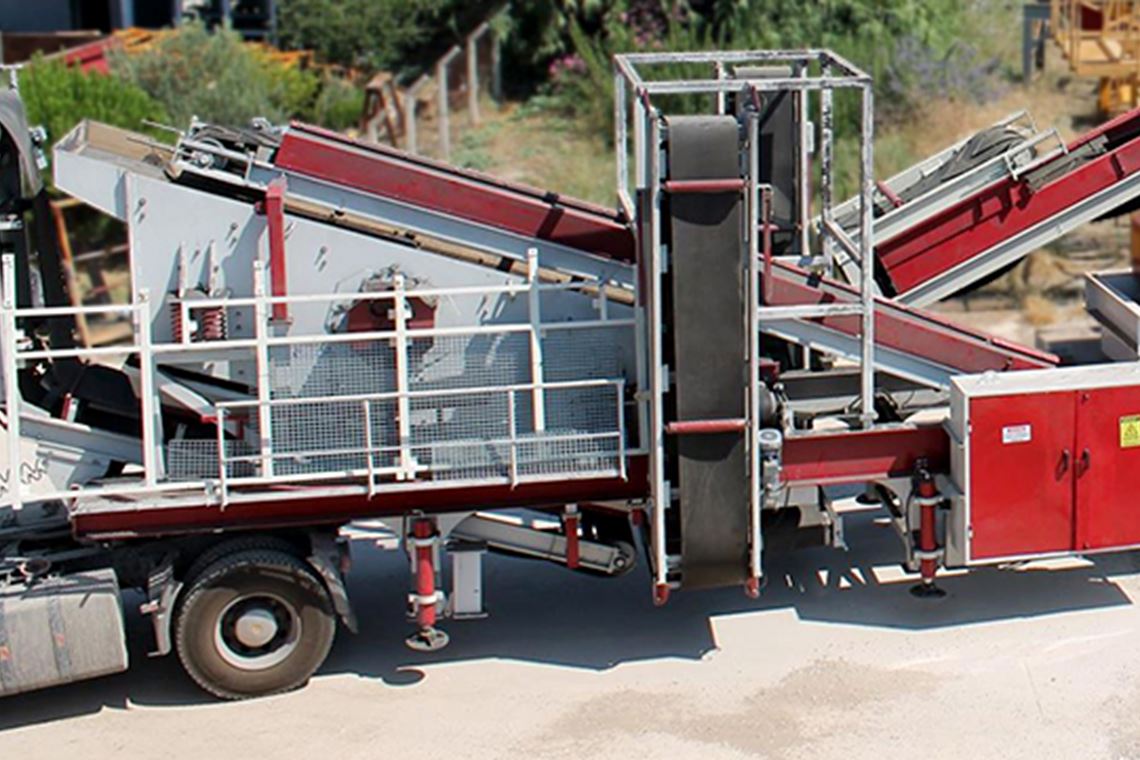

Vibrating Screen System

The mobile vibrating screen has been designed with high efficiency to serve even in the most severe conditions.
Its screening capacity differs, but it is adaptable to all stone types and mineral materials.

Mobile Vibrating Screen features are as follows:

It works in synchronization with the crusher at maximum efficiency.
Body components are boltless without welding.
The sieve wires are steel and imported, they are easy to change.
The drive system can be selected with Vibro motors or a conventional camshaft drive.
Sieve slope can be adjusted optionally with a hydraulic system.
Compatible with all General Makina crushing and screening plants.

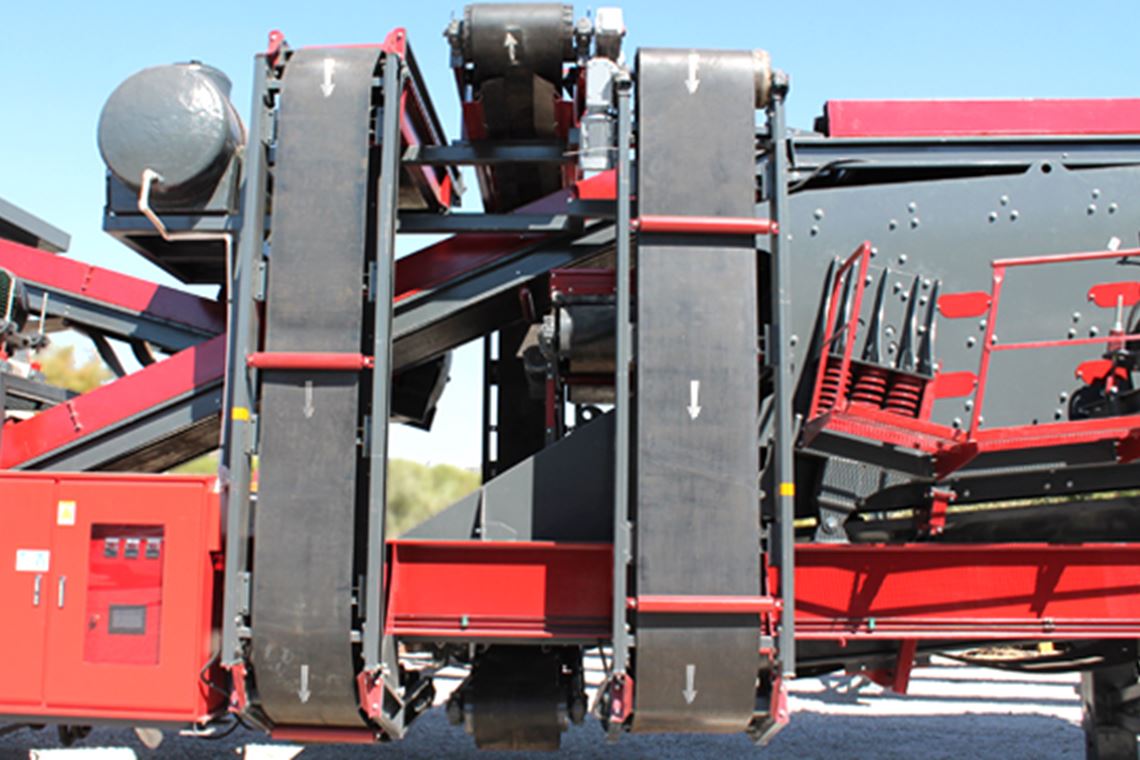

Conveyor Belts System

Mobile Conveyor Belts are perfectly adapted to portable facilities.
It has technological advantages such as automatic installation and frequency control.

The main advantages of Mobile Conveyor Belts are as follows:

It is assembled in 15 minutes or collected for shipping position.
Drive system works with geared motor, and a frequency system can be added.
Top closing, and dust removal unit can be added.
Material discharge areas and rollers are covered with rubber.
Automatic lubrication and cycle counting system can be added.
Magnetic protection system can be added.

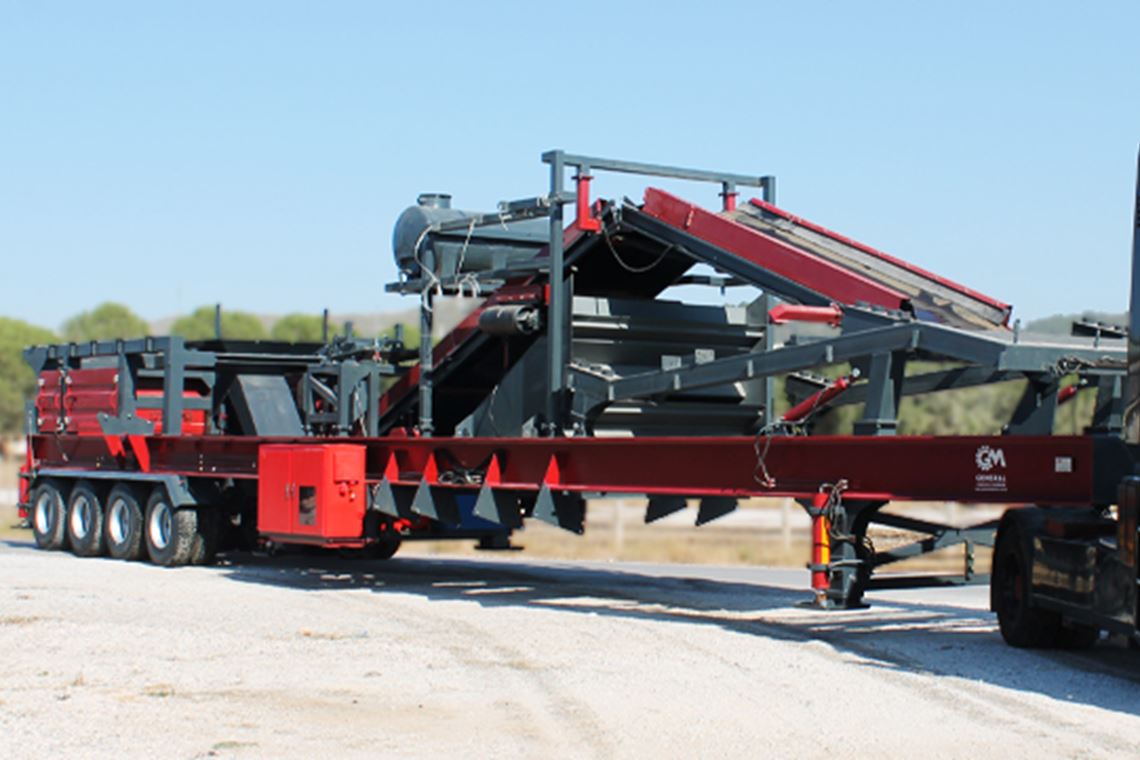

Mobile Chassis System

Mobile Chassis carries all the equipment on it and gives the facility the mobility feature
The mobile chassis, which is the work of General Makina engineering, is compatible with all towing construction machines.

The main advantages of the Mobile Chassis system are,

It carries the whole plant on a single platform, so it can be used safely in more than one project, Unlike fixed crushing and screening plants.
It is compatible with Highway's standard dimensions and signaling (traffic lights) systems in accordance with traffic regulations.
It has a standard double axel wheel system; the length of the chassis and the number of axle wheels are increased according to the weight of the facility it will carry.
Chassis structure is A1 quality iron and steel. Joint areas are strengthened with an extra welding process.
Brake control system is pneumatic.
Installation can be completed in 15 minutes with the hydraulic support system.

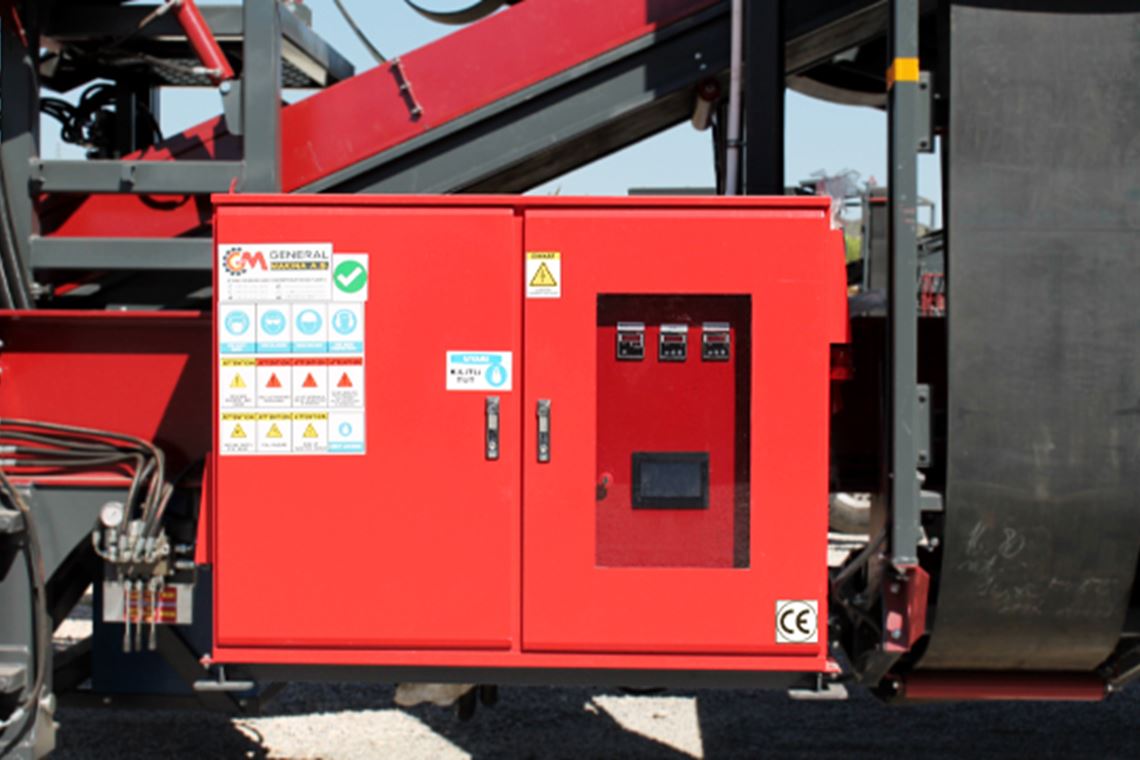

Control Panel System

The Mobile Control Panel is the brain of the facility that operates the whole facility.
The performance of the plant equipment is determined by the mobile control panel.

The general features of the Mobile Control Panel are:

It is suitable to work with standard electric means or generator energy.
It can work with 50 Hz and 60 Hz frequency units.
Emergency stop system and critical situation sound and light warning systems can be added.
With the soft smart starter system, energy savings can be achieved in the crushers as an option.
With the extra frequency control unit, the speeds of the feeder, conveyor belts, and vibrating screen can be optimized.
It is quite easy to control the facility with the touchscreen control system.
Remote control or internet connection tracking system can be added.
The outer body of the panel is waterproof and dustproof with locks on covers.
