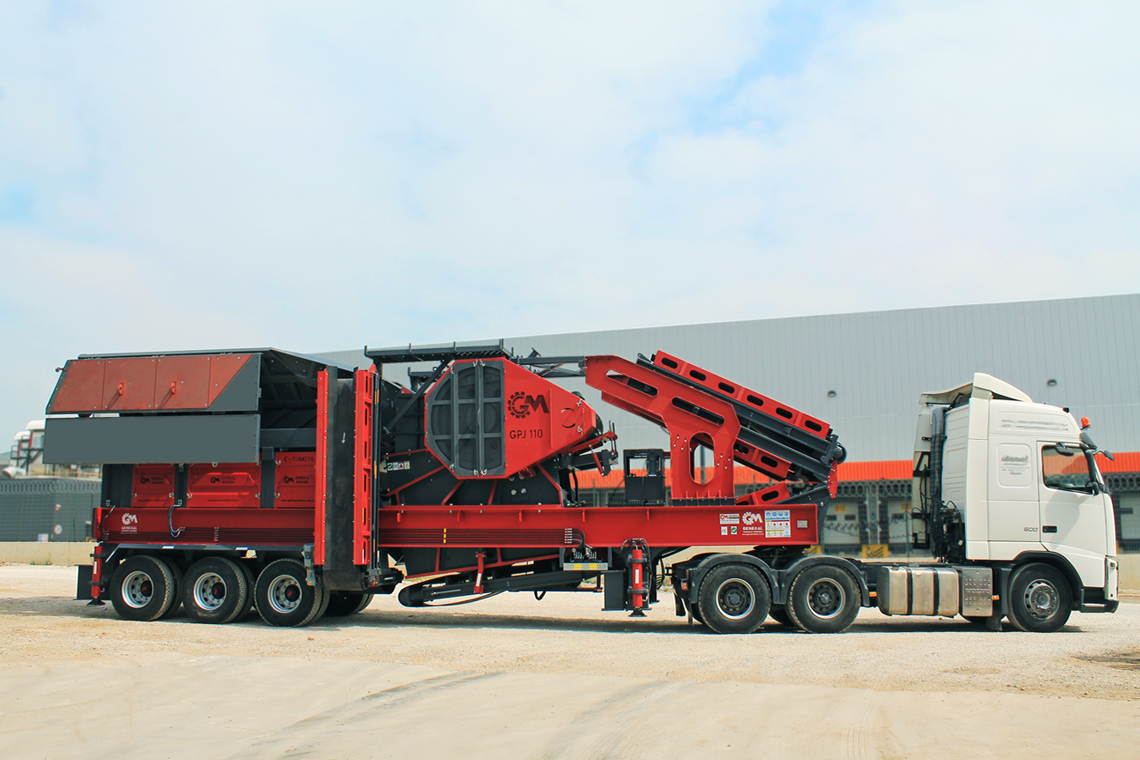

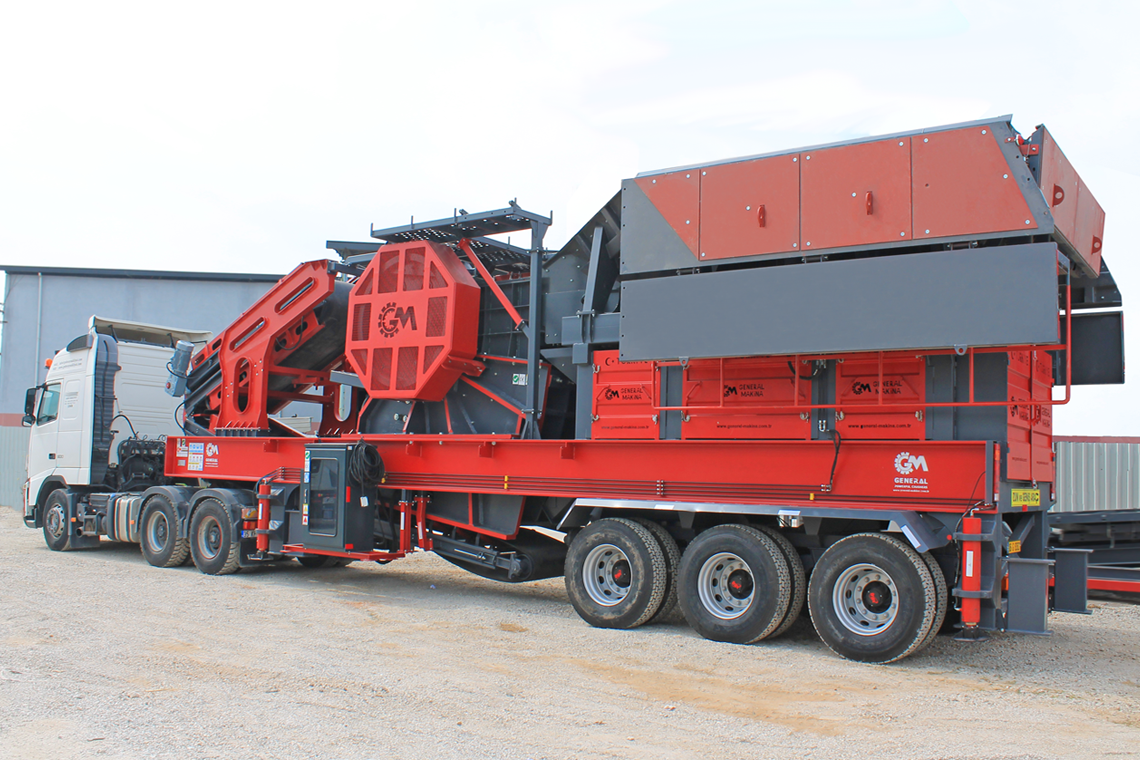

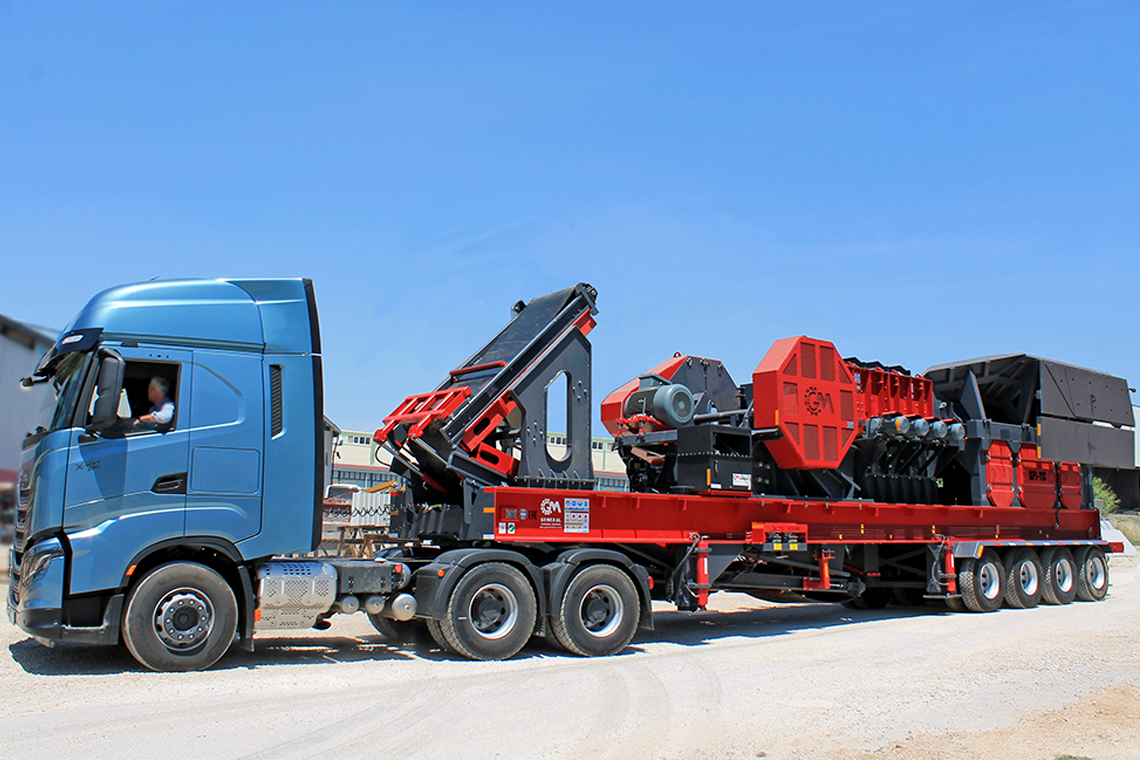

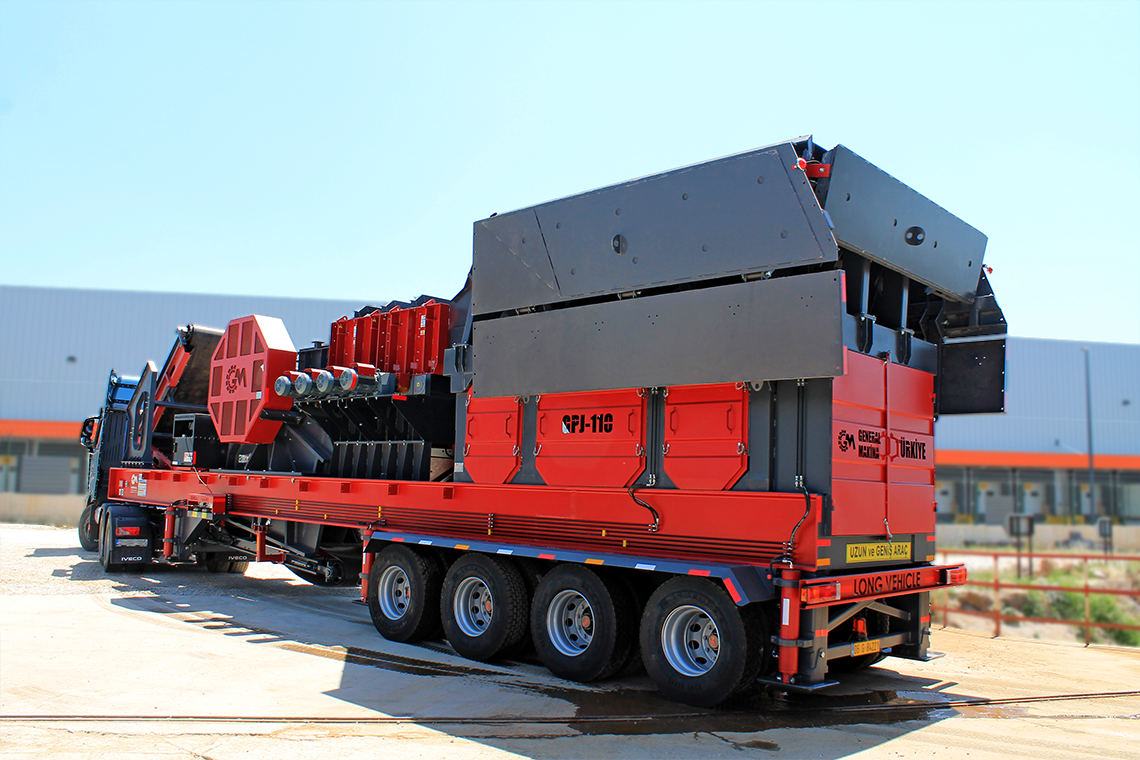

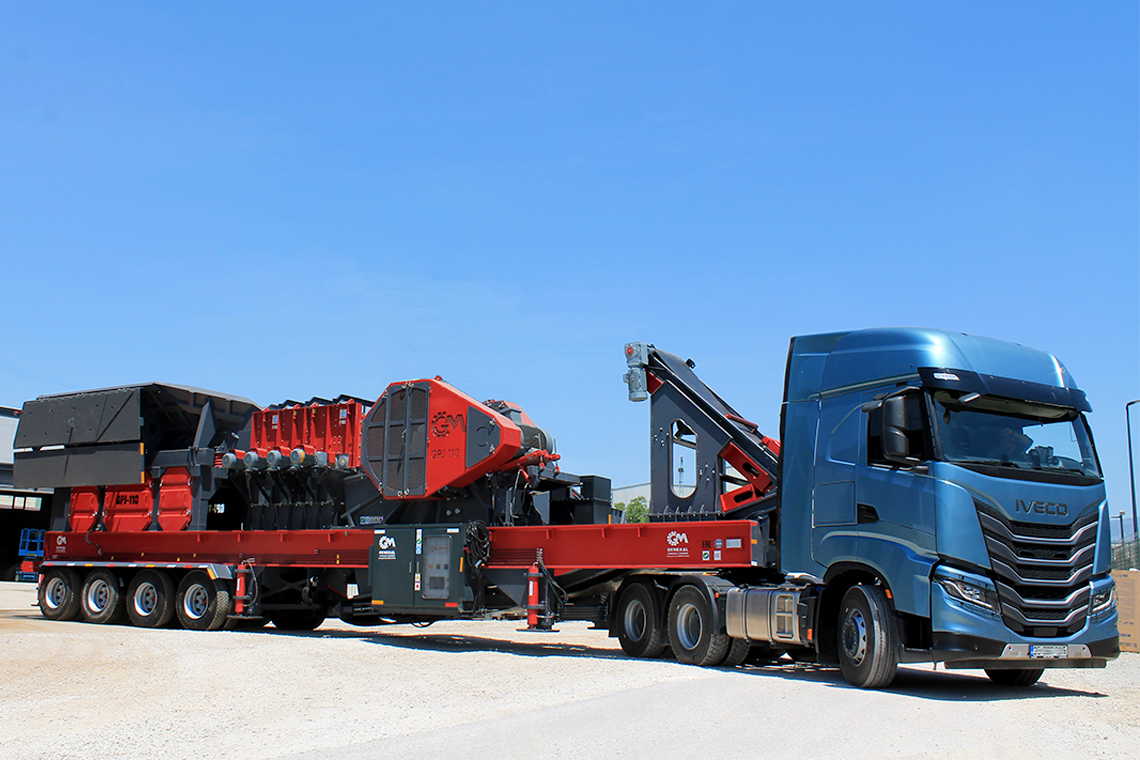

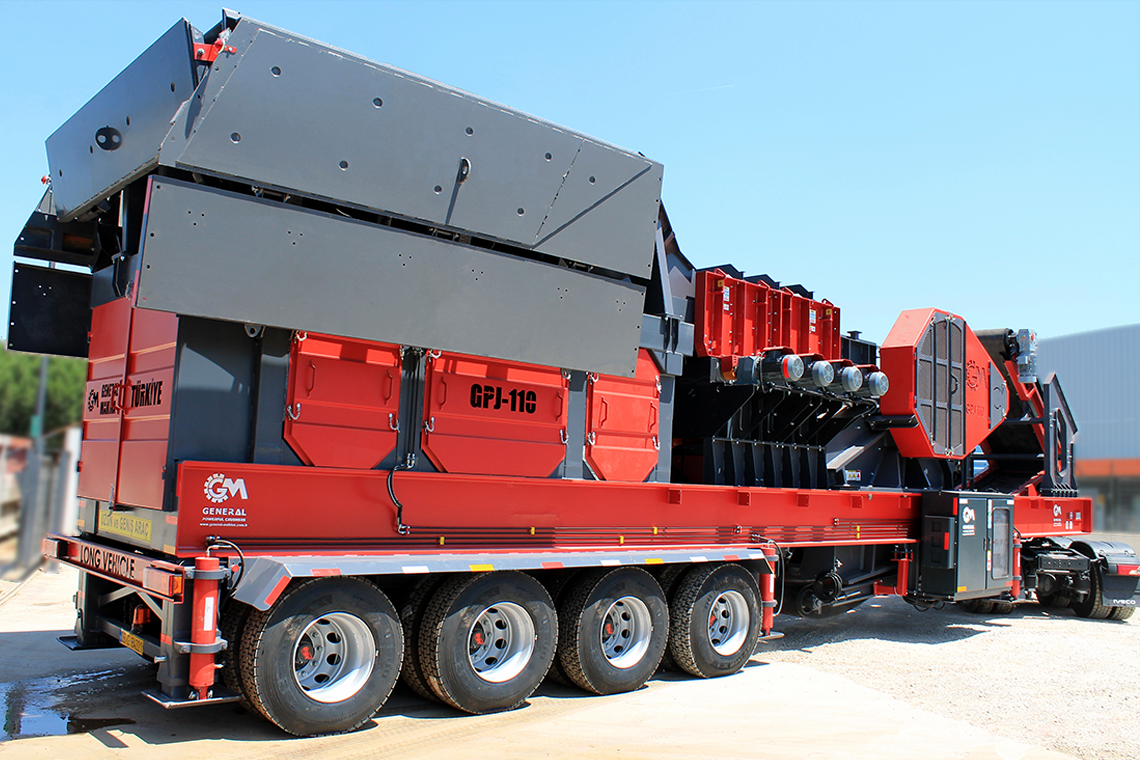

GNR - MC110 Mobile Jaw Crusher

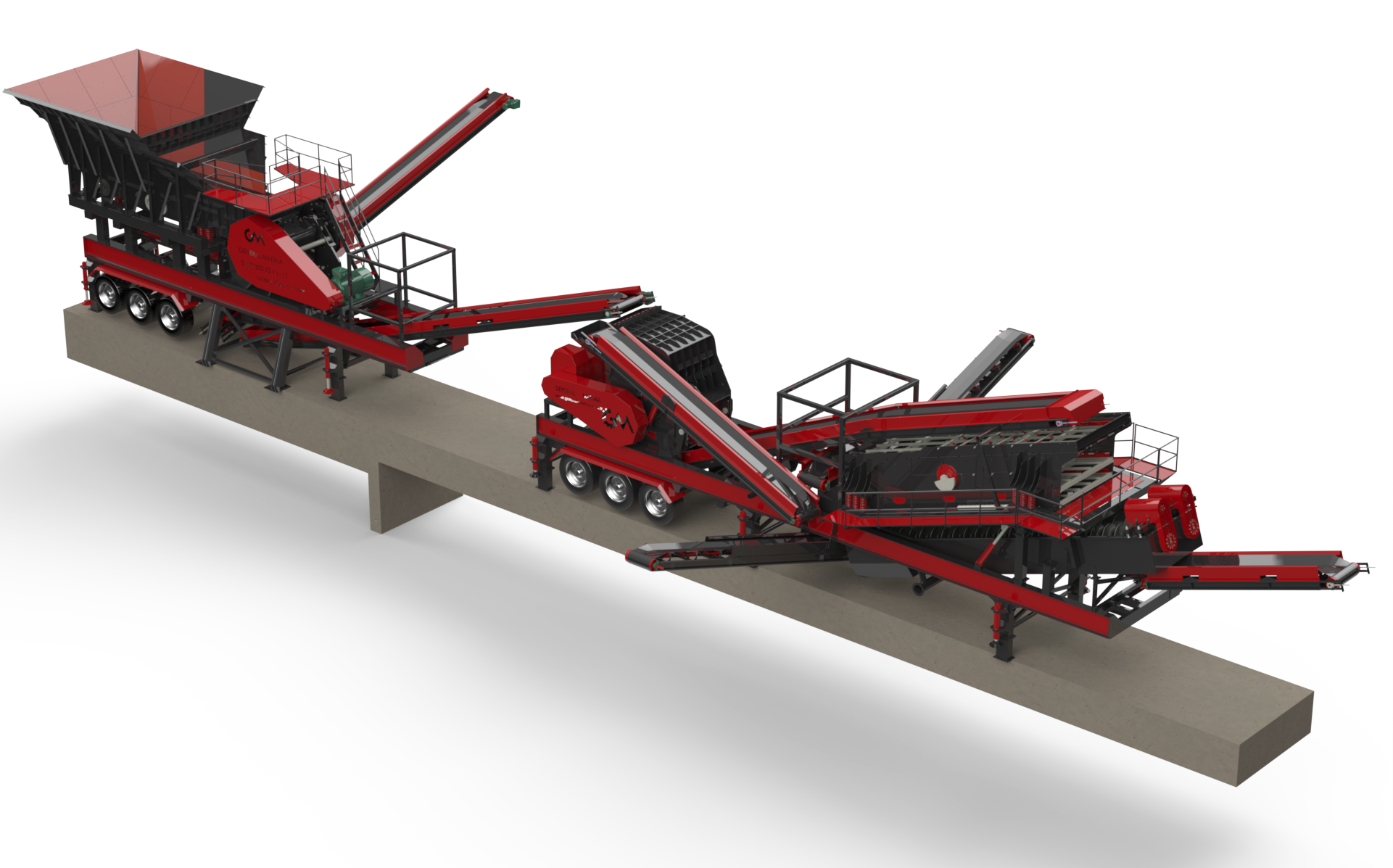

GNR - MC110 Mobile Jaw Crusher plant includes a 110 mobile jaw crusher group with mobile feeder independently operating. In addition to a  mobile impact crusher (DMK 03) , and mobile vibrating screen.

Thanks to the technological developments brought by our years of experience and the forward-thinking R & D studies of our company, we manufacture crusher facilities that offer special solutions to all sizes of stones, especially mining, concrete-batching, and roads-construction.
These facilities, which can perform complete crushing, screening, and even washing, are manufactured within certain limits in terms of capacity.
One of the most important limiting factors here is the mobile chassis that will carry the entire facility on it.

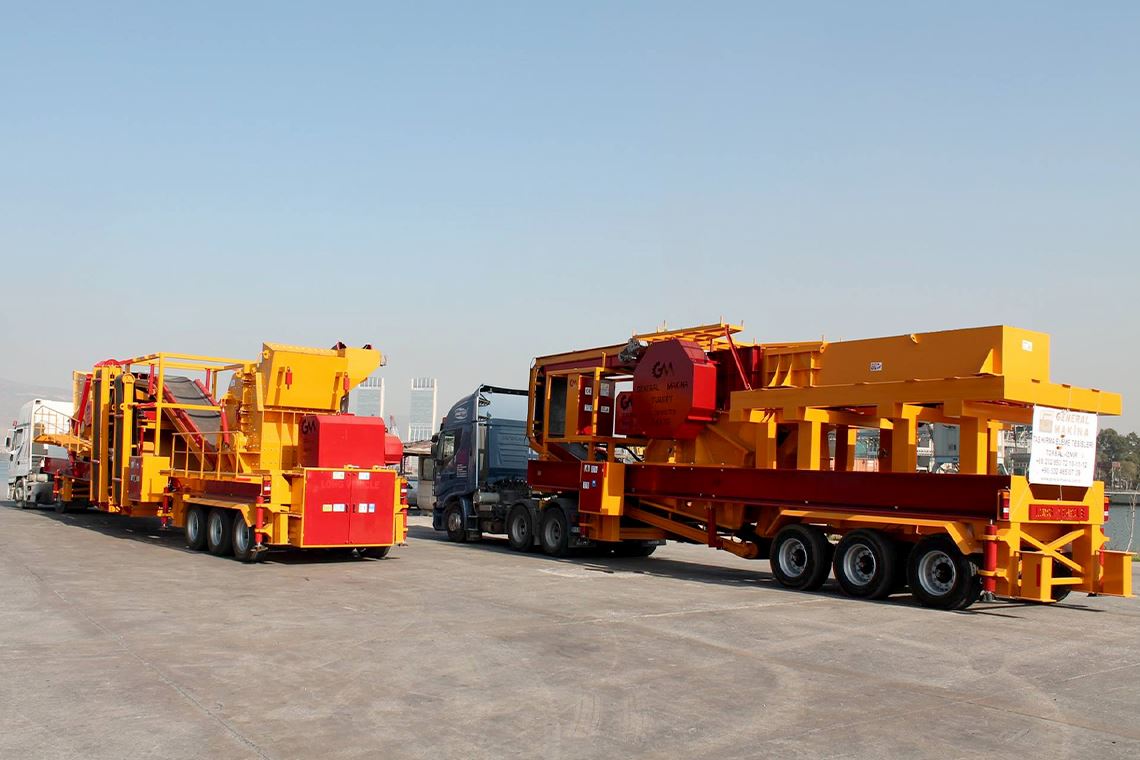

GNR - MC110 Mobile Jaw Crusher plant is designed as a primary group and a secondary group by using a double instead of a single chassis in order not to be stuck to this limit.
The most important advantages over other mobile crushing plants are their high capacity (including crushing basalt or granite) and the independent use of the primary or secondary group in case of need.

Please contact us for more technical details and our other mobile crushing plants.

GNR - MC110 Mobile Jaw Crusher

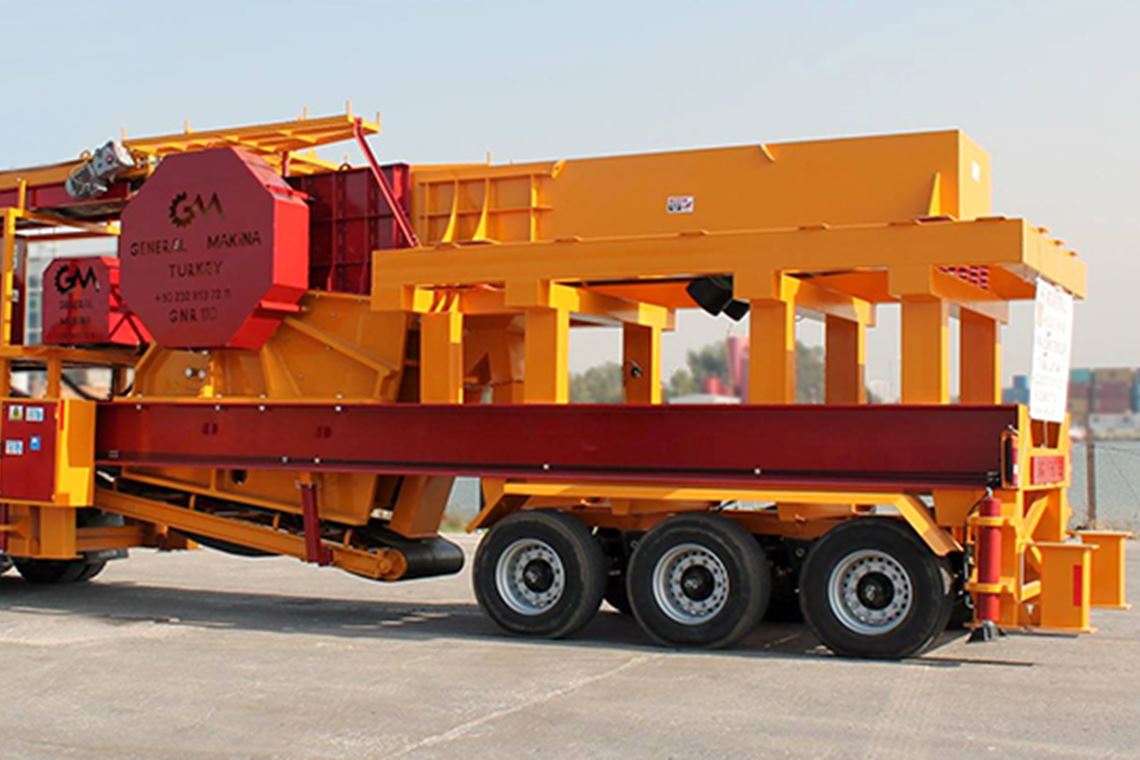

Feeder System


Thanks to its new design adapted to the mobile system, it is effortless to install and use. Moreover, it has the same characteristic as fixed feeders in terms of resistance to harsh construction site conditions. It can separate the soil in the run-of-the-mill with the by-pass scalping screen.
It is used to feed all mineral–stone materials and recycle materials of different hardness to the crusher.
  • Side covers can be selected as classic hinged or hydraulic.
  • Body armors are wear-resistant and replaceable.
  • Heavy-duty springs adapted to the mobile system.
  • The drive system can be made with single or twin Vibro motors.
  • Material feeding speed can be adjusted with the Vibro drive control system.
  • Automatic lubrication system can be selected for ease of maintenance.
  • Ease of sieving with single and double-stage bypass grid system
GNR - MC110 Mobile Jaw Crusher

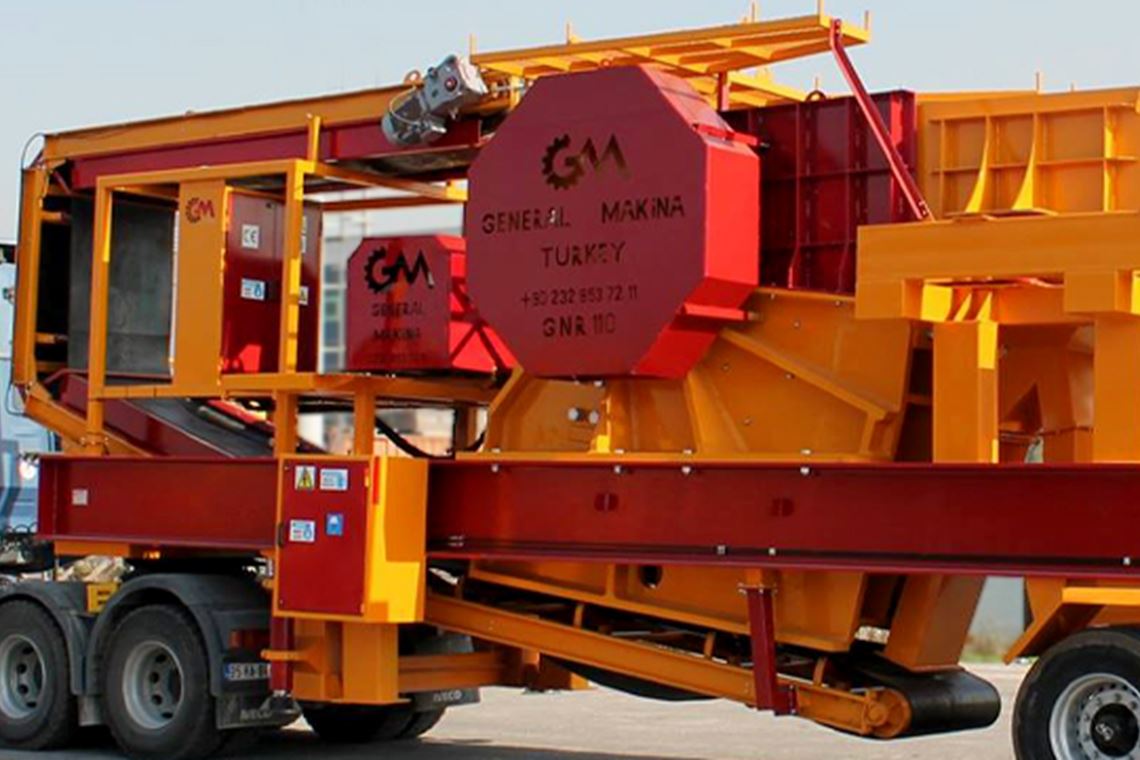

Crushing System


A redesigned mobile crusher system from the ground up with a focus on maximum efficiency and minimum cost that powers the plant.
Mobile Primary Jaw Crusher has been developed to be in a portable structure without affecting the capacity.
It is the most preferred crusher in the primary stage for crushing materials of different hardness in stone crushing and screening plants particularly, hard and abrasive stone–mineral materials with high silica content.

Some of the Mobile Primary Jaw Crusher features are:
  • Primary or secondary models suitable for the material to be broken can be selected.
  • Thanks to the jaw adjustment, the size of the material to be broken can be changed.
  • It has a safety system against excessive strain.
  • The linings and sidewall wear resistance are easily replaceable.
  • Spare part costs can be saved by turning the head and lower part of the jaws.
  • Automatic lubrication can be included in the system
GNR - MC110 Mobile Jaw Crusher

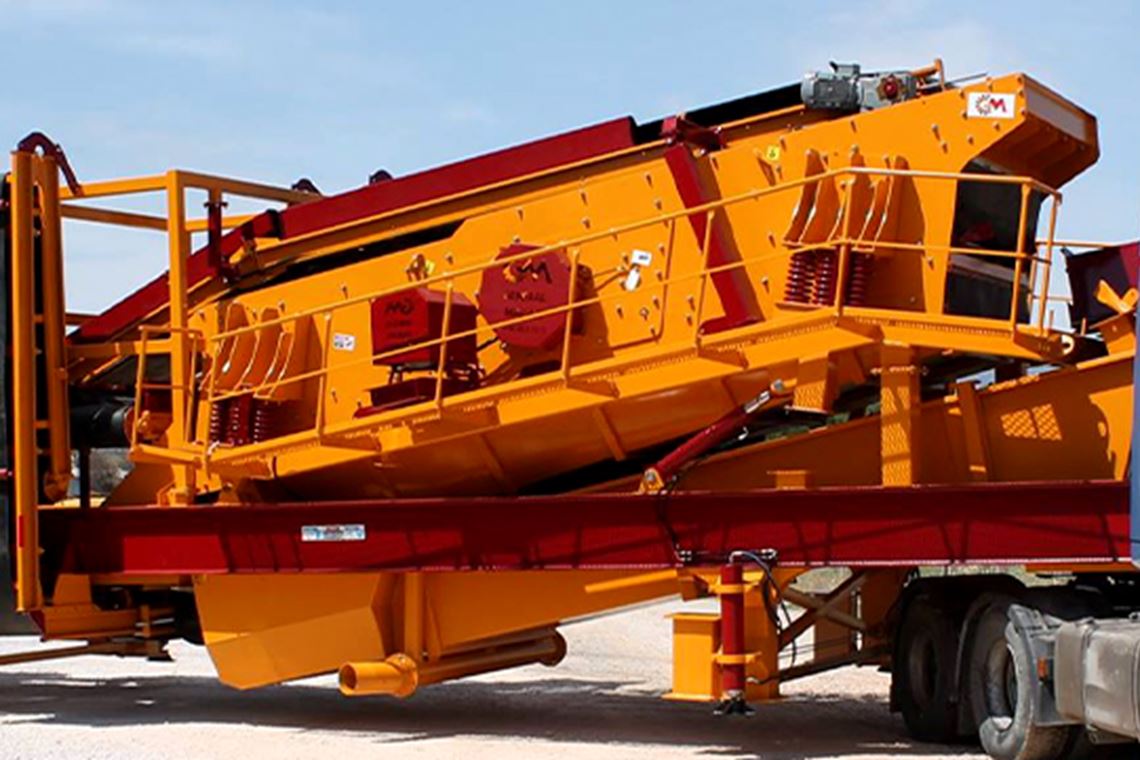

Vibrating Screen System


The mobile vibrating screen has been designed with high efficiency to serve even in the most severe conditions.
Its screening capacity differs, but it is adaptable to all stone types and mineral materials.

Mobile Vibrating Screen features are as follows:
  • It works in synchronization with the crusher at maximum efficiency.
  • Body components are boltless without welding.
  • The sieve wires are steel and imported, they are easy to change.
  • The drive system can be selected with Vibro motors or a conventional camshaft drive.
  • Sieve slope can be adjusted optionally with a hydraulic system.
  • Compatible with all General Makina crushing and screening plants.
GNR - MC110 Mobile Jaw Crusher

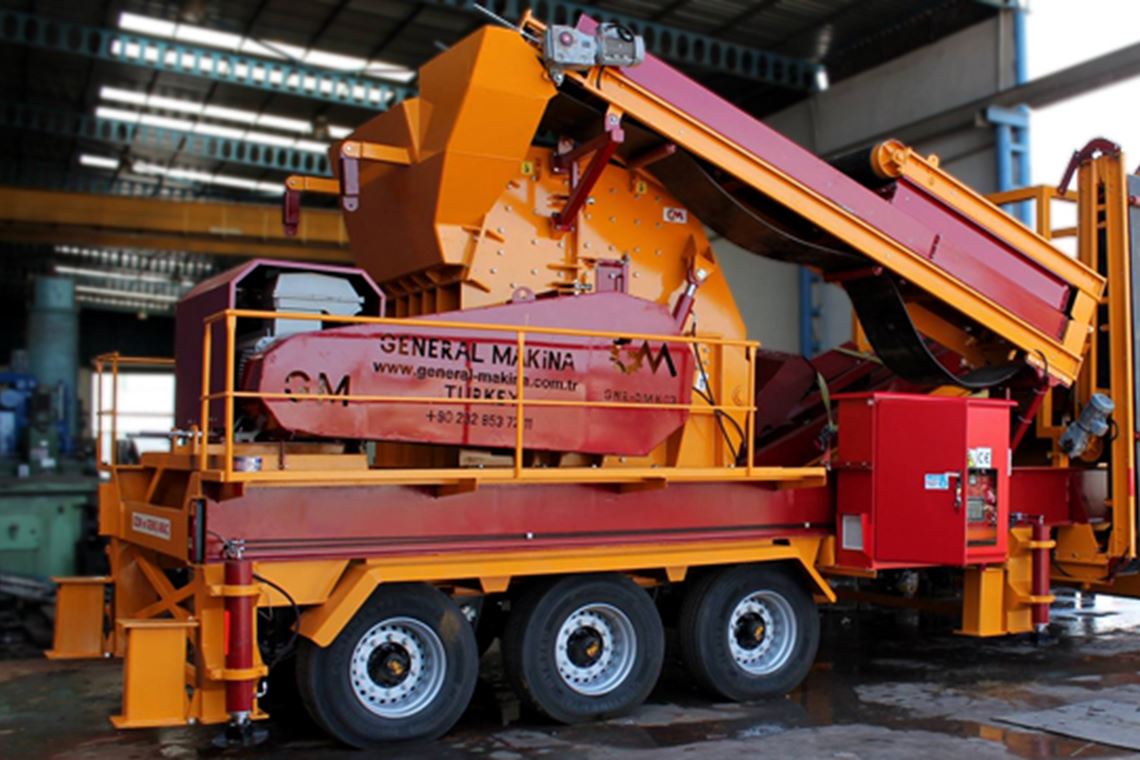

Mobile Secondary Impact Crusher System


A redesigned mobile crusher system from the ground up with a focus on maximum efficiency and minimum cost that powers the plant.
Mobile Secondary Impact Crusher has been developed to be in a portable structure without affecting the capacity.
It breaks the non-abrasive stone - rock and mineral minerals of all hardness.

The main features of the Mobile Secondary Impact Crusher are as follows:
  • Superior performance in medium and hard material
  • It can be used in recycling projects with its magnetic unit.
  • High rate of cubic material production
  • Low energy consumption can be achieved with the Soft Starter preference.
  • Body liners and rotor pallets are replaceable.
  • Thanks to the hydraulic maintenance unit, the internal parts are easily intervened.
  • Automatic lubrication can be included in the system.
  • Temperature sensors can be added for extra safety.
GNR - MC110 Mobile Jaw Crusher

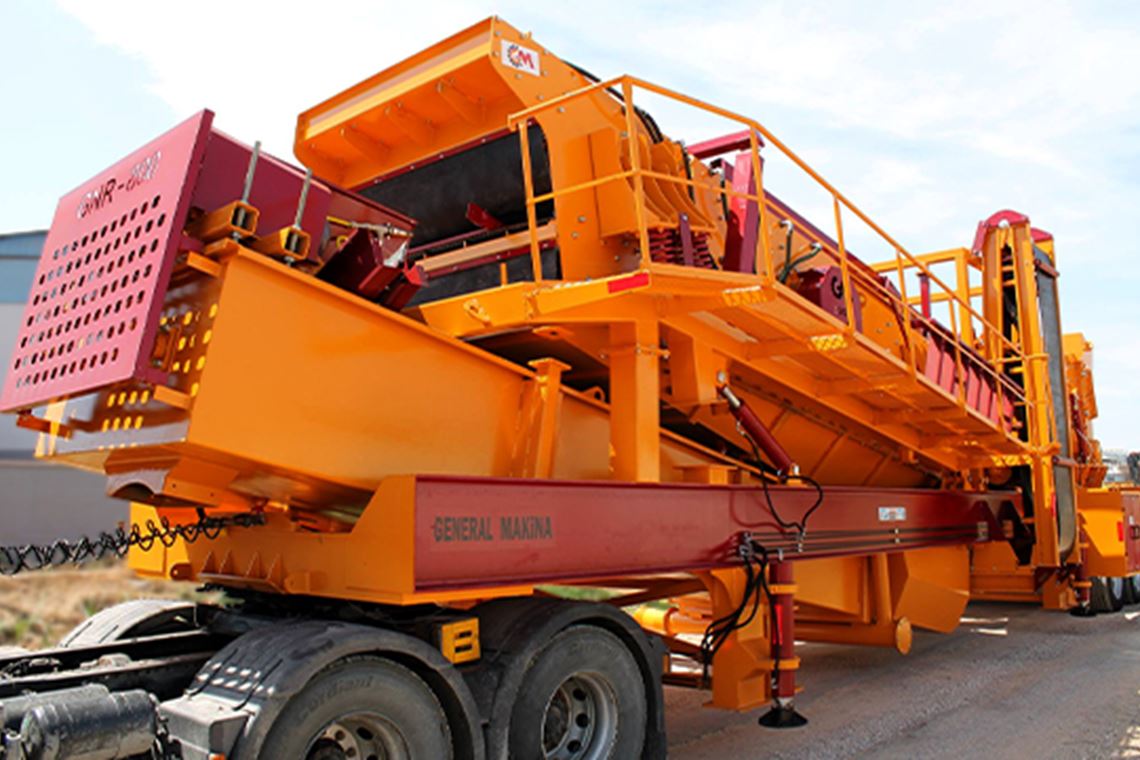

Washing System


The Screw Washer, which is one of the most effective pieces of equipment in the aggregate washing process, has adapted very well to the portable system without affecting its performance. It also performs sand washing and sieving continuously in parallel with the mobile screen.

Mobile Screw Washer features are as follows,
  • It offers the same performance as a fixed screw washer with the advantage of a mobile system.
  • The washer helical shafts had replaceable rubber heads against wear.
  • Each helical shaft has its own motor, and reducer drive unit.
  • Frequency control unit can be added for precise production.
  • It cleans and separates all the impurities from the material.
  • It can wash all materials up to 1 millimeter.
  • It can be adapted to all General Makina washing screens.
  • Easy and fast maintenance with a  long operating life
GNR - MC110 Mobile Jaw Crusher

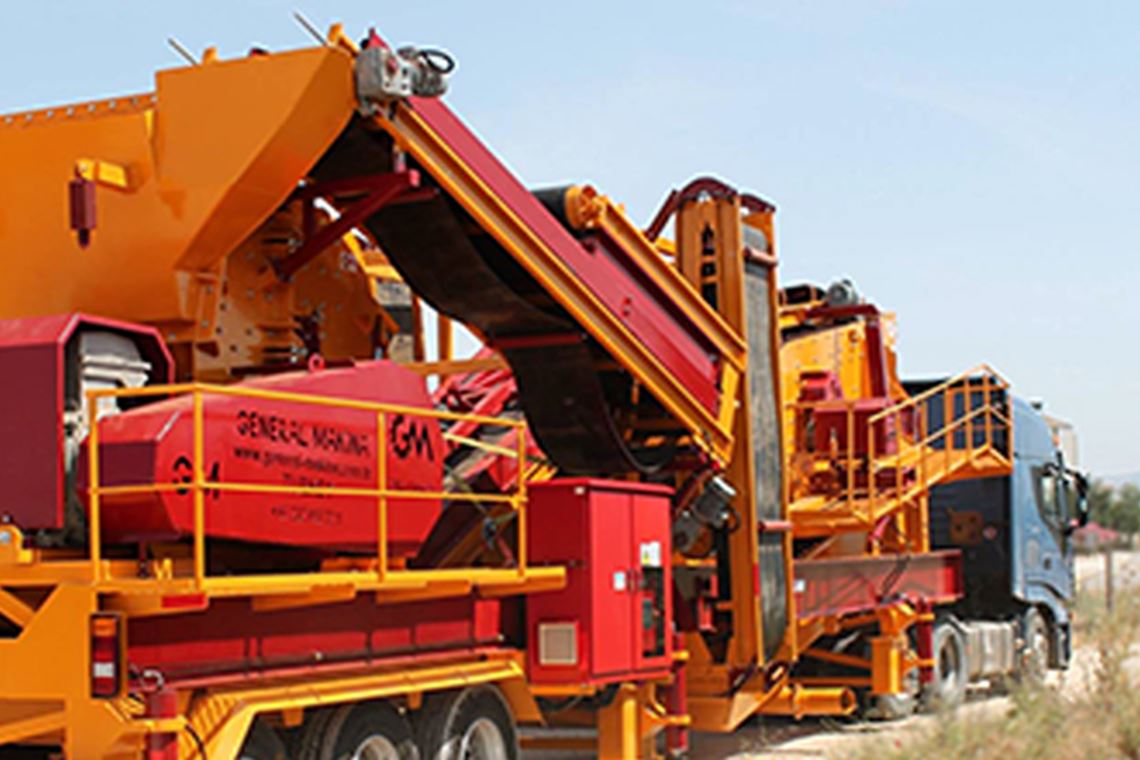

 Conveyor Belts System


Mobile Conveyor Belts are perfectly adapted to portable facilities.
It has technological advantages such as automatic installation and frequency control.

The main advantages of Mobile Conveyor Belts are as follows:
  • It is assembled in 15 minutes or collected for shipping position.
  • Drive system works with geared motor, and a frequency system can be added.
  • Top closing, and dust removal unit can be added.
  • Material discharge areas and rollers are covered with rubber.
  • Automatic lubrication and cycle counting system can be added.
  • Magnetic protection system can be added.
GNR - MC110 Mobile Jaw Crusher

Mobile Chassis System


Mobile Chassis carries all the equipment on it and gives the facility the mobility feature
The mobile chassis, which is the work of General Makina engineering, is compatible with all towing construction machines.

The main advantages of the Mobile Chassis system are,
  • It carries the whole plant on a single platform, so it can be used safely in more than one project, Unlike fixed crushing and screening plants.
  • It is compatible with Highway's standard dimensions and signaling (traffic lights) systems in accordance with traffic regulations.
  • It has a standard double axel wheel system; the length of the chassis and the number of axle wheels are increased according to the weight of the facility it will carry.
  • Chassis structure is A1 quality iron and steel. Joint areas are strengthened with an extra welding process.
  • Brake control system is pneumatic.
  • Installation can be completed in 15 minutes with the hydraulic support system.
GNR - MC110 Mobile Jaw Crusher

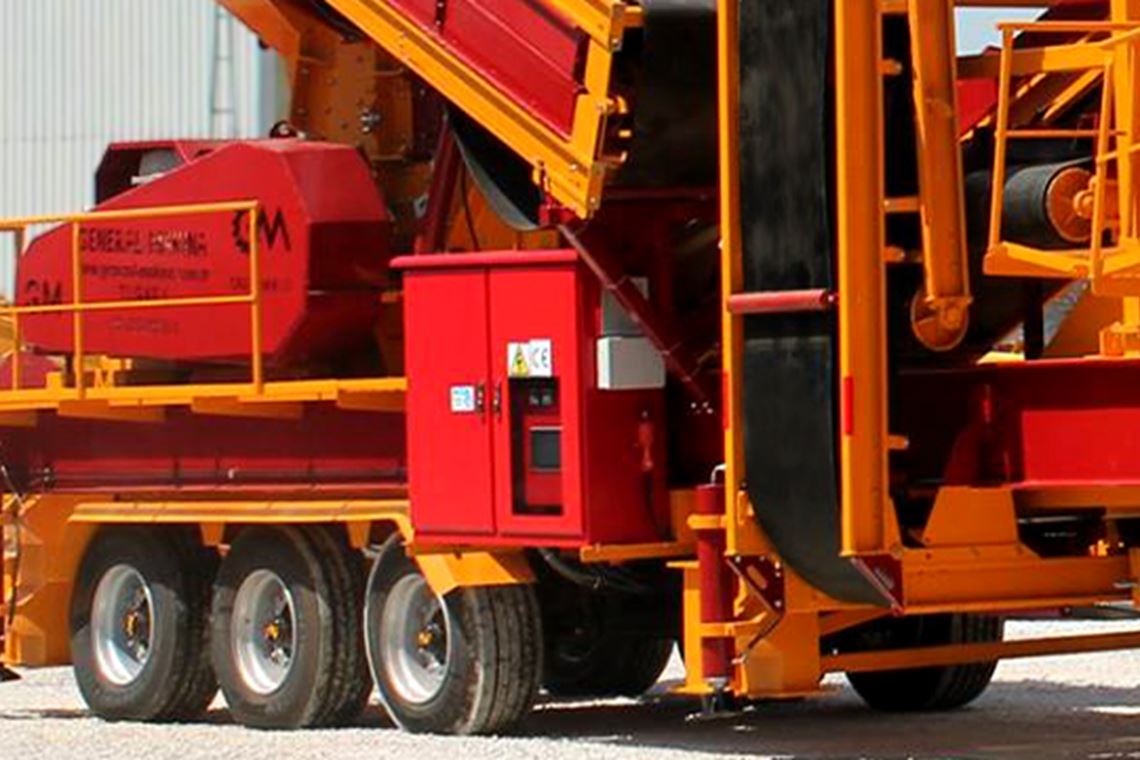

Control Panel System


The Mobile Control Panel is the brain of the facility that operates the whole facility.
The performance of the plant equipment is determined by the mobile control panel.

The general features of the Mobile Control Panel are:
  • It is suitable to work with standard electric means or generator energy.
  • It can work with 50 Hz and 60 Hz frequency units.
  • Emergency stop system and critical situation sound and light warning systems can be added.
  • With the soft smart starter system, energy savings can be achieved in the crushers as an option.
  • With the extra frequency control unit, the speeds of the feeder, conveyor belts, and vibrating screen can be optimized.
  • It is quite easy to control the facility with the touchscreen control system.
  • Remote control or internet connection tracking system can be added.
  • The outer body of the panel is waterproof and dustproof with locks on covers.
