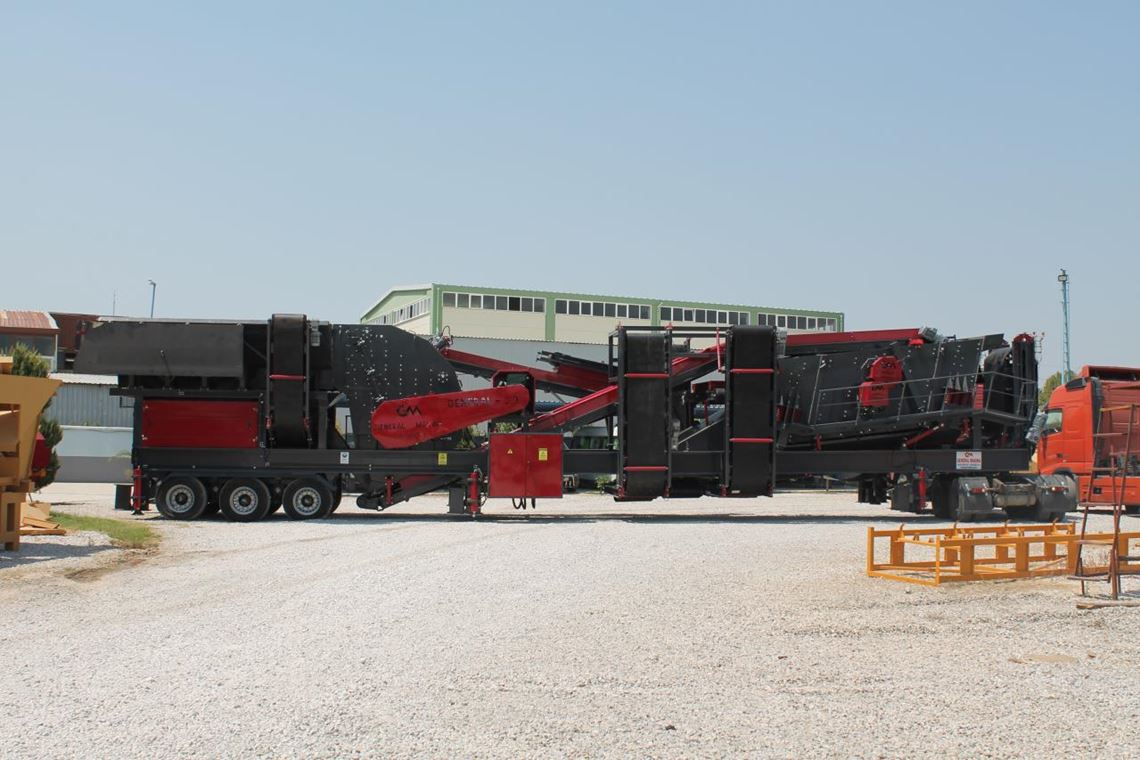

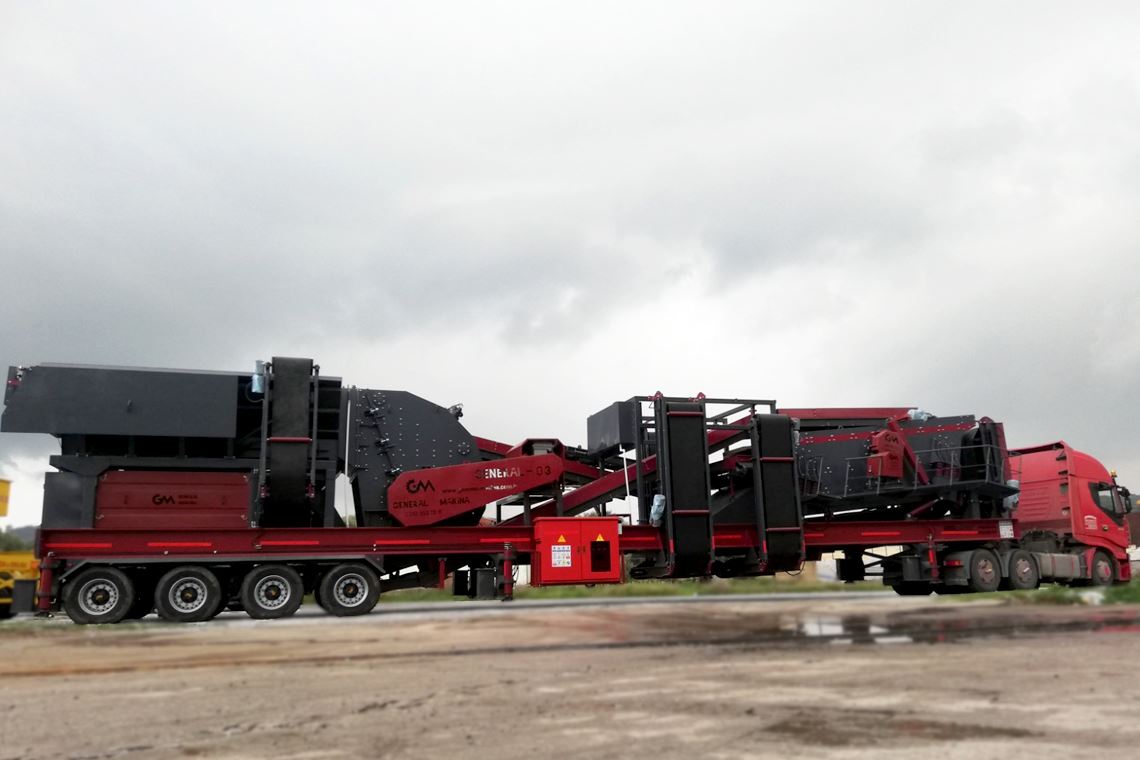

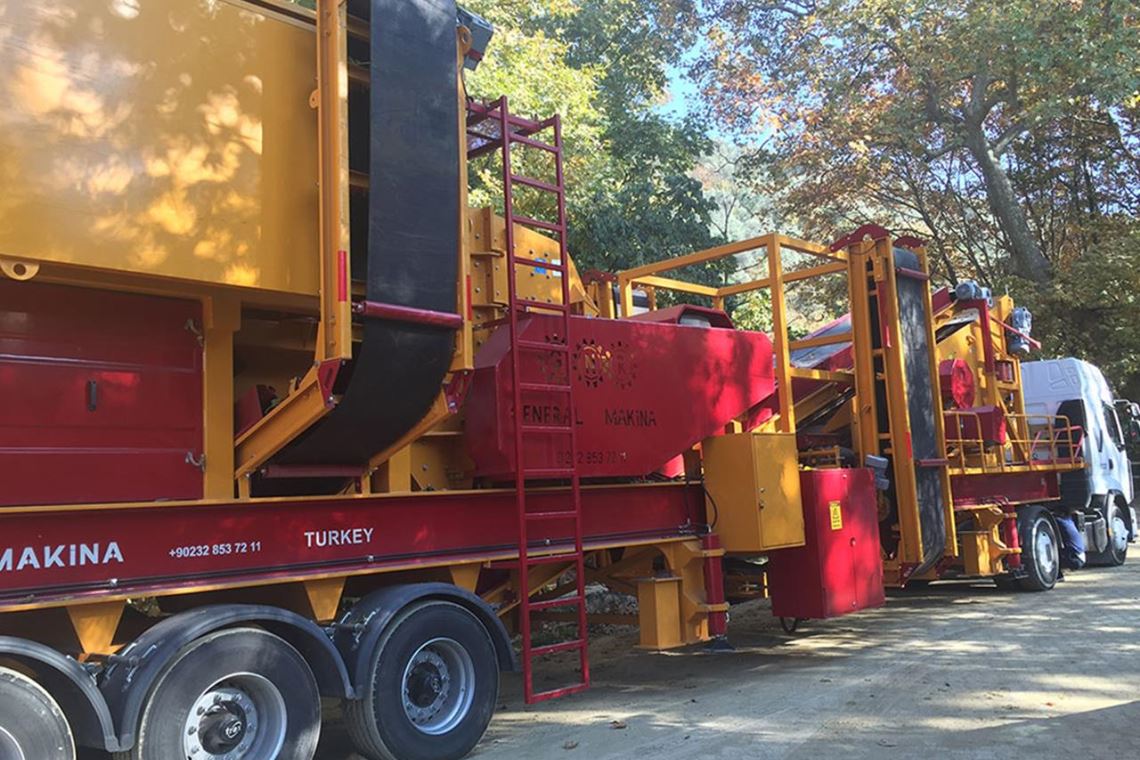

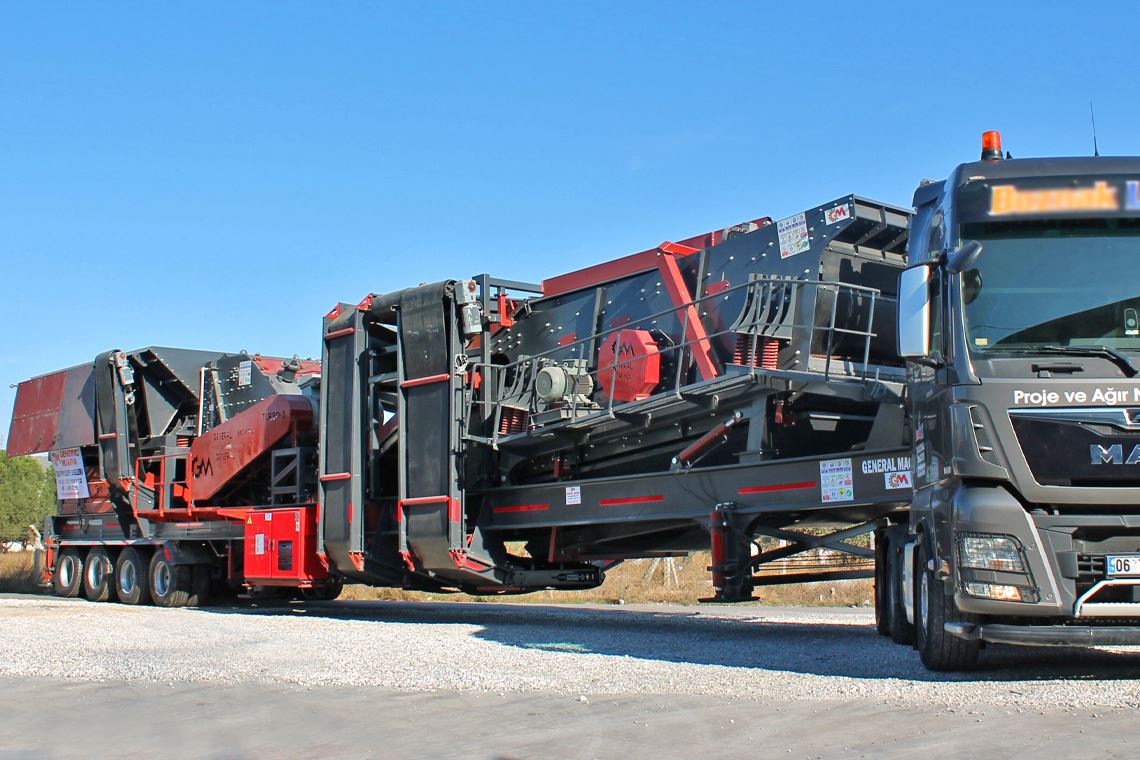

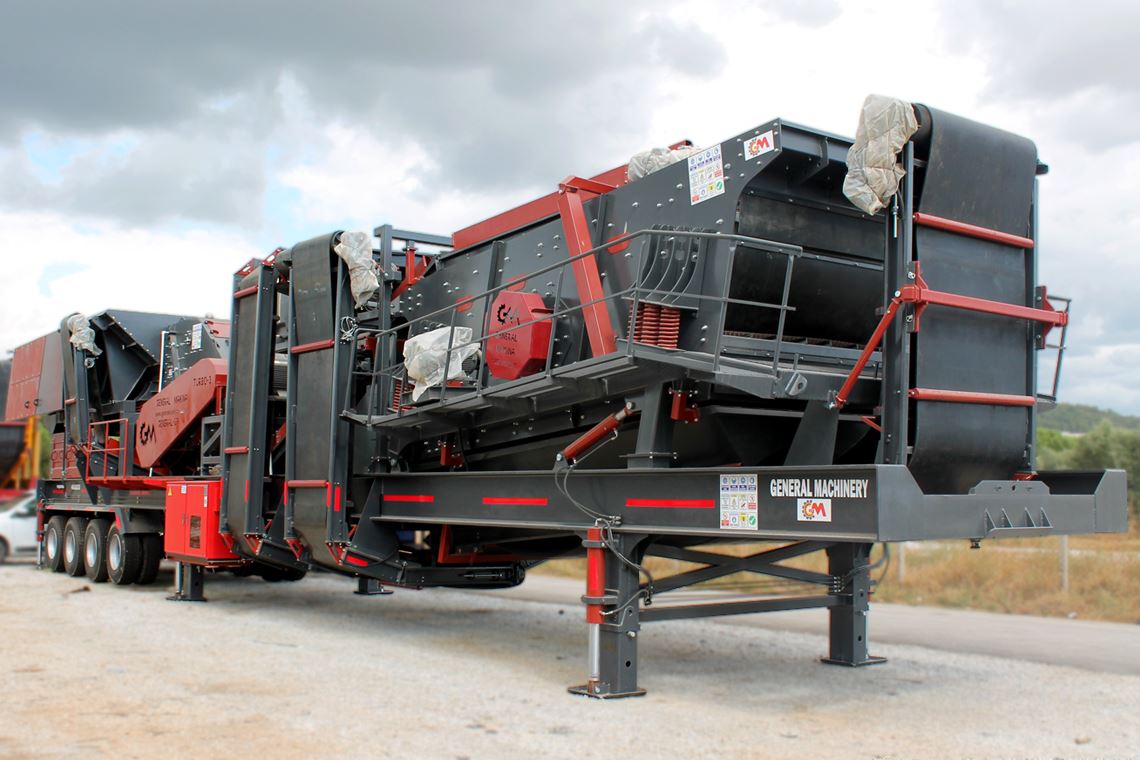

Mobile Crusher General 03
General Makina, one of the mobile crusher manufacturer leaders, has superior stone crushing and screening capabilities at maximum mobility.
Combining many conveniences thanks to its unique design, General 03 is manufactured in international standards with a 4-axle mobile body for trouble-free transfers. It has foldable hydraulic straps and hydraulic fixing legs to reduce installation costs and time spent on assembly.
Primary Impact Crusher (GNR PDK03), with a 1000mm feeding size, reduces the stone and mine materials by about 75 percent to 0.5mm in size. This ratio, which can vary depending on the type of stone and mine to be crushed, can also be decreased to 0.25 mm.
General 03 Mobile Crushing Plant, which you can consider using in all road construction, concrete production, construction, and transformation projects, can provide crushed stone with a capacity of 350 tons/hour.
Combining many conveniences thanks to its unique design, General 03 is manufactured in international standards with a 4-axle mobile body for trouble-free transfers. It has foldable hydraulic straps and hydraulic fixing legs to reduce installation costs and time spent on assembly.
Primary Impact Crusher (GNR PDK03), with a 1000mm feeding size, reduces the stone and mine materials by about 75 percent to 0.5mm in size. This ratio, which can vary depending on the type of stone and mine to be crushed, can also be decreased to 0.25 mm.
General 03 Mobile Crushing Plant, which you can consider using in all road construction, concrete production, construction, and transformation projects, can provide crushed stone with a capacity of 350 tons/hour.

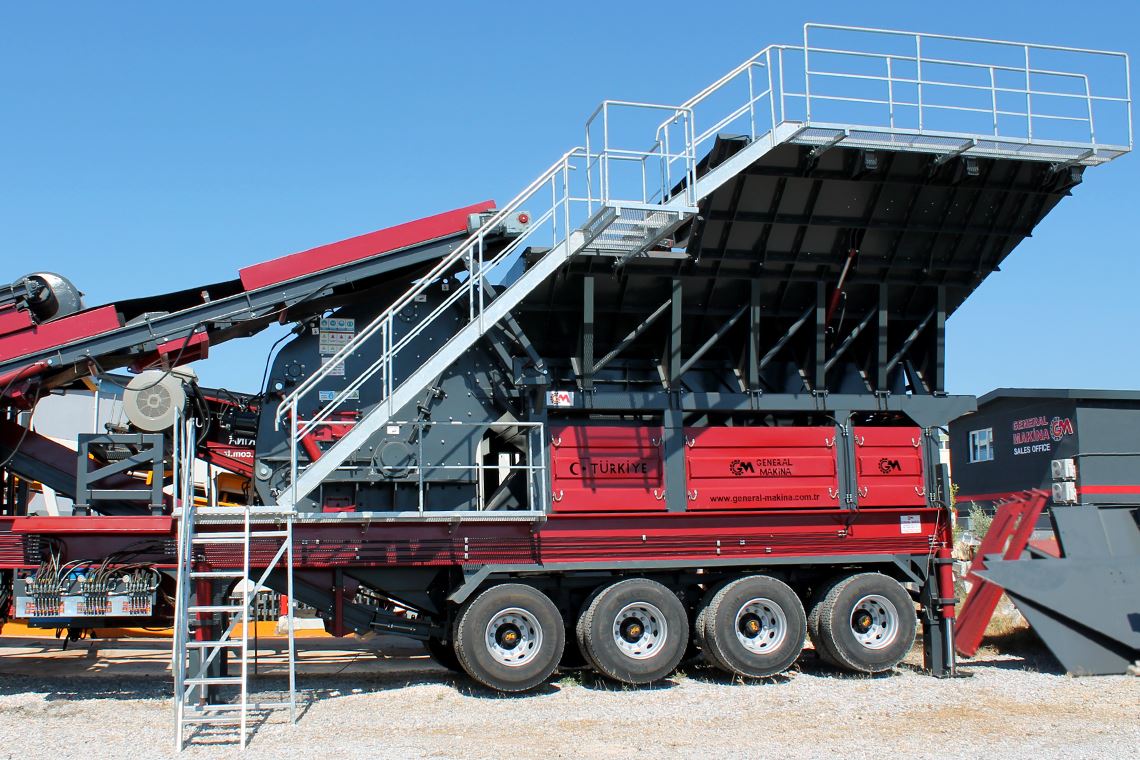

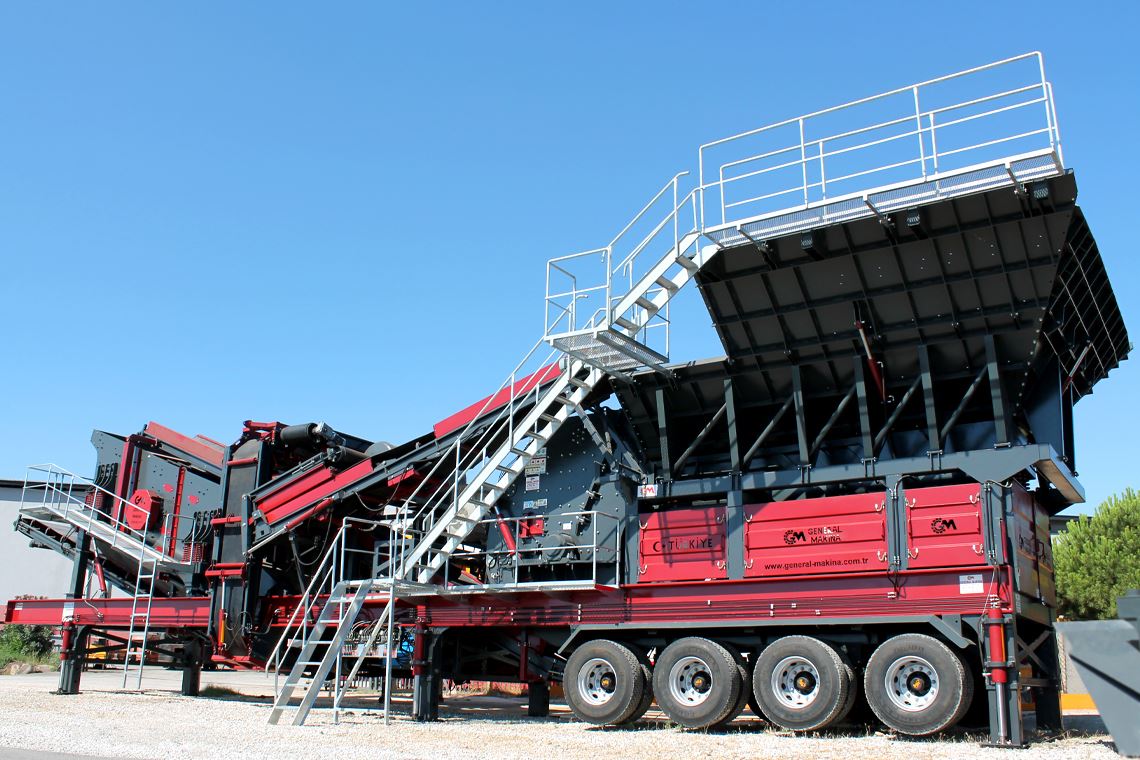

Feeder System
Thanks to its new design adapted to the mobile system, it is effortless to install and use. Moreover, it has the same characteristic as fixed feeders in terms of resistance to harsh construction site conditions. It can separate the soil in the run-of-the-mill with the by-pass scalping screen.
It is used to feed all mineral–stone materials and recycle materials of different hardness to the crusher.
- Side covers can be selected as classic hinged or hydraulic.
- Body armors are wear-resistant and replaceable.
- Heavy-duty springs adapted to the mobile system.
- The drive system can be made with single or twin Vibro motors.
- Material feeding speed can be adjusted with the Vibro drive control system.
- Automatic lubrication system can be selected for ease of maintenance.
- Ease of sieving with single and double-stage bypass grid system

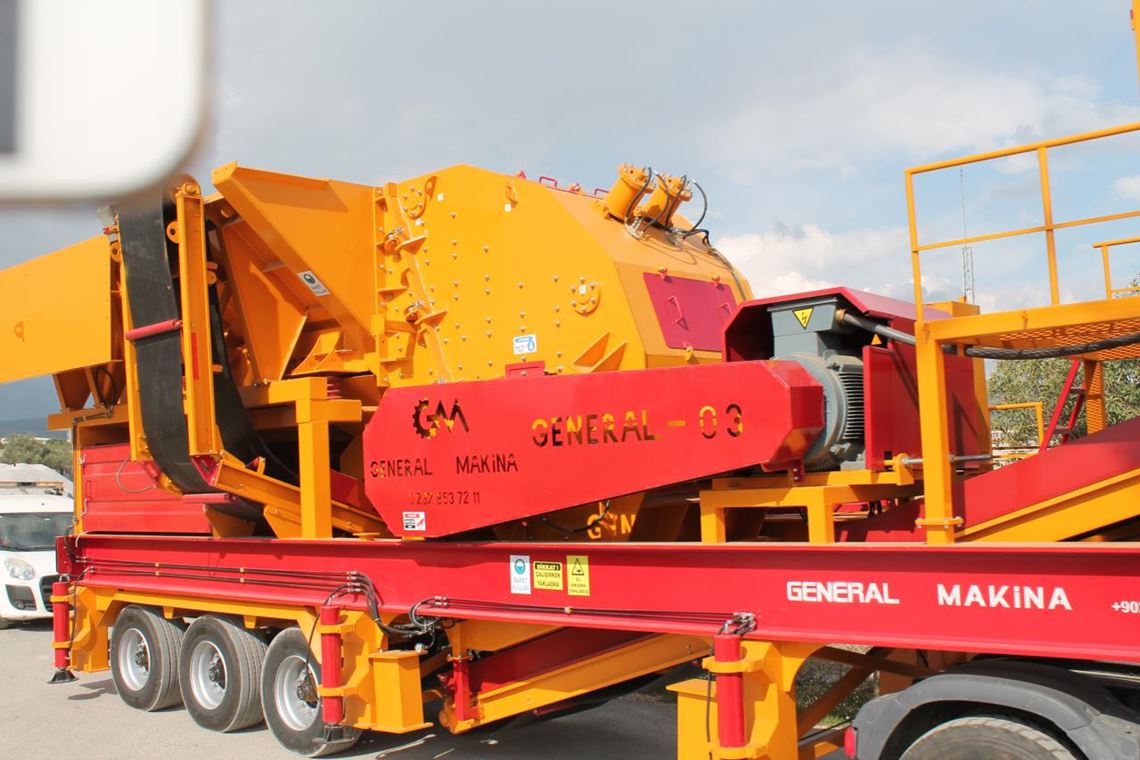

Crushing System
A redesigned mobile crusher system from the ground up with a focus on maximum efficiency and minimum cost that powers the plant.
Mobile Primary Impact Crusher has adapted to the portable structure without decreasing the capacity.
It crushes stones - rocks and mineral minerals of all hardness. Wear life varies accordingly.
This machine was produced with the experience we have gained for more than 45 years:
- Both primary and secondary crushing in one machine
- Classic dual or GPS Series Triple pendulum system can be selected.
- It has a high reduction ratio.
- Low energy consumption can be achieved with the Soft Starter preference.
- It has a reinforced body structure that keeps the integrity of the machine at the highest level.
- Body armor linings and rotor pallets are replaceable.
- Final product can be controlled easily with the three rear adjustment blocks.

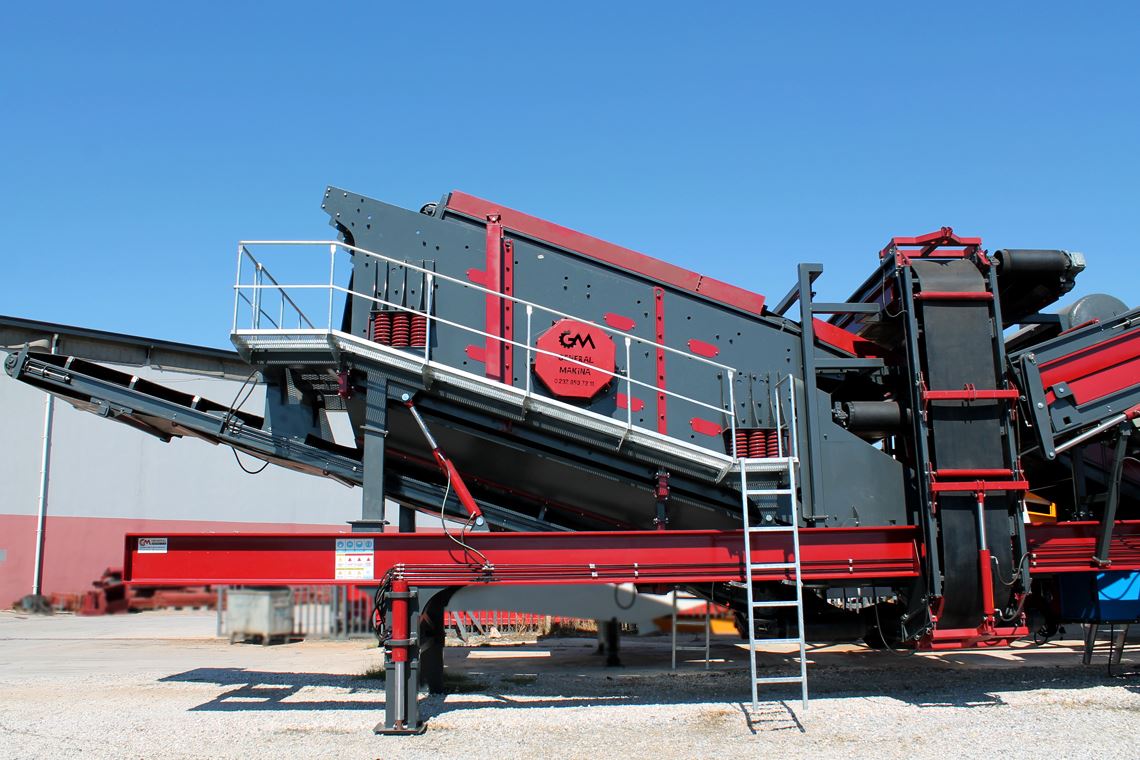

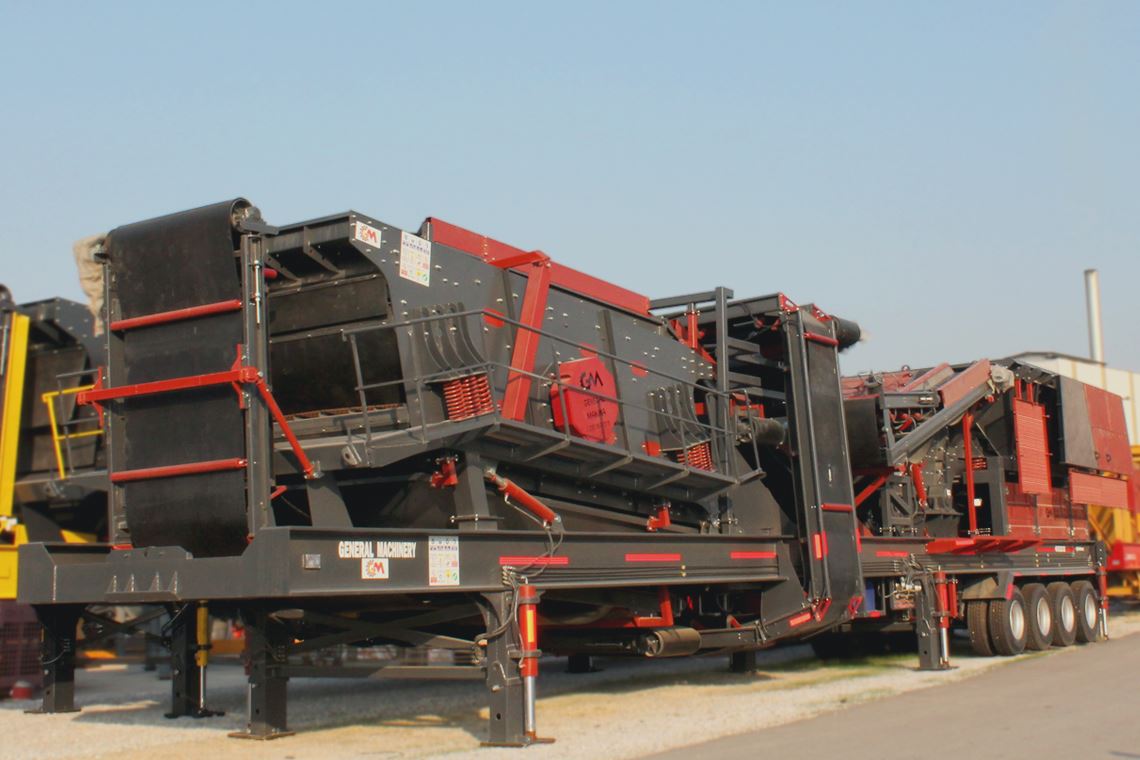

Vibrating Screen System
The mobile vibrating screen has been designed with high efficiency to serve even in the most severe conditions.
Its screening capacity differs, but it is adaptable to all stone types and mineral materials.
Mobile Vibrating Screen features are as follows:
- It works in synchronization with the crusher at maximum efficiency.
- Body components are boltless without welding.
- The sieve wires are steel and imported, they are easy to change.
- The drive system can be selected with Vibro motors or a conventional camshaft drive.
- Sieve slope can be adjusted optionally with a hydraulic system.
- Compatible with all General Makina crushing and screening plants.
Conveyor Belts System
Mobile Conveyor Belts are perfectly adapted to portable facilities.
It has technological advantages such as automatic installation and frequency control.
The main advantages of Mobile Conveyor Belts are as follows:
- It is assembled in 15 minutes or collected for shipping position.
- Drive system works with geared motor, and a frequency system can be added.
- Top closing, and dust removal unit can be added.
- Material discharge areas and rollers are covered with rubber.
- Automatic lubrication and cycle counting system can be added.
- Magnetic protection system can be added.

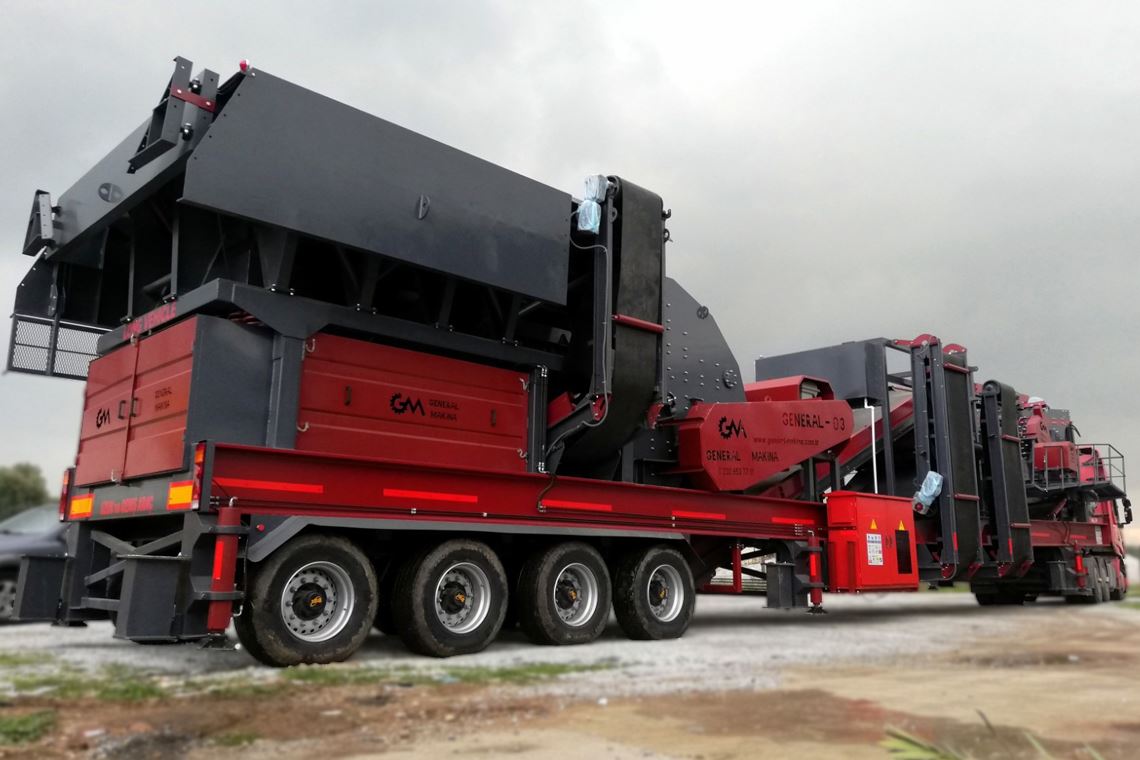

Mobile Chassis System
Mobile Chassis carries all the equipment on it and gives the facility the mobility feature
The mobile chassis, which is the work of General Makina engineering, is compatible with all towing construction machines.
The main advantages of the Mobile Chassis system are,
- It carries the whole plant on a single platform, so it can be used safely in more than one project, Unlike fixed crushing and screening plants.
- It is compatible with Highway's standard dimensions and signaling (traffic lights) systems in accordance with traffic regulations.
- It has a standard double axel wheel system; the length of the chassis and the number of axle wheels are increased according to the weight of the facility it will carry.
- Chassis structure is A1 quality iron and steel. Joint areas are strengthened with an extra welding process.
- Brake control system is pneumatic.
- Installation can be completed in 15 minutes with the hydraulic support system.
Control Panel System
The Mobile Control Panel is the brain of the facility that operates the whole facility.
The performance of the plant equipment is determined by the mobile control panel.
The general features of the Mobile Control Panel are:
- It is suitable to work with standard electric means or generator energy.
- It can work with 50 Hz and 60 Hz frequency units.
- Emergency stop system and critical situation sound and light warning systems can be added.
- With the soft smart starter system, energy savings can be achieved in the crushers as an option.
- With the extra frequency control unit, the speeds of the feeder, conveyor belts, and vibrating screen can be optimized.
- It is quite easy to control the facility with the touchscreen control system.
- Remote control or internet connection tracking system can be added.
- The outer body of the panel is waterproof and dustproof with locks on covers.
