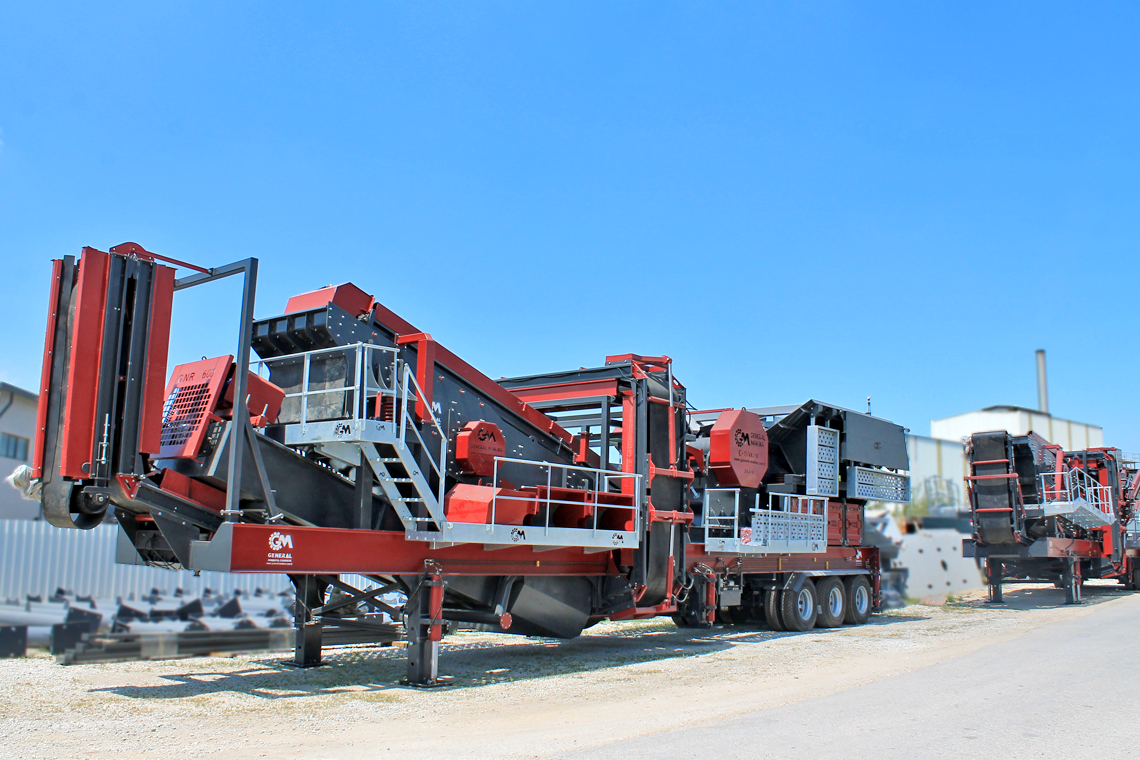

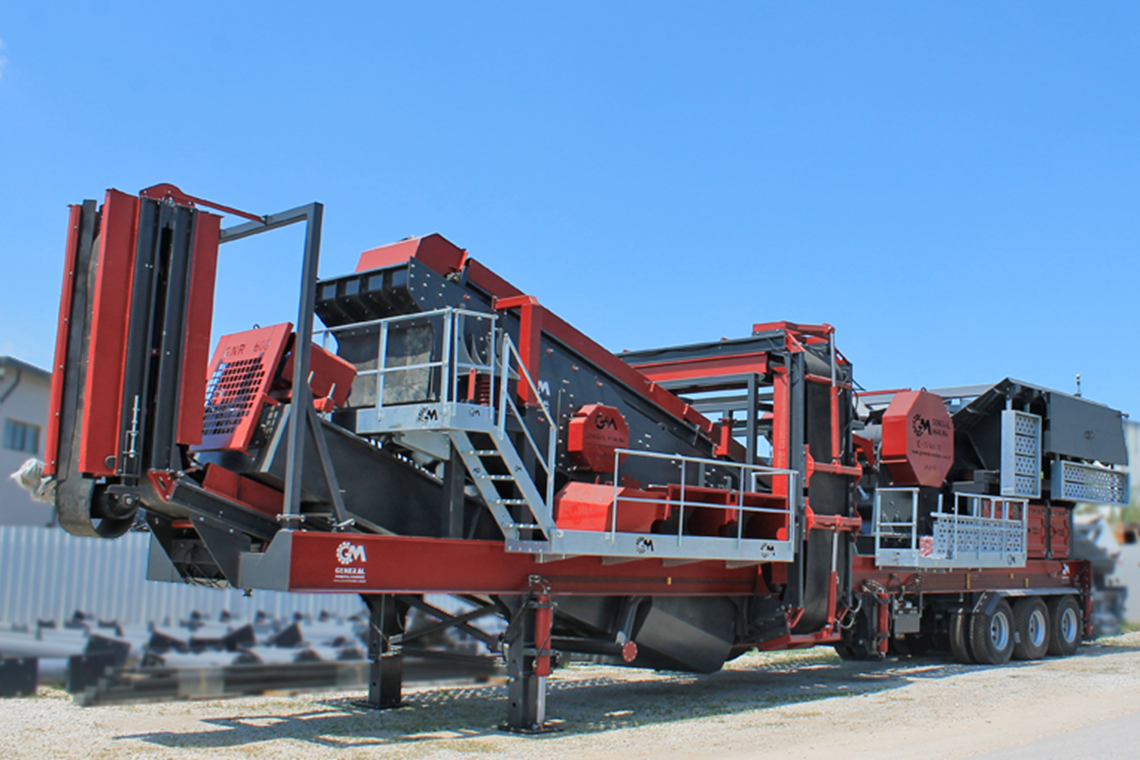

Mobile 90 Jaw Crushing & Washing Screening Plant

Mobile 90 Jaw Crushing and Washing Screening Plant includes these equipment and machines in a single chassis;

• 90 Feeder and crusher group
• 1600 x 5000 mm 3/4 Decks washing vibrating screen
• 600 x 6000 mm Double spiral washer
• Complete hydraulic system and electrical panel, automation system
• Three-axle chassis in a twin-tire system. It is our 2025 model with a new washing technology washing in a mobile jaw crusher.

This plant offers the option of washing the run-of-mine material without reducing its size too much. It is suitable for river stones or all mineral products that are desired to be washed.
Thanks to this option, the 0-5 mm material in the crushed material does not get mixed with the water and is not wasted. This material gets washed after being roughly crushed, and sent to the secondary crusher and main product screen cleanly and the final size sand ratio is preserved and is not wasted.
In addition, a conical or impact crusher can also come in front of this facility as a secondary.

New type fully mobile crushing washing screening plants are now at General Makina!

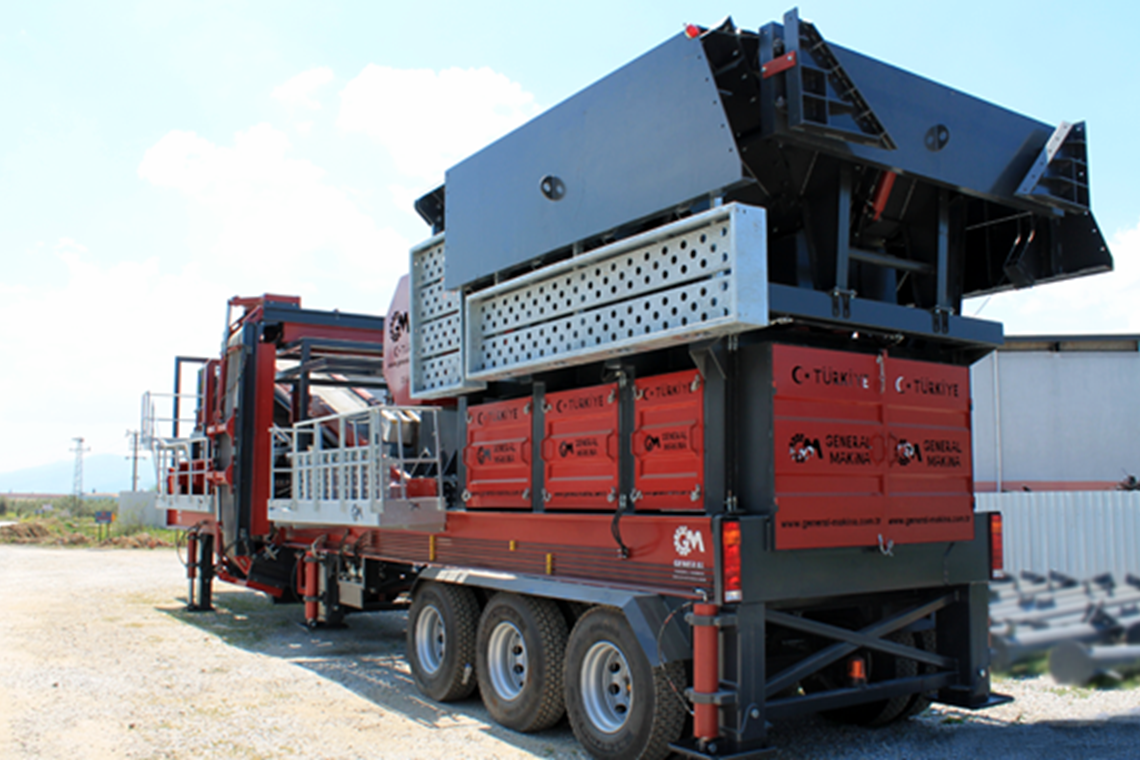

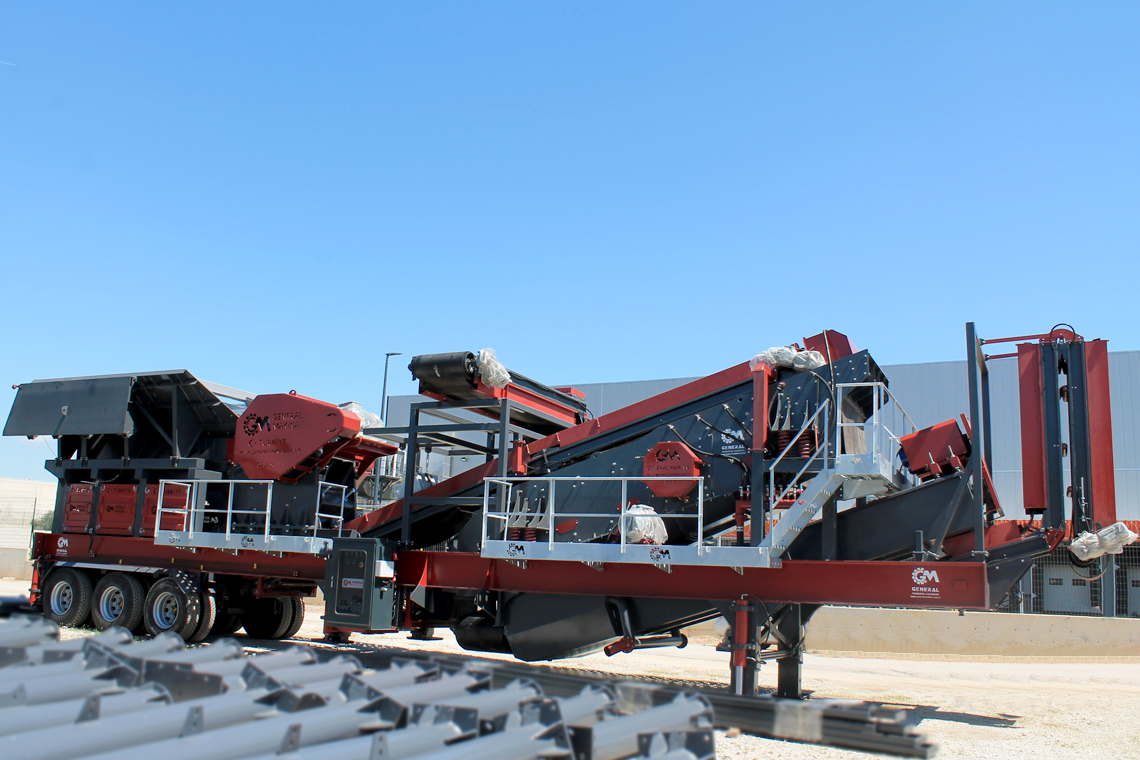

Feeder System

Thanks to its new design adapted to the mobile system, it is very easy to install and use. Moreover, it has the same characteristics as stationary feeders in terms of resistance to harsh construction site conditions.
It is used to feed all mineral - stone materials of different hardness and recycling materials to the crusher.

Installation side covers can be selected as classical hinged or hydraulic.
Body armours are wear resistant and replaceable.
Heavy duty springs adapted to mobile system.
The drive system can be made with single or twin vibro motors.
Material feeding speed can be adjusted with vibro drive control system.
Automatic lubrication system can be selected for ease of maintenance.

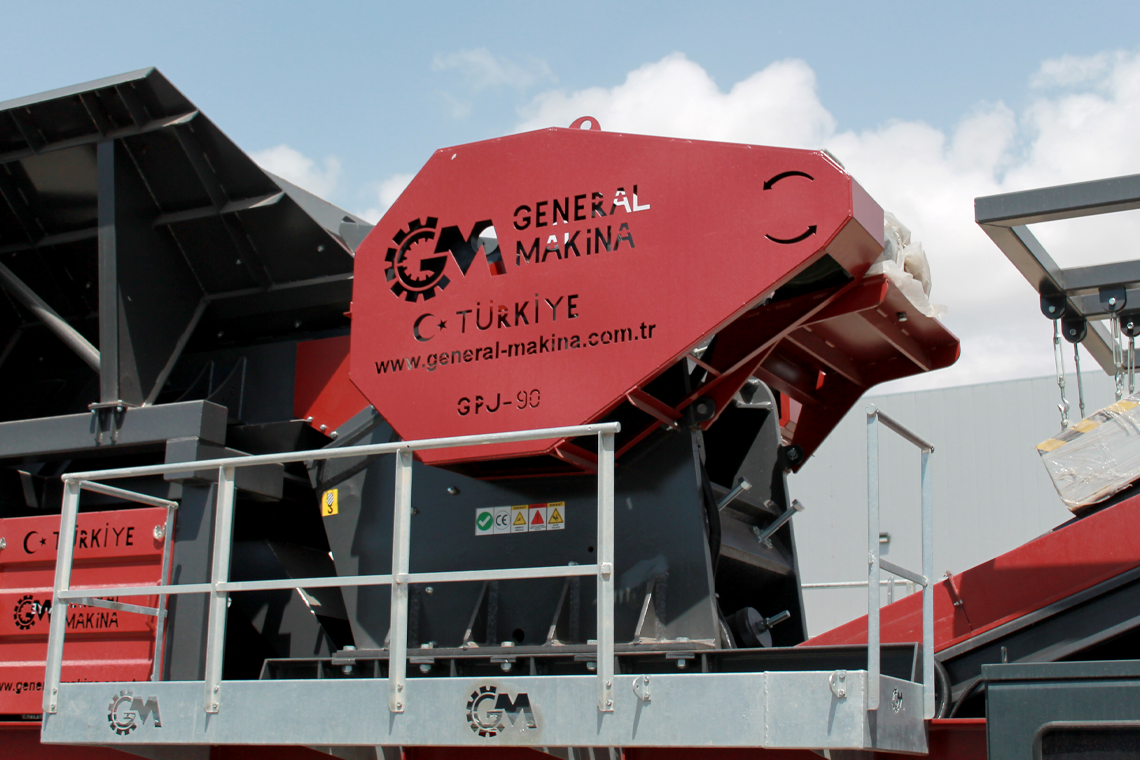

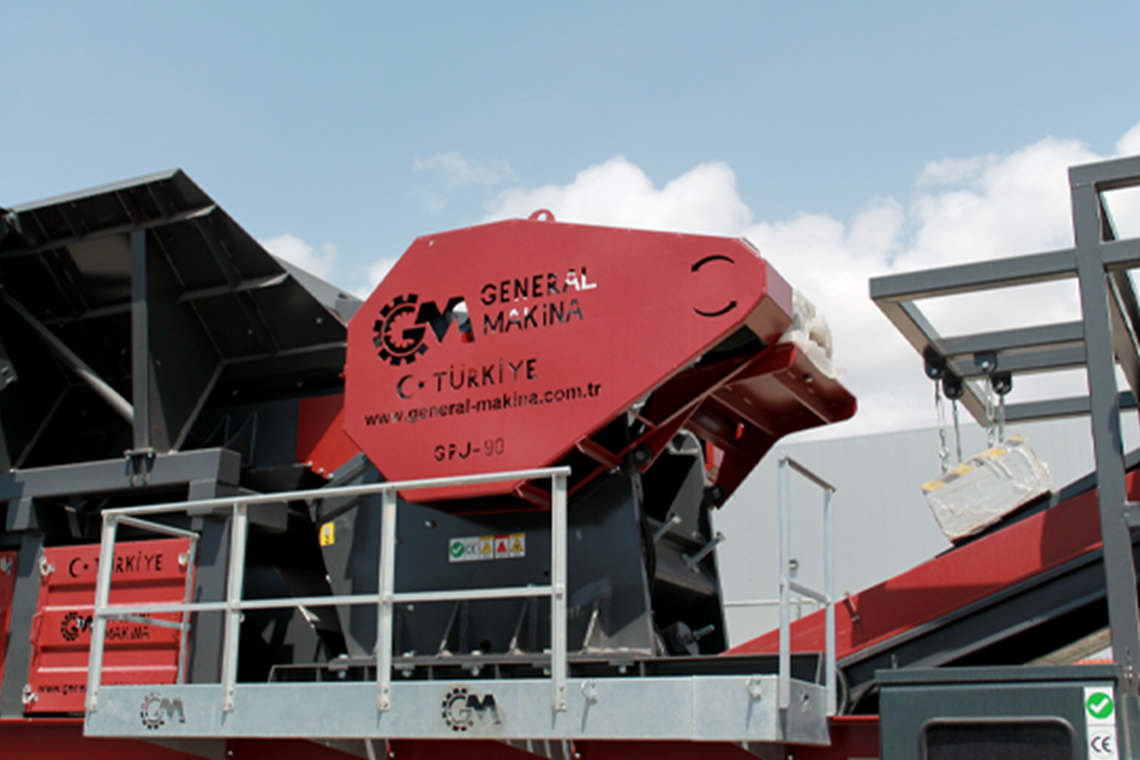

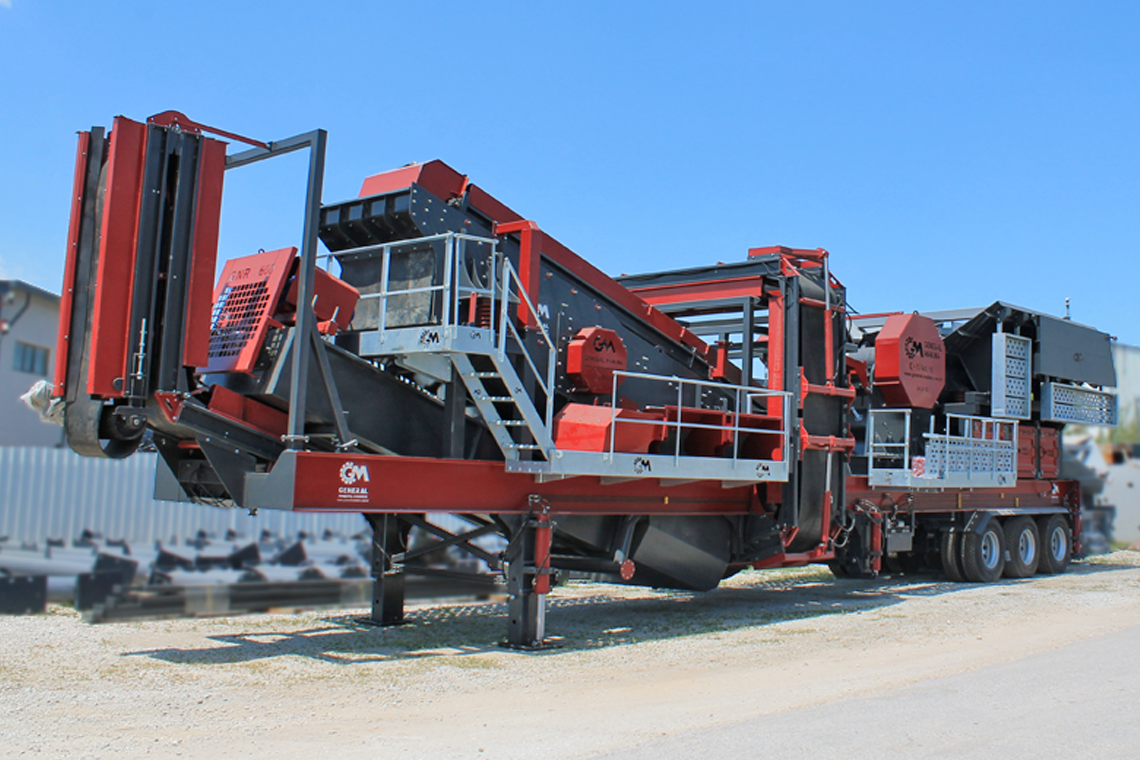

Mobile Jaw Crusher System

The mobile crusher system, which gives the plant its power, is redesigned from the very beginning with a focus on maximum efficiency and minimum cost.
With different types of mobile crushers, the character of the plant is also determined.
Mobile Primary Jaw Crusher has adapted to the portable structure without compromising capacity.
It is the most preferred crusher in the primary stage for crushing raw material of different hardness in stone crushing, screening and washing plants.
It is specialised in crushing hard and abrasive stone - mineral materials with high silica content.

Some of the many features of the Mobile Primary Jaw Crusher are as follows,

Primary or secondary models can be selected according to the material to be crushed.
Thanks to the jaw adjustment, the size of the material to be crushed can be changed.
It has a safety system against excessive strain.
Jaw liners and side wall abrasion seals are easily replaceable.
In jaw liners, the head and lower part can be turned to save spare parts costs.
Automatic lubrication can be included in the system.

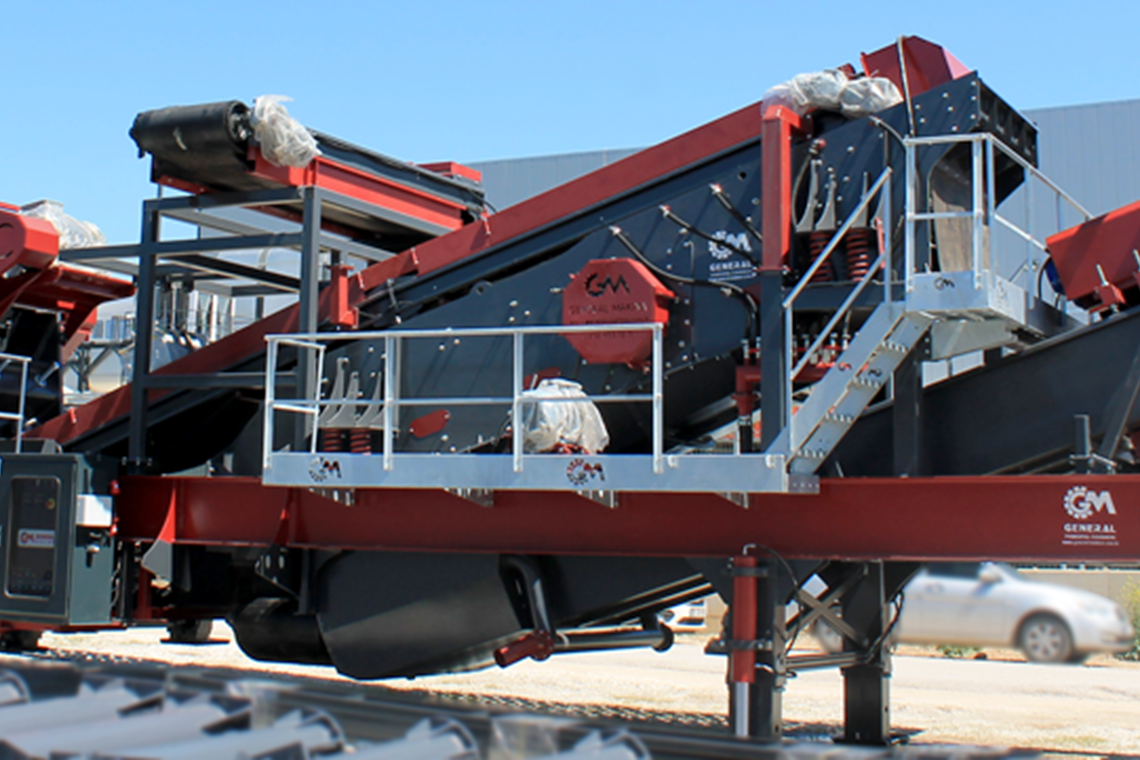

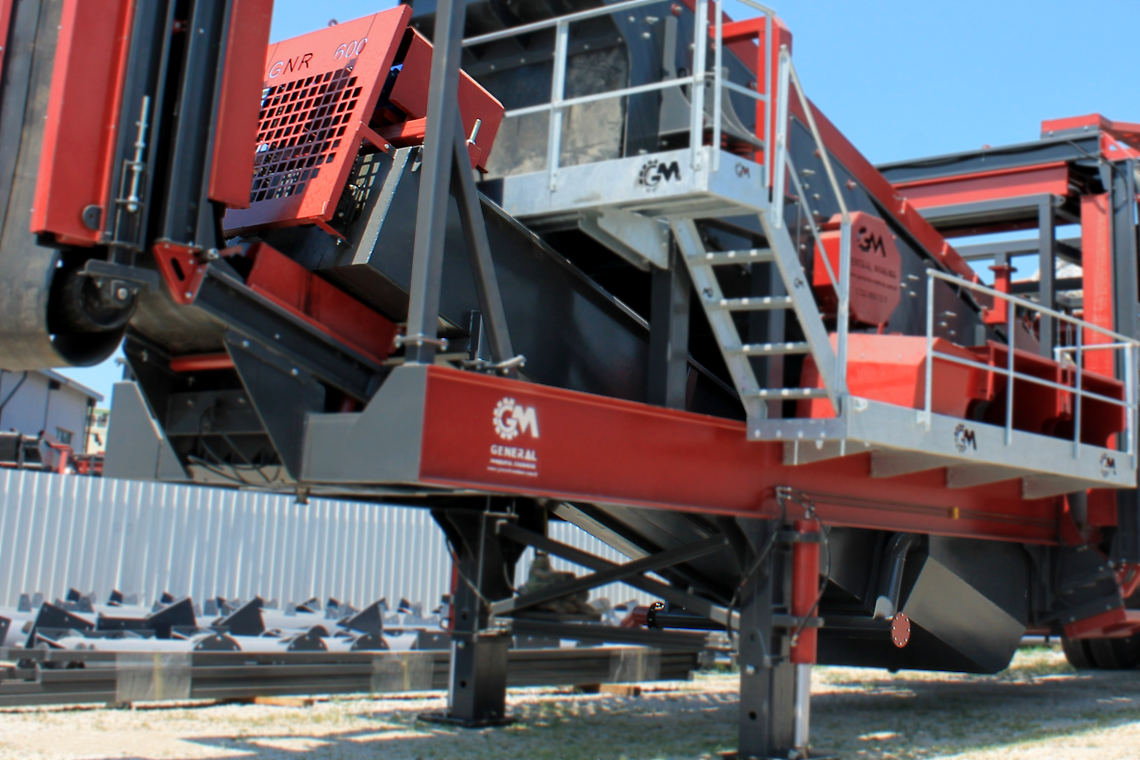

Washing Vibrating Screen System

The Mobile Washer Vibrating Screen is designed to provide increased efficiency and service even under the most severe conditions.
Evenly placed nozzles wash the screened materials regularly with pressurised water.

Mobile Washing Vibrating Screen features are as follows;

It works in synchronisation with the crusher at maximum efficiency.
Body components are bolted without welding.
Screen wires are steel and imported, easy to change.
Optionally polyurethane screen wires can be used.
Sieve floors are equipped with washing nozzles.
The drive system can be selected with vibro motors or conventional eccentric shaft drive.
Screen slope can be optionally adjusted with hydraulic system.
Compatible with all General Makina crushing, washing and screening plants.

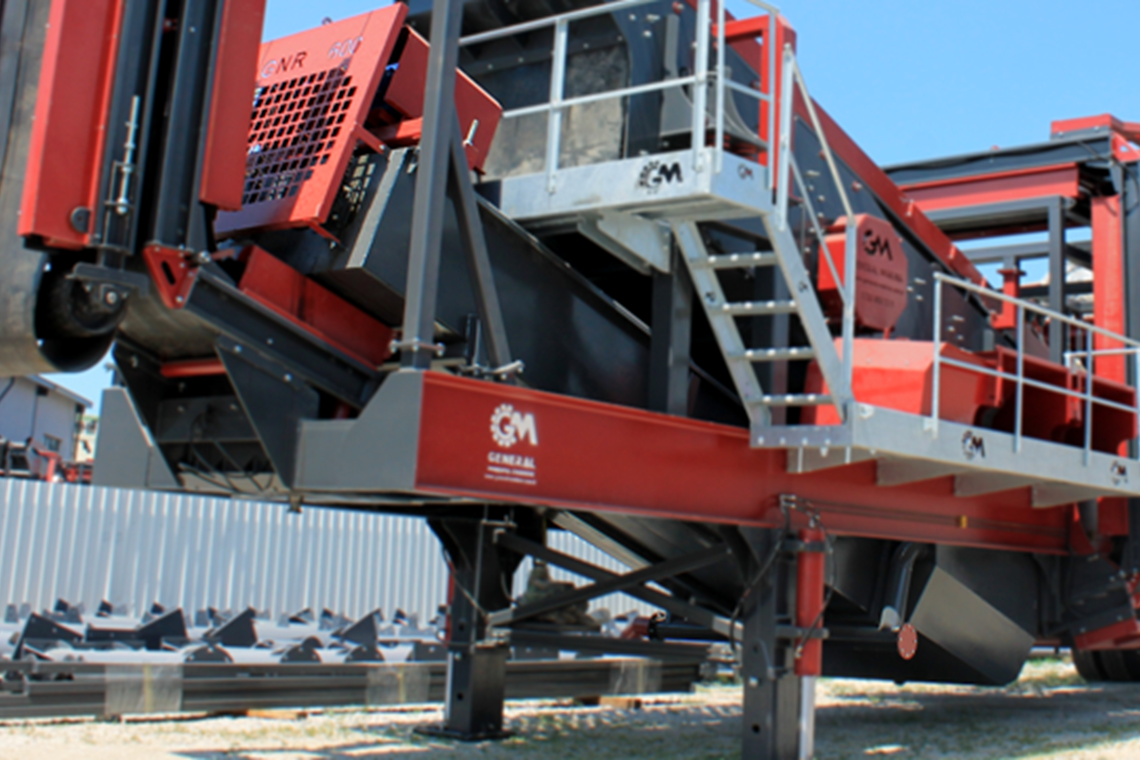

Washing System

The Screw Washer, which is one of the most effective equipment in aggregate washing process, is well adapted to the plant layout in the mobile system without sacrificing performance in the mobile chassis. In addition, it works in full synchronisation with the mobile screen and performs uninterrupted sand washing.
Mobile Screw Washer features are as follows,

It offers you the performance of a stationary screw washer with the advantage of a mobile system.
Washer helical shafts have replaceable rubber heads against abrasion.
Each helical shaft has its own motorised, reducer drive unit.
Frequency control unit can be added for precise production.
Removes and separates unwanted dirt from the material.
It can wash all materials up to 1 millimetre without any problem.
Adaptable to all General Makina washing screens.
Easy and fast maintenance, long operating life.

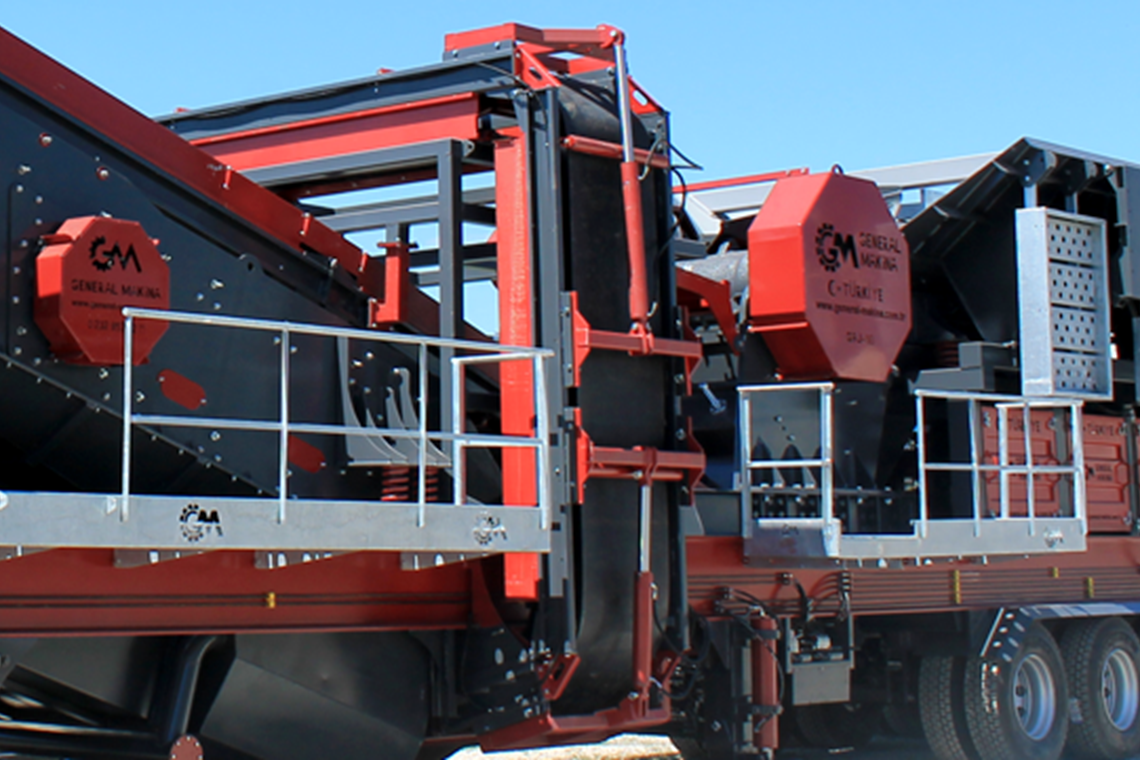

Conveyor Belt System

Mobile Conveyor Belts are perfectly adapted to portable plants.

They are manufactured using bolted reinforced chassis and long-life rollers and quality belt tyres and have technological advantages such as automatic installation and frequency control.

The main advantages of Mobile Conveyor Belts are as follows:

15 minutes for installation or collection for transport position.
Drive system works with gearmotor, frequency system can be added.
Top closing, dedusting unit can be added.
Material discharge areas and rolls are rubber covered.
Automatic lubrication and cycle counting system can be added.
Magnetic protection system can be added.

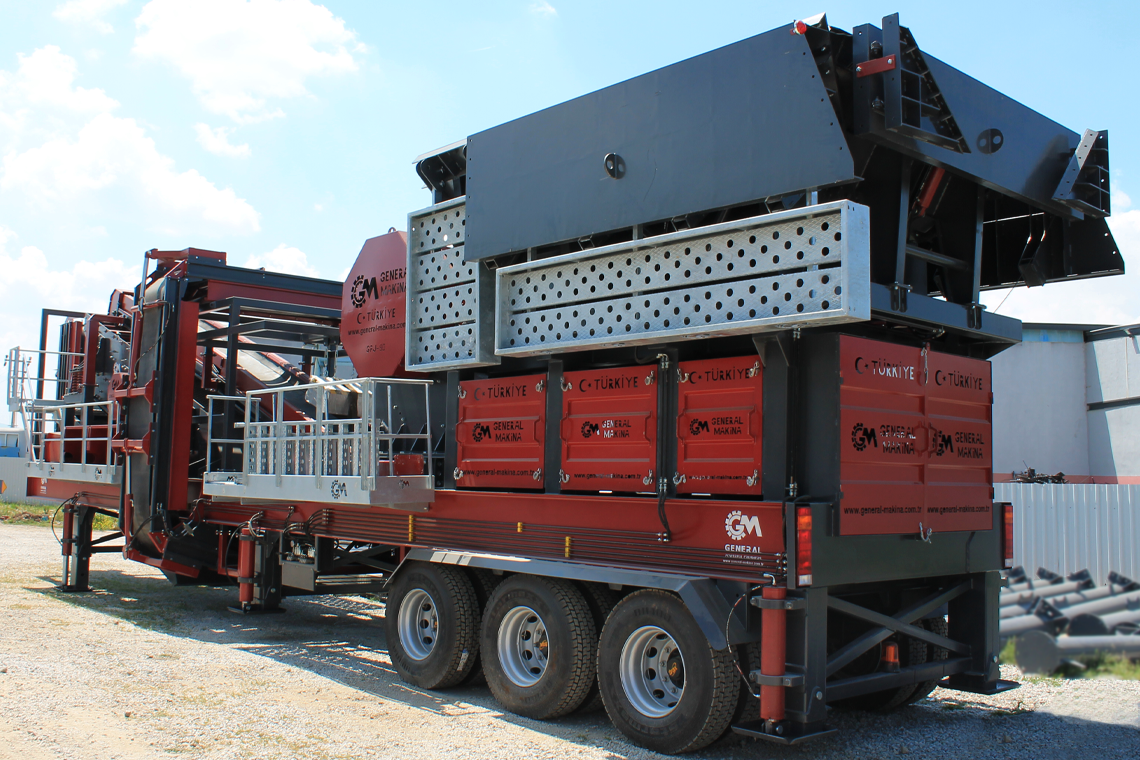

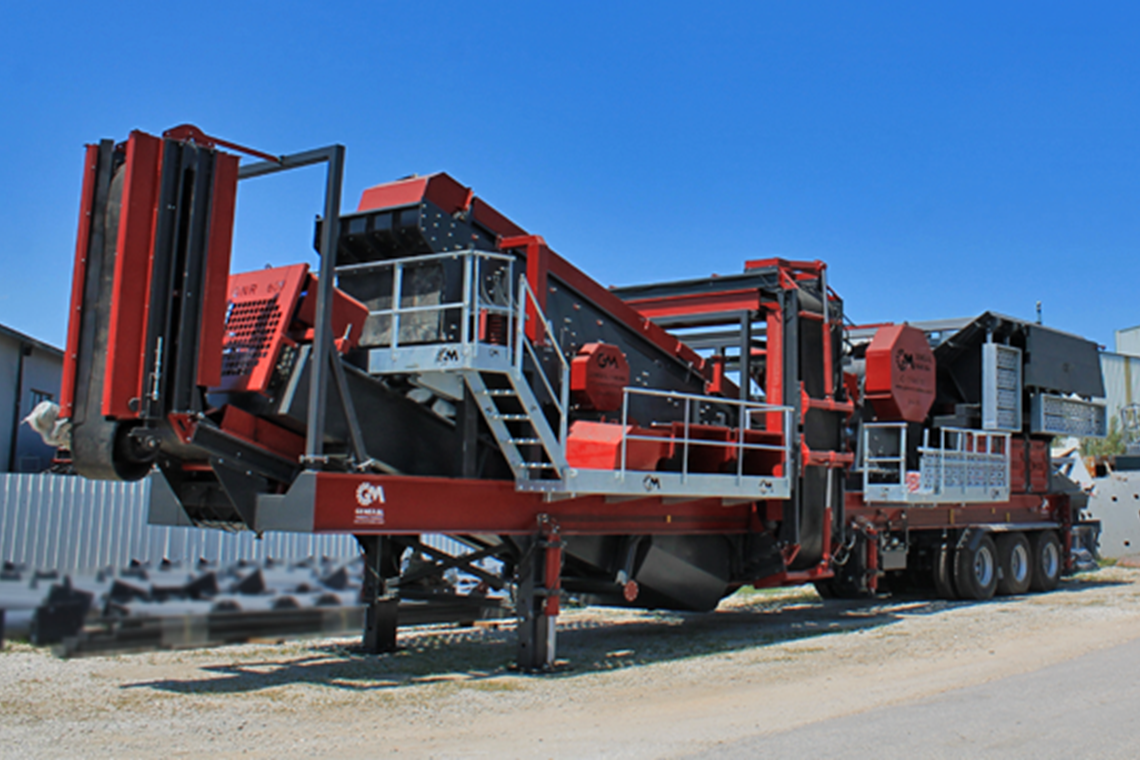

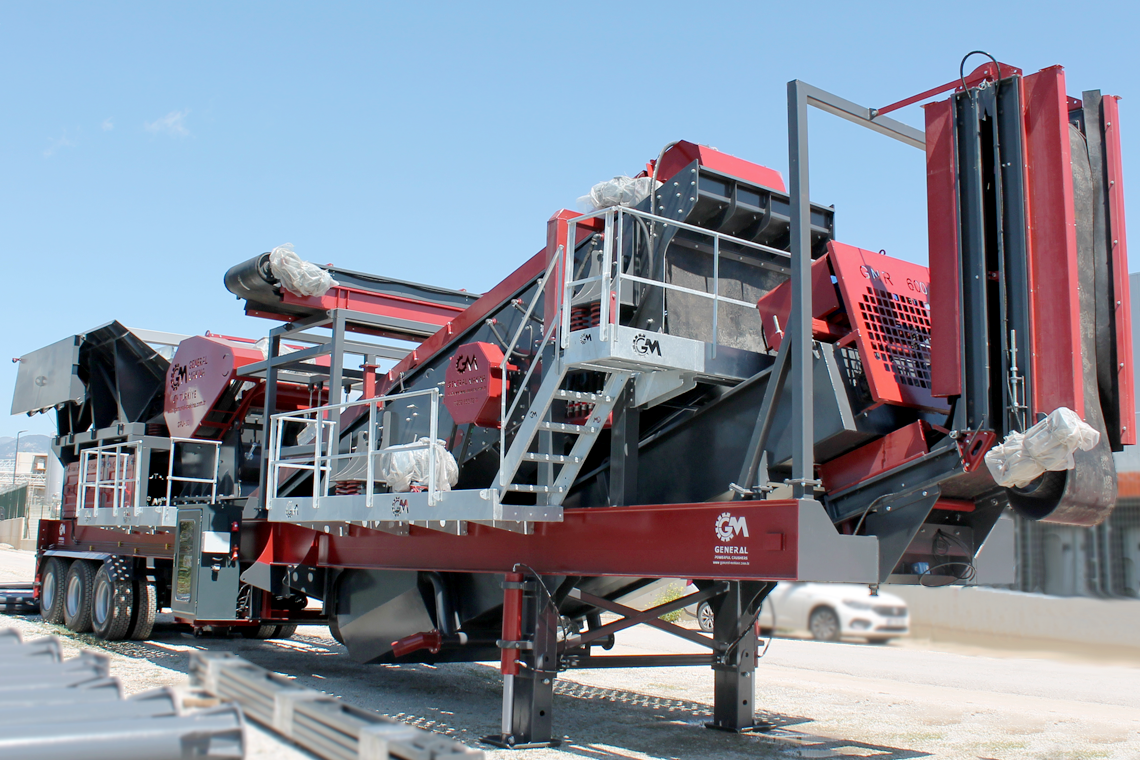

Mobile Chassis System

Mobile Chassis gives its name to the facility by carrying all equipment on it.
The mobile chassis, which is the work of General Makina engineering, is compatible with all tow trucks.

The main advantages of the Mobile Chassis system,

Unlike fixed crushing, washing and screening plants, it carries the whole plant on a single platform, so it can be used safely in more than one project.
It has dimensions and signalling (traffic lights) system in accordance with highway traffic regulations.
It has a standard three axle double wheel system.
The chassis structure is A1 quality iron steel. Joining areas are reinforced with extra welding process.
Brake control system is pneumatic.
Installation can be completed in 15 minutes with hydraulic foot system.

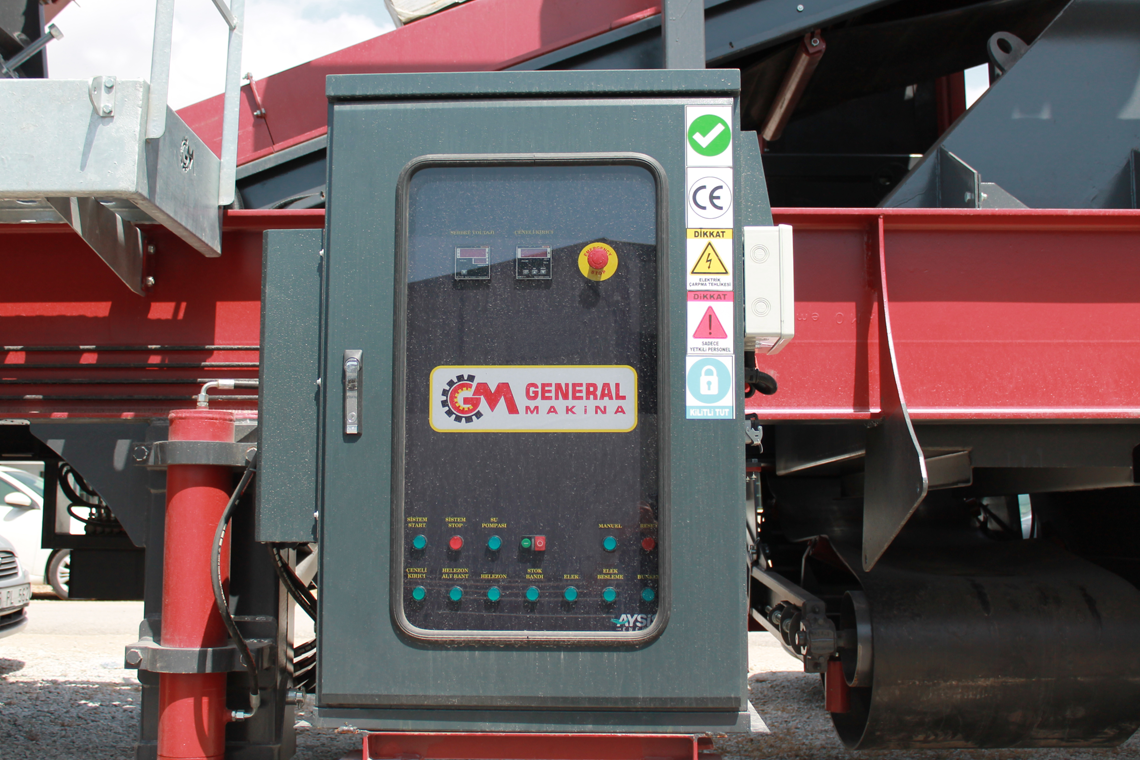

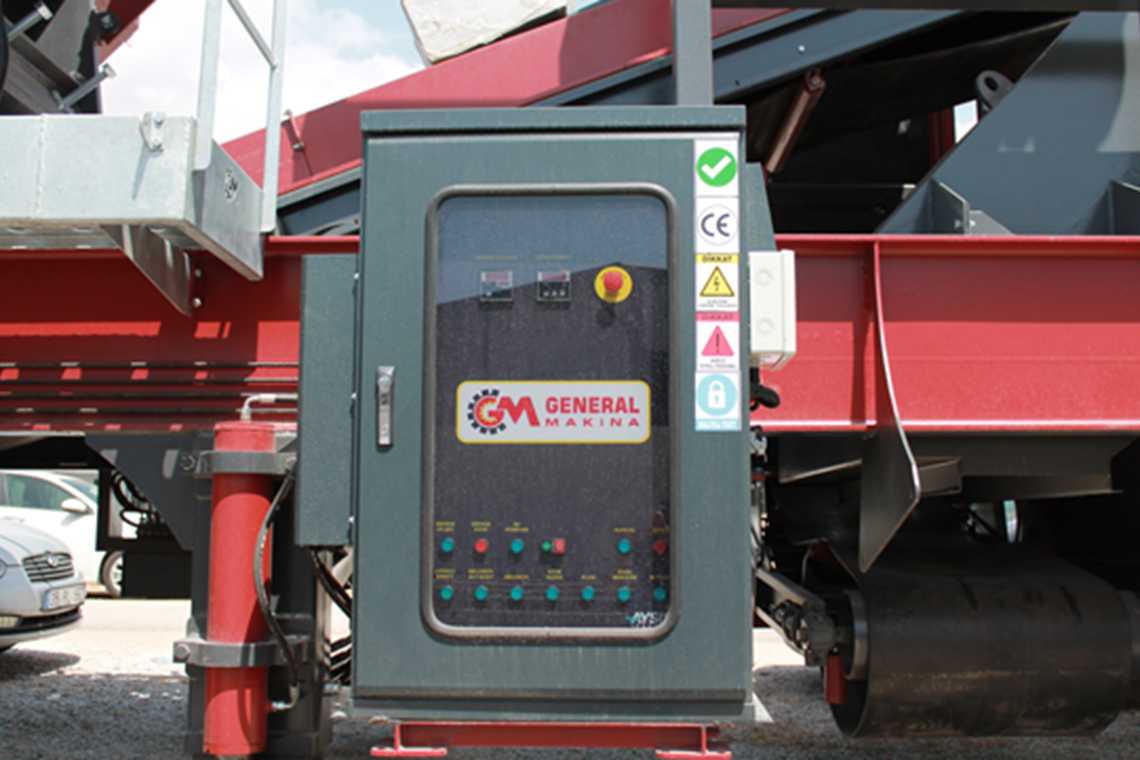

Control Panel System

Mobile Control Panel controls and operates the whole plant, so to speak, it is the brain of the plant.
The performance of the plant equipment and the plant is determined by the mobile control panel.

General features of the Mobile Control Panel,

It is suitable for operation with standard mains or generator energy.
It can operate with 50 hz and 60 hz frequency units.
Emergency stop system and critical situation sound and light warning systems can be added.
Soft startter smart start-up system can be optionally used to save energy in crushers.
With the extra frequency control unit, feeder, conveyor belts and vibrating screen speeds can be optimised.
It is very easy to control the plant with the touch screen control system.
Remote control or internet connected monitoring system can be added.
The outer body of the panel is water and dust proof and there are locks on the control covers.
