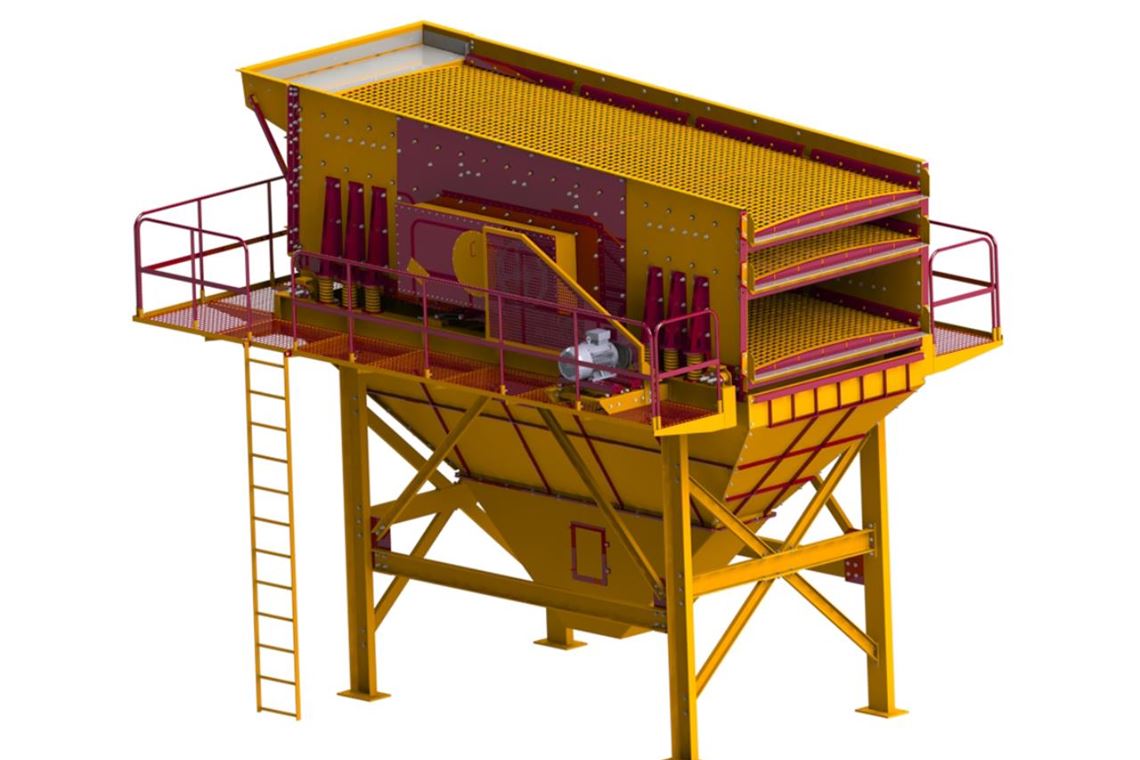

Vibration Control Screens
Equipment: 2-3-4 Layer Vibrating Screens
Production: Completely Bolted and Welded Production
Drive: High Shaft Quality and Bearing Compatibility
Capacity: 100-400 Tons per Hour
Production: Completely Bolted and Welded Production
Drive: High Shaft Quality and Bearing Compatibility
Capacity: 100-400 Tons per Hour
General Mechanical vibration control screens, is the end point in screen design provides the best in your plant with a unique elliptical vibration elimination. High capacity, return loads are less. They do elliptical vibration with three national drive system. This elliptical vibration prevents clogging of the screen eyes. Oval stroke axis angle and size are easily controlled.
General Information
Gallery
Video
Technical Information
| MODEL | SCREEN SIZES(mm) | MOTOR(kW/rpm) | DECK(number) | WEIGHT(kg) |
|---|---|---|---|---|
| GNRTK-1550 | 1500x5000 | 22/1500 | 3 | 12000 |
| GNRTK-2060 | 2000x6000 | 30/1500 | 3 | 16500 |
Get a Quote
