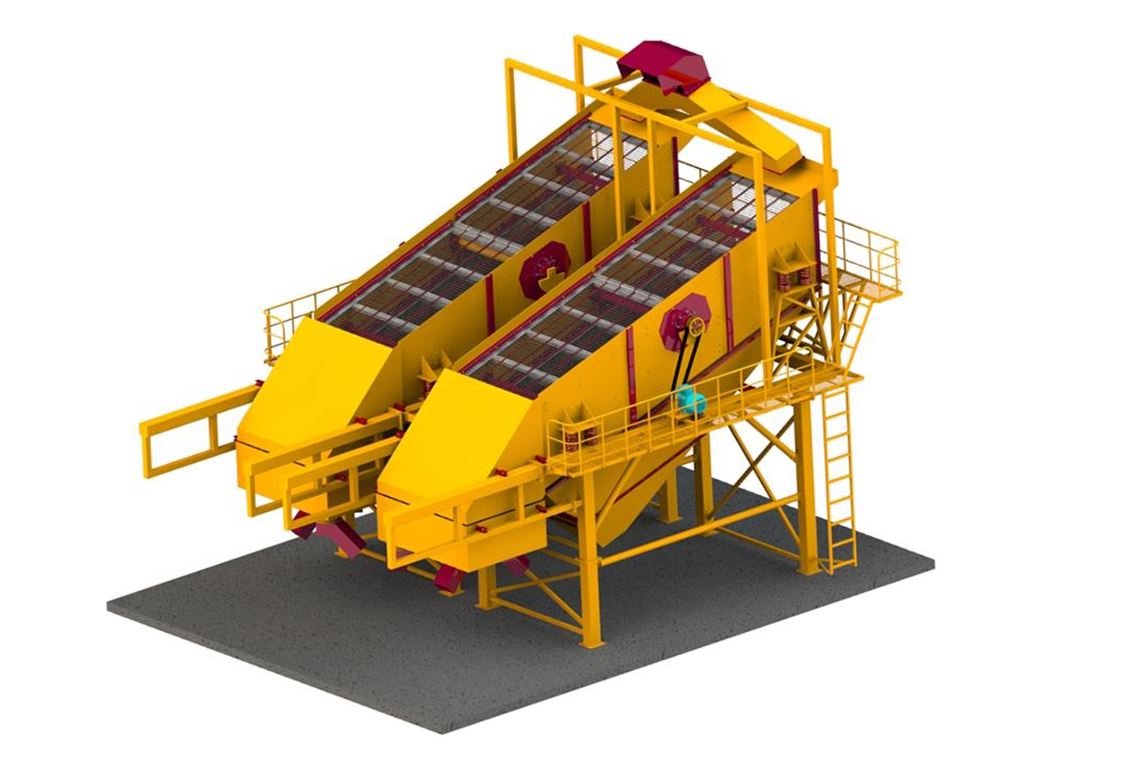

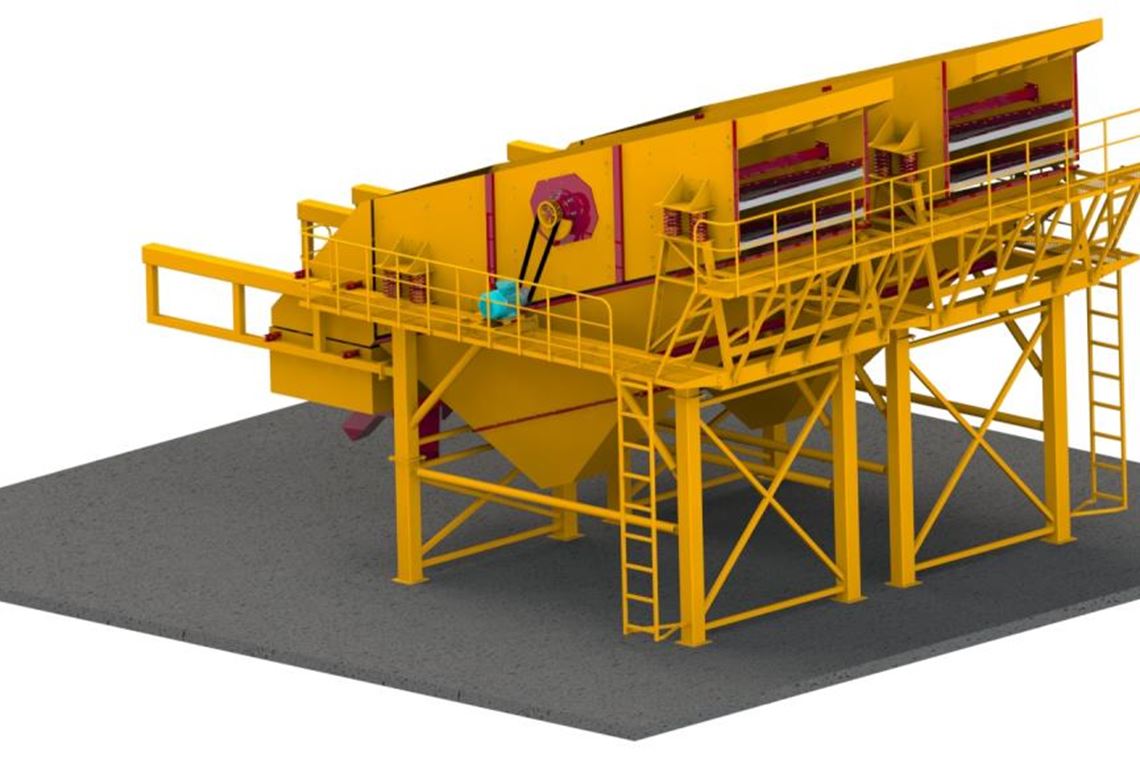

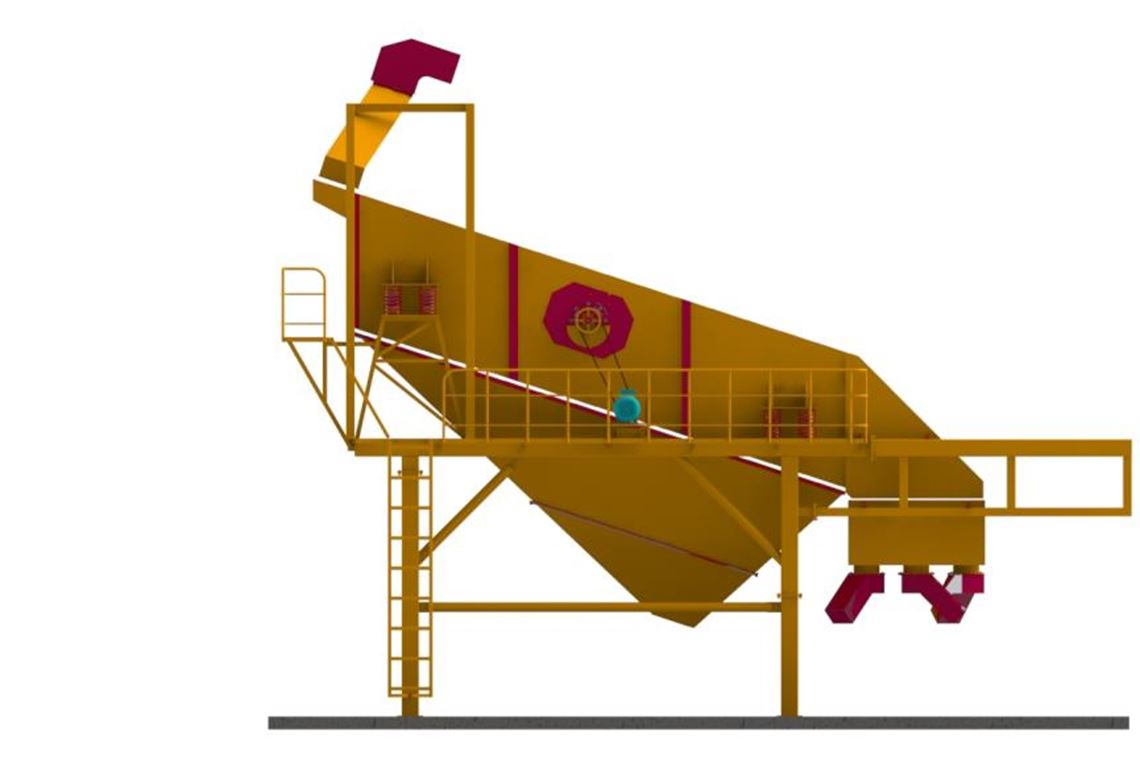

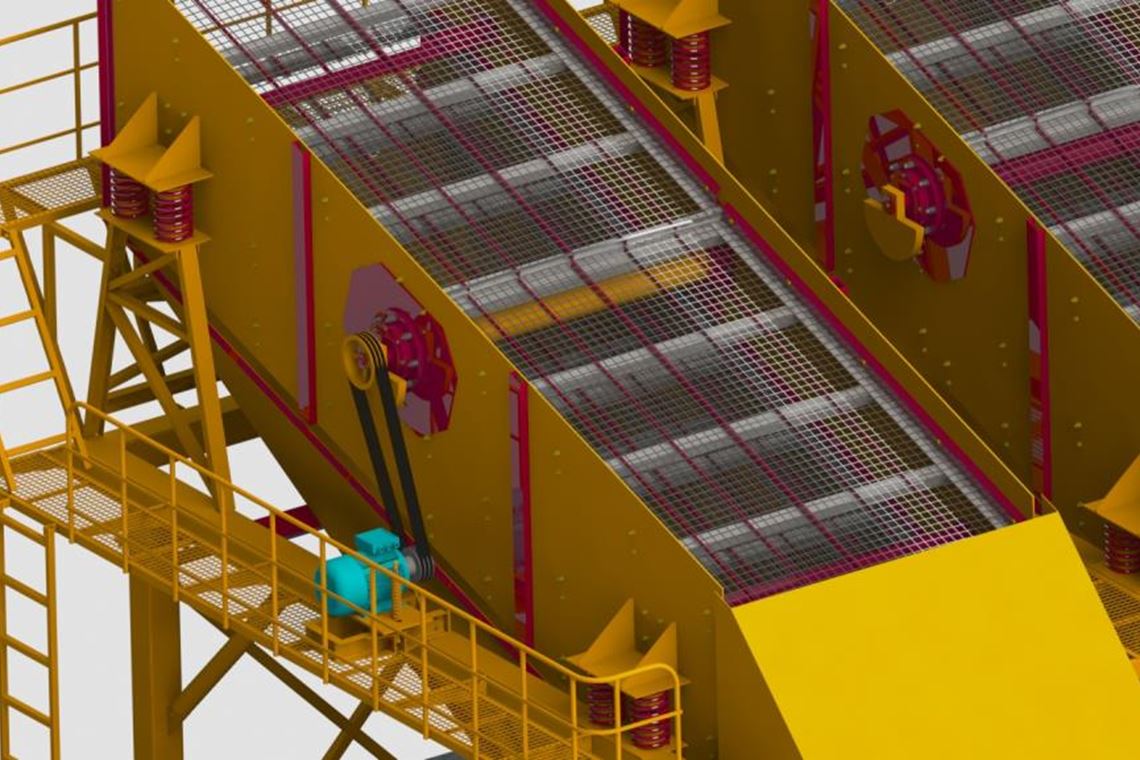

Twin Vibrating Screens
Equipment 2-3-4 Tier Vibrating Screens
Production Fully Bolted and Weld-Free Construction
Drive High-Quality Shaft Quality and Bearing Bearing Compatibility
Capacity 100-500 Tonnes Per Hour
Production Fully Bolted and Weld-Free Construction
Drive High-Quality Shaft Quality and Bearing Bearing Compatibility
Capacity 100-500 Tonnes Per Hour

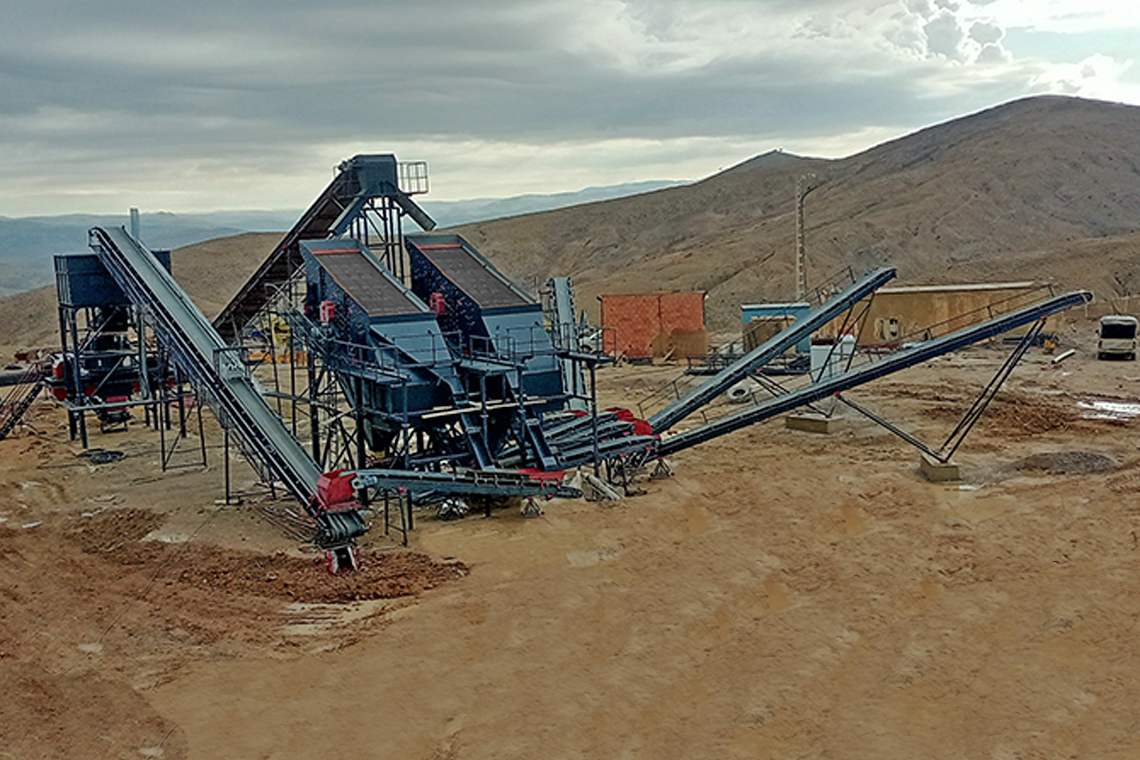

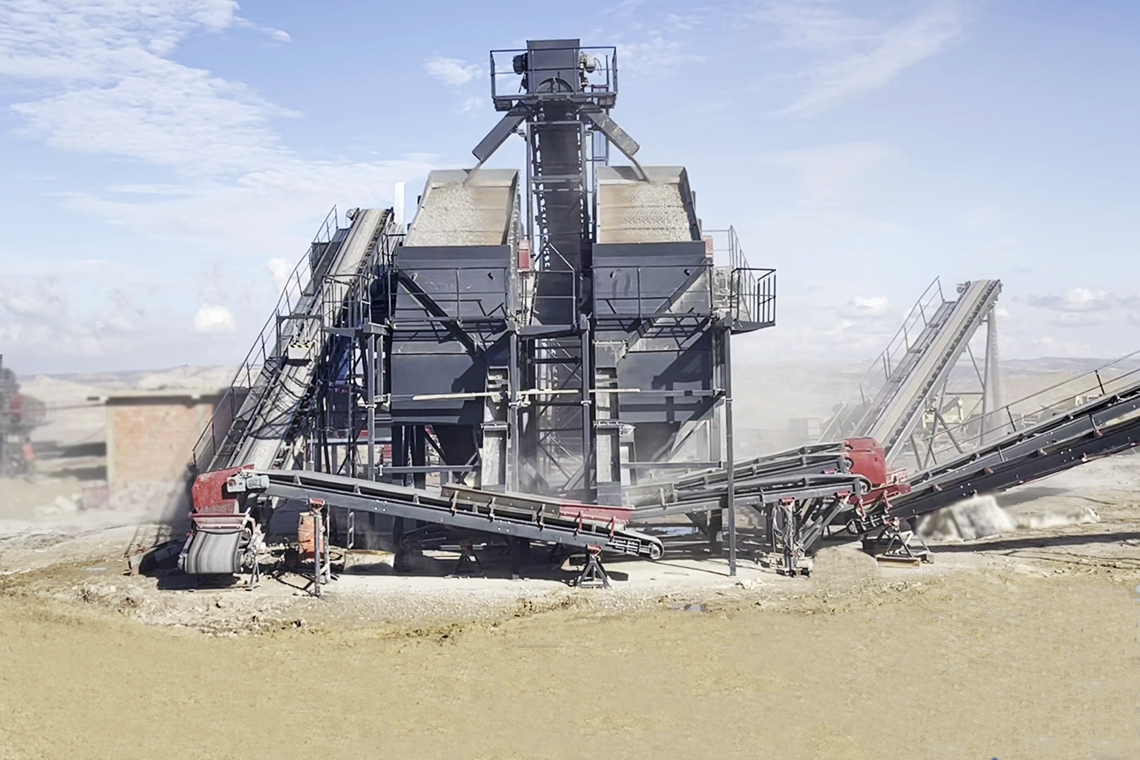

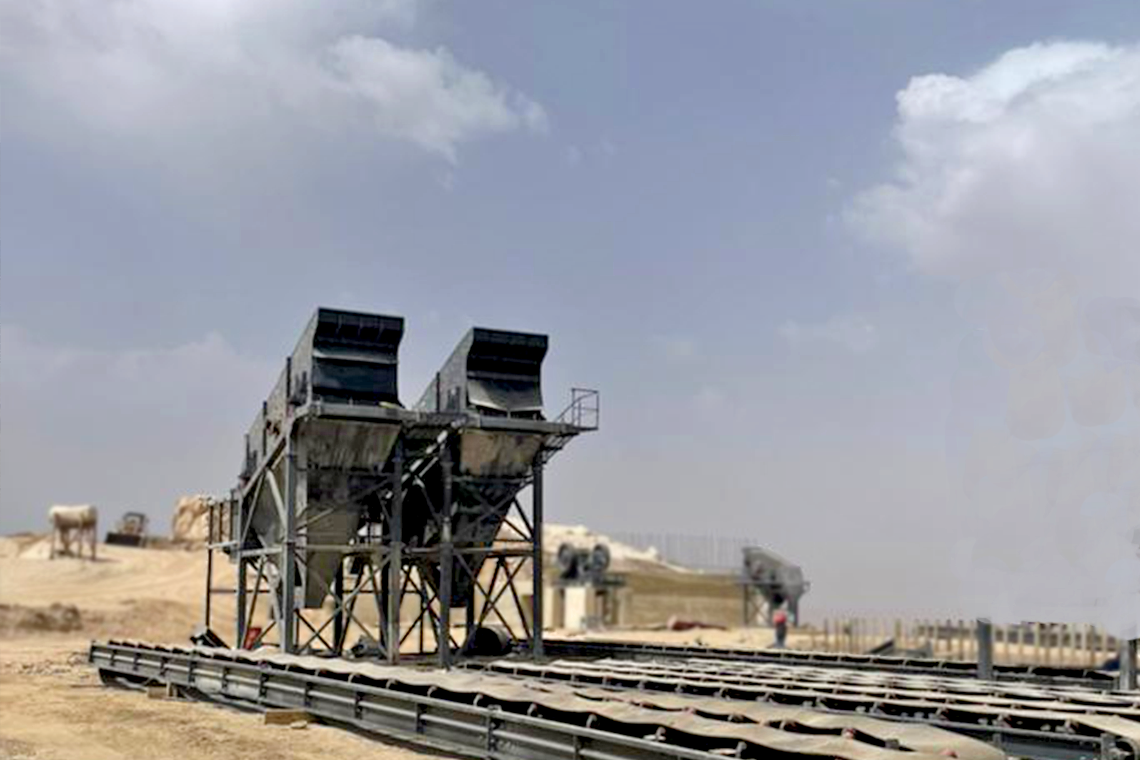

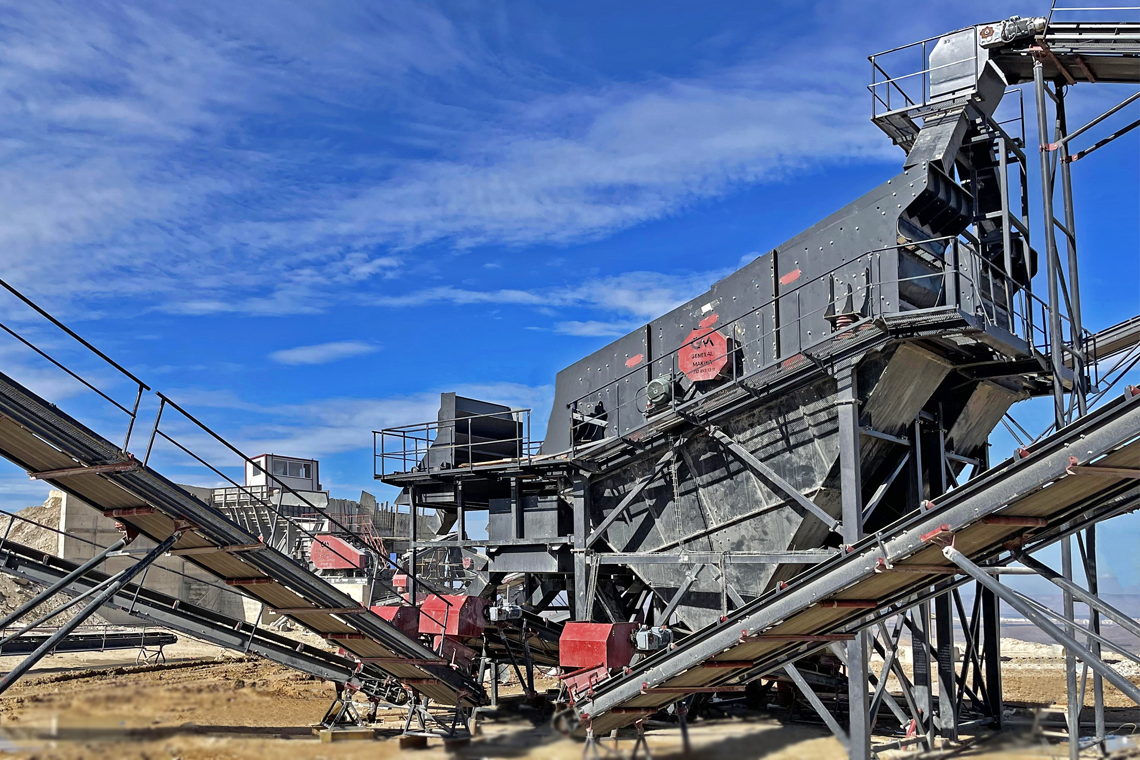

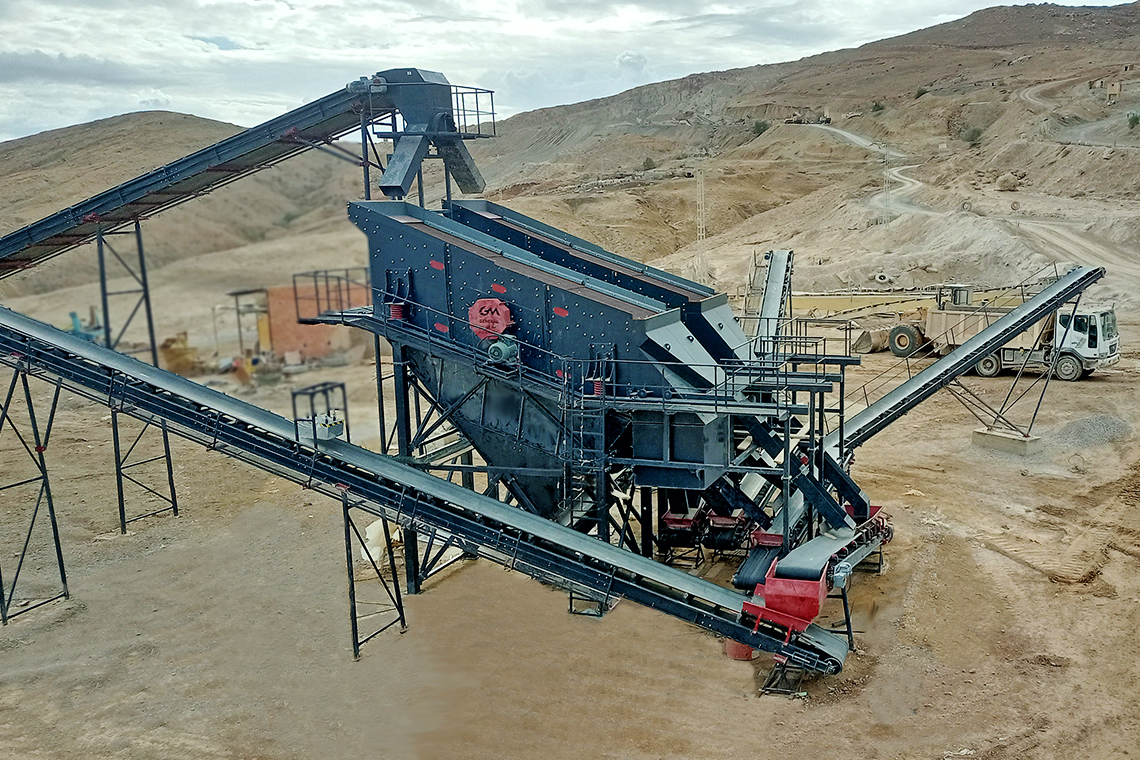

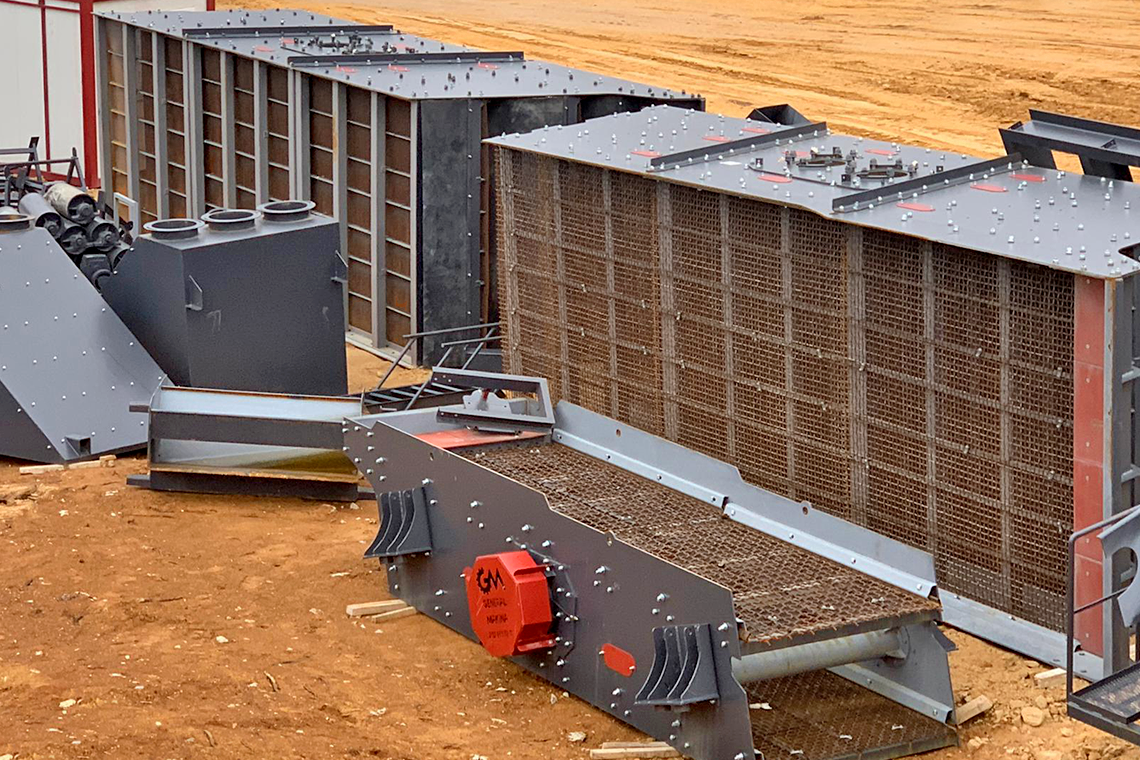

Vibrating twin sieve used in crushing and screening plants to obtain more products.
The performance of vibrating screens is an important factor in fixed crusher plants with an hourly production of hundreds of tons.
The sieves that can screen without drowning in such large capacity facilities are twin sieves.
Vibrating Twin Screens are produced with the assurance of General Makina.
General Information
Gallery
Video
Technical Information
| MODEL | SCREEN SIZE (mm) | MOTOR (kW/rpm) | WEIGHT (kg) | |||
|---|---|---|---|---|---|---|
| 1 DECK | 2 DECK | 3 DECK | 4 DECK | |||
| GNR 1020 | 1000X2000 | 4 /1500 | 1100 | 1200 | 1800 | - |
| GNR 1025 | 1000x2500 | 4 /1500 | 1500 | 1800 | 2200 | - |
| GNR 1030 | 1000X3000 | 5,5 /1500 | 1500 | 1700 | 2200 | 2700 |
| GNR 1230 | 1200X3000 | 7,5 /1500 | - | 2200 | 2700 | 3100 |
| GNR 1540 | 1500X4000 | 11 /1500 | - | 5400 | 6200 | 6600 |
| GNR 1650 | 1600X5000 | 15 /1500 | - | 6400 | 7600 | 8100 |
| GNR 2050 | 2000x5000 | 18,5 /1500 | - | 8350 | 8700 | 11000 |
| GNR 2060 | 2000X6000 | 18,5 /1500 | - | - | 13000 | 12700 |
| GNR 2460 | 2400X6000 | 22 /1500 | - | - | 14500 | 15200 |
| GNR 2470 | 2400X7000 | 30 /1500 | - | - | - | 16800 |
